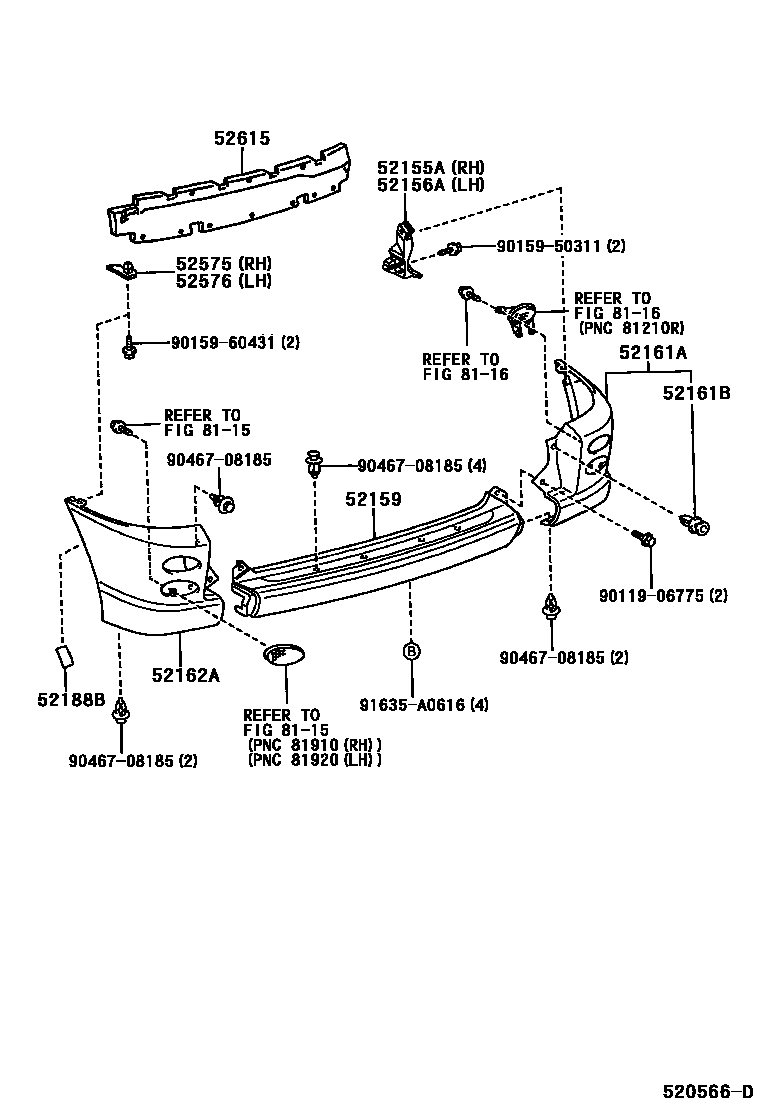

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52010iNCP2#,NLP2#199908-200211

main52155-52050iNCP2#,NLP2#200211-200509

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52010iNCP2#,NLP2#199908-200211

main52156-52050iNCP2#,NLP2#200211-200509

52159COVER, REAR BUMPER

main52159-52050iNCP2#,NLP2#199908-200211

main52159-52220iNCP2#,NLP2#200211-200509

52161APIECE, REAR BUMPER, RH

main52150-52090iNCP2#,NLP2#..LHD199908-200211

main52150-52110iNCP2#,NLP2#..RHD199908-200211

main52161-52100iNCP2#,NLP2#..LUNA,STD200211-200509

UNPAINTED

main52161-52110-A1iNCP2#,NLP2#200211-200509

WHITE,068

main52161-52110-B0iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

main52161-52110-B1iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

main52161-52110-C0iNCP2#,NLP2#200211-200509

BLACK MC.,209

main52161-52110-D0iNCP2#,NLP2#200211-200509

SUPER RED 5,3P0

main52161-52110-F1iNCP2#,NLP2#200211-200509

CHAMPAGNE ME.,583

main52161-52110-G0iNCP2#,NLP2#200211-200509

DARK GREEN MC.,6R4

main52161-52110-H0iNCP2#,NLP2#200211-200509

AQUA M.M.,774

main52161-52110-J0iNCP2#,NLP2#200211-200509

BLUE MC.,8M6

52161BPIECE, REAR BUMPER

main76817-52010iNCP2#,NLP2#199908-200211

52162APIECE, REAR BUMPER, LH

main52160-52010iNCP2#,NLP2#..RHD199908-200211

main52160-52030iNCP2#,NLP2#..LHD199908-200211

main52162-52090iNCP2#,NLP2#..LUNA,STD200211-200509

UNPAINTED

main52162-52100-A1iNCP2#,NLP2#200211-200509

WHITE,068

main52162-52100-B0iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

main52162-52100-B1iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

main52162-52100-C0iNCP2#,NLP2#200211-200509

BLACK MC.,209

main52162-52100-D0iNCP2#,NLP2#200211-200509

SUPER RED 5,3P0

main52162-52100-F0iNCP2#,NLP2#200211-200509

CHAMPAGNE ME.,583

main52162-52100-G0iNCP2#,NLP2#200211-200509

DARK GREEN MC.,6R4

main52162-52100-H0iNCP2#,NLP2#200211-200509

AQUA M.M.,774

main52162-52100-J0iNCP2#,NLP2#200211-200509

BLUE MC.,8M6

52188BSPACER, REAR BUMPER MOUNTING

main52188-52020×2iNCP2#,NLP2#199911-200211

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52040iNCP2#,NLP2#199908-200211

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52050iNCP2#,NLP2#199908-200211

52615ABSORBER, REAR BUMPER ENERGY

main52615-52020iNCP2#,NLP2#200002-200211

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

9011906775

main90119-06775

9015950311

main90159-50311

9015960431

main90159-60431

9046708185

main90467-08185

91635A0616

main91635-A0616

17 parts on this diagram · 2 diagrams in section
