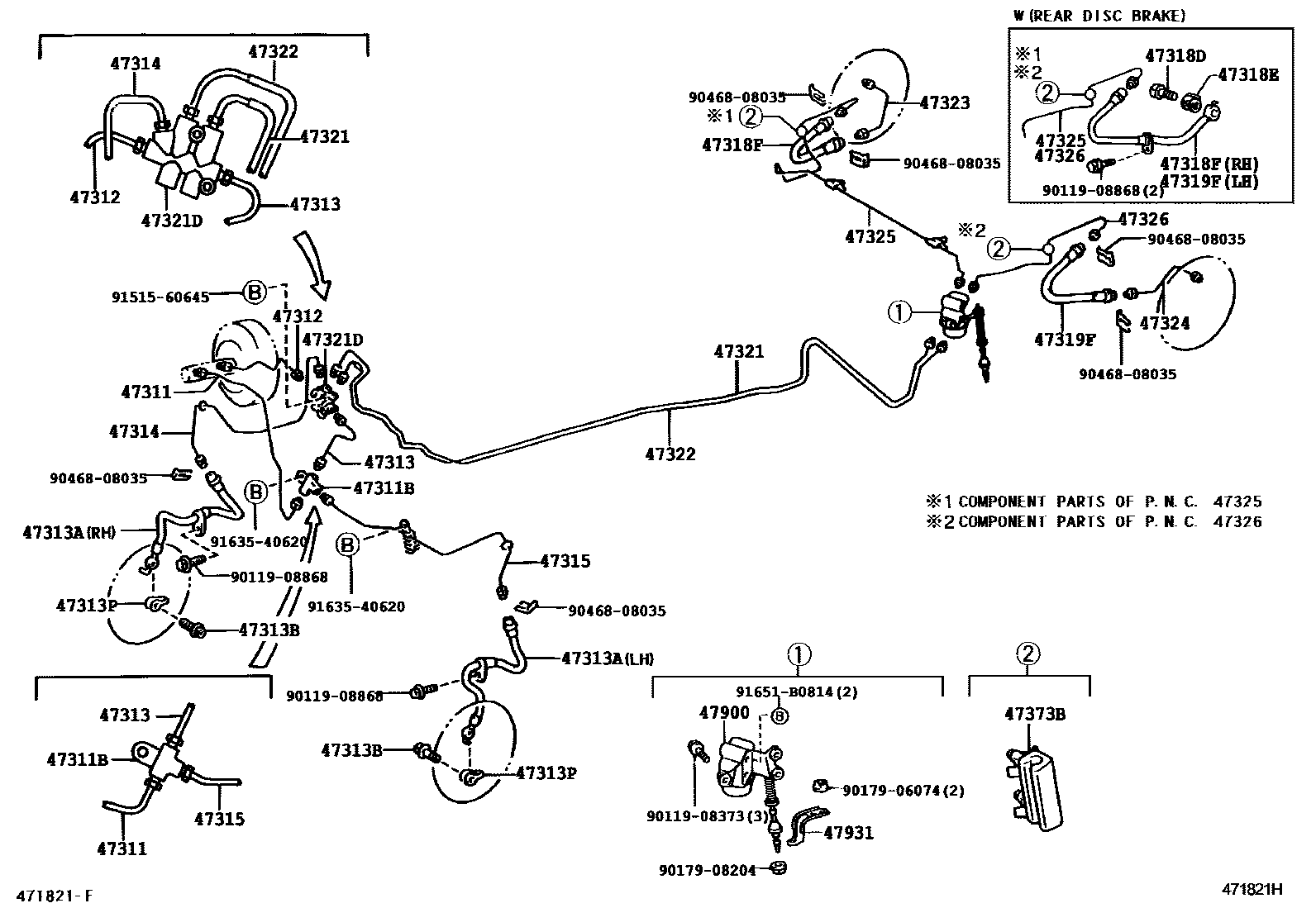

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(VSC) 0010 1W(ABS) 0011 1W(VSC) 0012 1W(ABS) 0013 1W(ABS) 0014 1W(ABS) 0015 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-52011iNLP2#..RHD200110-200111

W(ABS)

main47311-52021iNCP2#..LHD199908-200109

W(ABS)

main47311-52022iNCP2#,NLP2#..LHD200109-200211

W(ABS)

main47311-52031iNCP2#..LHD199908-200211

main47311-52042iNLP2#..RHD200110-200111

main47311-52051iNCP2#..RHD..(4FC,5F)199908-200110

main47311-52052iNCP2#..RHD..(4FC,5F)200110-200211

main47311-52061iNCP2#..RHD..(4FC,5F)200212-200509

W(ABS)

main47311-52081iNCP20..4HC200008-200211

main47311-52110iNLP2#..RHD200111-200112

W(ABS)

main47311-52111iNLP2#..RHD200212-200509

W(ABS)

main47311-52120iNLP2#..RHD200111-200211

main47311-52130iNLP2#..LHD200110-200211

main47311-52140iNCP21..RHD200301-200509

W(VSC)

main47311-52150iNCP21..LHD200301-200509

W(VSC)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10235iNCP20..4HC200008-200211

main90413-10286iNCP2#,NLP2#..RHD..(4FC,5F)200211-200212

47312TUBE, FRONT BRAKE, NO.2

main47312-52011iNLP2#..RHD200212-200509

W(ABS)

main47312-52021iNCP2#,NLP2#..LHD200211-200509

W(ABS)

main47312-52031iNCP2#..LHD200211-200212

main47312-52041iNLP2#..RHD200211-200212

main47312-52051iNCP2#..RHD..(4FC,5F)199908-200211

main47312-52061iNCP2#..RHD..(4FC,5F)199908-200211

W(ABS)

main47312-52081iNCP20..4HC200211-200509

main47312-52120iNCP21..RHD200301-200509

W(VSC)

main47312-52130iNLP2#..LHD200110-200211

main47312-52140iNCP21..LHD200301-200509

W(VSC)

47313TUBE, FRONT BRAKE, NO.3

main47313-52011iNCP2#,NLP2#..RHD..(4FC,5F)199908-200112

W(ABS)

main47313-52021iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

main47313-52041iNCP20..4HC200211-200509

main47313-52060iNLP2#..RHD200112-200211

W(ABS)

main47313-52070iNCP21..RHD200301-200509

W(VSC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C31iNCP2#,NLP2#200211-200308

RH

main90947-02C32iNCP2#,NLP2#199908-200211

LH

main90947-02D76iNCP2#,NLP2#200308-200509

RH

main90947-02D77iNCP2#,NLP2#200308-200509

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP2#,NLP2#199908-200211

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP2#,NLP2#199908-200211

47314TUBE, FRONT BRAKE, NO.4

main47314-52011iNCP2#,NLP2#..RHD..(4FC,5F); NCP20..4HC200211-200509

W(ABS)

main47314-52021iNCP2#..RHD..(4FC,5F)199908-200108

main47314-52022iNCP2#,NLP2#..RHD..(4FC,5F)200108-200111

main47314-52031iNCP2#,NLP2#..LHD199908-200211

main47314-52041iNCP2#..LHD199908-200108

W(ABS)

main47314-52042iNCP2#,NLP2#..LHD200108-200211

W(ABS)

main47314-52070iNCP2#,NLP2#..RHD..(4FC,5F)200211-200212

main47314-52080iNCP21..LHD200301-200303

W(VSC)

main47314-52081iNCP21..LHD200303-200509

W(VSC)

47315TUBE, FRONT BRAKE, NO.5

main47315-52011iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(ABS)

main47315-52021iNCP2#,NLP2#..LHD200211-200212

main47315-52031iNCP2#..RHD..(4FC,5F)199908-200108

main47315-52032iNCP2#..RHD..(4FC,5F)200108-200110

main47315-52041iNCP2#,NLP2#..LHD199908-200211

W(ABS)

main47315-52051iNCP20..4HC200211-200509

main47315-52060iNLP2#..RHD200111-200112

main47315-52061iNCP2#,NLP2#..RHD..(4FC,5F)200211-200212

main47315-52070iNCP21..RHD200301-200405

W(VSC)

main47315-52071iNCP21..RHD200405-200509

W(VSC)

main47315-52080iNCP21..LHD200301-200303

W(VSC)

main47315-52081iNCP21..LHD200303-200509

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iNLP2#..LHD;NCP2#..4FC,5F199908-200211

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iNLP2#..LHD;NCP2#..4FC,5F199908-200211

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C30iNCP2#,NLP2#200211-200509

main90947-02C35iNCP2#199908-200004

W(REAR DISC BRAKE)

main90947-02C75iNLP2#..LHD;NCP2#..4FC,5F200010-200211

W(REAR DISC BRAKE)

main90947-02K02iNCP2#..4FC,5F200004-200010

W(REAR DISC BRAKE)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C30iNCP2#,NLP2#200211-200509

main90947-02C36iNCP2#199908-200004

W(REAR DISC BRAKE)

main90947-02C76iNLP20..LHD;NCP20,21..4FC,5F200211-200509

W(REAR DISC BRAKE)

main90947-02J38iNCP2#..4FC,5F200004-200010

W(REAR DISC BRAKE)

47321TUBE, REAR BRAKE, NO.1

main47321-52041iNCP2#199908-200010

main47321-52042iNCP2#200010-200211

main47321-52051iNCP2#..4FC,5F200211-200212

W(LSPV)

main47321-52131iNLP2#200110-200211

W(LSPV)

main47321-52141iNLP2#200211-200509

main47321-52190iNCP21..RHD200301-200509

W(VSC)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iNCP20199908-200001

W(ABS),AISIN SEIKI

main90413-10205iNCP20199908-200001

main90413-10293iNCP2#,NLP2#..4FC,5F200001-200211

main90904-12088iNCP2#,NLP2#200001-200211

W(ABS)

47322TUBE, REAR BRAKE, NO.2

main47322-52041iNCP2#199908-200010

main47322-52042iNCP2#200010-200211

main47322-52051iNCP2#..4FC,5F200211-200212

W(LSPV)

main47322-52110iNCP21..RHD200301-200509

W(VSC)

main47322-52131iNLP2#200211-200212

W(LSPV)

main47322-52141iNLP2#200110-200211

47323TUBE, REAR BRAKE, NO.3

main47323-52021iNCP2#199908-200010

main47323-52022iNCP2#,NLP2#200010-200202

main47323-52090iNCP2#,NLP2#200202-200211

47324TUBE, REAR BRAKE, NO.4

main47324-52021iNCP2#199908-200010

main47324-52022iNCP2#,NLP2#200010-200202

main47324-52080iNCP2#,NLP2#200202-200211

47325TUBE, REAR BRAKE, NO.5

main47325-52011iNCP2#..4FC,5F199908-200010

main47325-52012iNCP2#,NLP2#..4FC,5F200010-200211

47326TUBE, REAR BRAKE, NO.6

main47326-52011iNCP2#..4FC,5F199908-200010

main47326-52012iNCP2#,NLP2#..4FC,5F200010-200211

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52030×2iNCP2#199908-200010

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-52011iNCP2#199908-200004

main47900-52040iNCP2#..4FC,5F200004-200107

main47900-52060iNCP2#,NLP2#..4FC,5F200107-200111

main47900-52100iNCP2#,NLP2#..4FC,5F200111-200211

47931BRACKET, LOAD SENSING VALVE

main47931-52010iNCP2#,NLP2#..4FC,5F199908-200211

9011908373

main90119-08373

9011908868

main90119-08868

9017906074

main90179-06074

9017908204

main90179-08204

9046808035

main90468-08035

9151560645

main91515-60645

9163540620

main91635-40620

91651B0814

main91651-B0814

31 parts on this diagram · 15 diagrams in section
