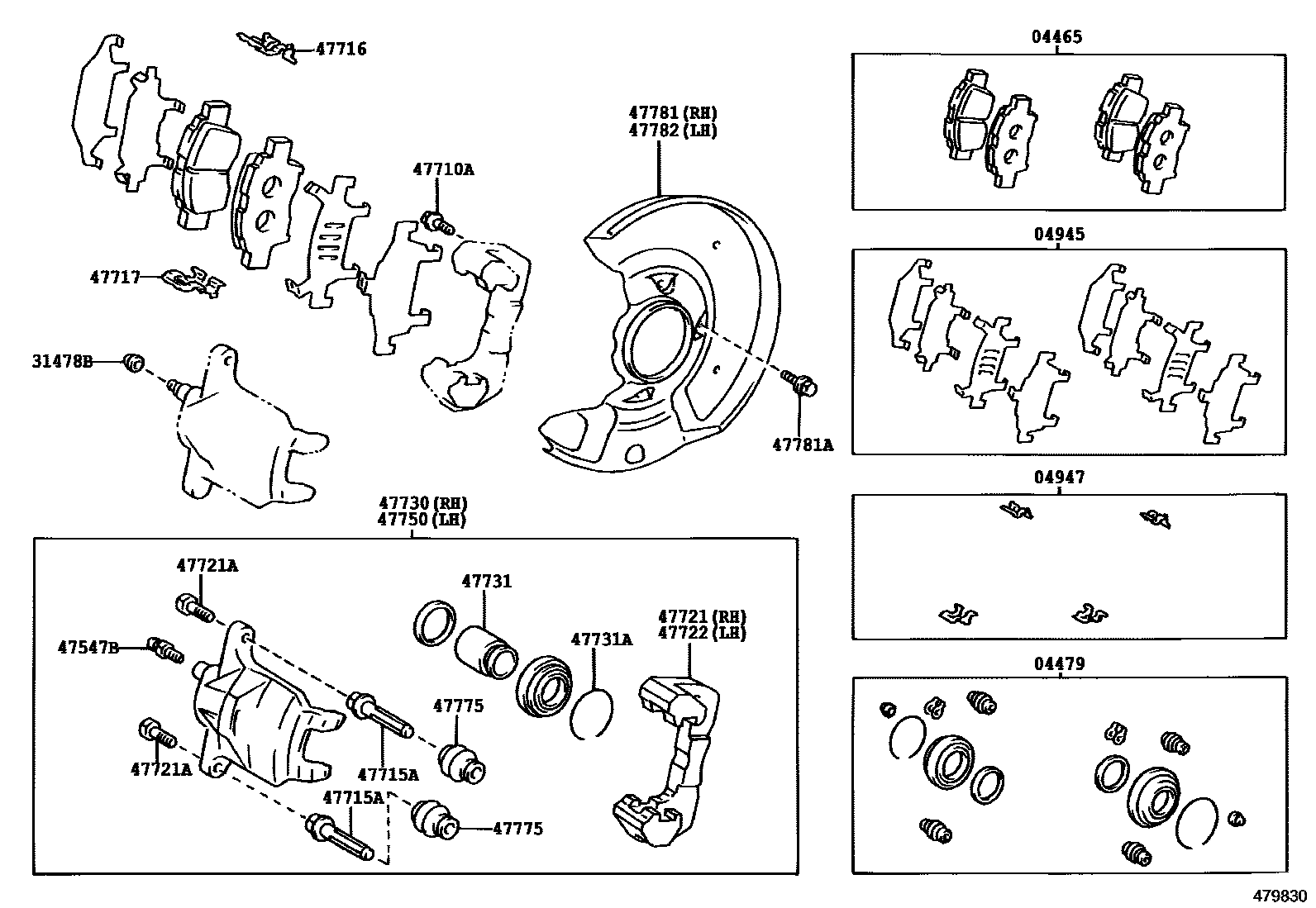

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-17100iNCP2#,NLP2#..4FC,5F200010-200112

MARK NBK PN540H

main04465-17140iNCP2#,NLP2#..4FC,5F200211-200509

MARK NBK PN540H

main04465-52010iNCP2#..4FC,5F199908-200010

MARK NBK PN540H

main04465-52021iNCP20..4HC200008-200104

MARK AISIN PC543,W/O(MARK):REFER TO ILLUSTRATION

main04465-52022iNCP20..4HC200211-200501

MARK AISIN PC543,MARK A OR B:REFER TO ILLUSTRATION

main04465-52230iNCP20..4HC200501-200509

MARK AISIN PC543,MARK H:REFER TO ILLUSTRATION

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52020iNCP2#,NLP2#199908-200211

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP2#,NLP2#..4FC,5F200211-200509

main04945-52060iNCP20..4HC200501-200509

MARK H (PNC 04465) :REFER TO ILLUSTRATION

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iNCP2#,NLP2#199908-200211

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP2#,NLP2#199908-200211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP2#,NLP2#199908-200211

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP2#,NLP2#199908-200211

*12-1.25PX27.5-23.8

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP2#,NLP2#199908-200211

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52020×2iNCP2#,NLP2#200211-200509

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52020×2iNCP2#,NLP2#199908-200211

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52020iNCP2#,NLP2#199908-200211

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP2#,NLP2#199908-200211

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52020iNCP2#,NLP2#199908-200211

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52020iNCP2#,NLP2#199908-200211

47731PISTON, FRONT DISC BRAKE

main47731-52010×2iNCP2#,NLP2#199908-200211

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iNCP2#,NLP2#199908-200211

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52020iNCP2#,NLP2#199908-200211

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNCP2#,NLP2#199908-200211

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52020iNCP2#,NLP2#199908-200211

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP2#,NLP2#199908-200211

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52020iNCP2#,NLP2#199908-200211

21 parts on this diagram · 2 diagrams in section
