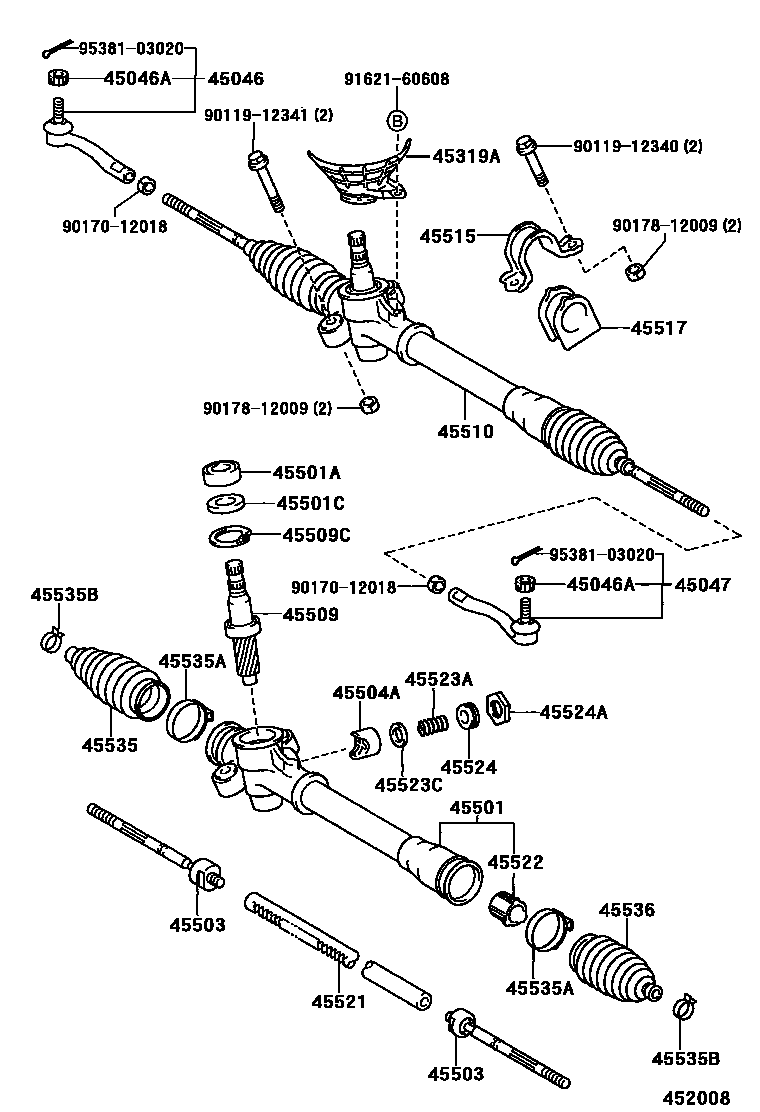

FRONT STEERING GEAR & LINK

0001 1W(MANUAL STEERING) 0002 1W(MANUAL STREEING) 0003 1W(POWER STEERING) 0004 1W(POWER STEERING) 0005 1W(POWER STEERING) 0006 1W(POWER STEERING) 0007 1 0008 1 0009 1

45046END SUB-ASSY, TIE ROD, RH

main45046-59025iNCP20199908-199911

main45046-59026iNCP2#,NLP2#199911-200211

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP2#,NLP2#199908-200211

45047END SUB-ASSY, TIE ROD, LH

main45047-59025iNCP20199908-199911

main45047-59026iNCP2#,NLP2#199911-200211

45319AINSULATOR, STEERING GEAR HEAT

main45319-52010iNCP2#..RHD..(LUNA,STD)199908-200211

45501HOUSING SUB-ASSY, STEERING RACK

main45501-52011iNCP2#..RHD..(LUNA,STD)199908-200211

main45501-52020iNCP2#..LHD..(LUNA,STD)199908-200211

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-17009iNCP2#..LUNA,STD199908-200211

45501CSPACER(FOR STEERING RACK HOUSING)

main90561-20003iNCP2#..LUNA,STD199908-200211

45503END SUB-ASSY, STEERING RACK

main45503-59045×2iNCP2#,NLP2#199908-200211

45504AGUIDE SUB-ASSY, RACK

main45504-16060iNCP2#..LHD199908-200211

W(POWER STEERING)

main45504-52010iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

main45504-52020iNCP2#..RHD199908-200211

W(POWER STEERING)

45509PINION SUB-ASSY, STEERING

main45509-52010iNCP2#..RHD..(LUNA,STD)199908-200211

main45509-52020iNCP2#..LHD..(LUNA,STD)199908-200211

45509CRING, HOLE SNAP(FOR STEERING PINION)

main90521-35002iNCP2#..LUNA,STD199908-200211

45510GEAR ASSY, STEERING

main45510-52011iNCP2#..RHD..(LUNA,STD)199908-200211

main45510-52020iNCP2#..LHD..(LUNA,STD)199908-200211

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP2#,NLP2#199908-200211

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP2#; NLP2#200211-200509

W(POWER STEERING)

main45517-52020iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

45521RACK, STEERING

main45521-52010iNCP2#..RHD..(LUNA,STD)199908-200211

main45521-52020iNCP2#..LHD..(LUNA,STD)199908-200211

45522BUSH, STEERING RACK

main45522-52010iNCP2#..LUNA,STD199908-200211

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-29050iNCP2#..LUNA,STD199908-200211

45523CSPACER(FOR RACK GUIDE)

main45542-12010iNCP2#..LHD199908-200211

W(POWER STEERING)

main45542-52010iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

45524CAP, STEERING RACK GUIDE SPRING

main45524-16050iNCP2#..LHD199908-200211

W(POWER STEERING)

main45524-52010iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

main45524-52020iNCP2#..RHD199908-200211

W(POWER STEERING)

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90177-30002iNCP2#..LUNA,STD199908-200211

45535BOOT, STEERING RACK, NO.1

main45535-52010iNCP2#..LHD; NLP2#..LHD200211-200509

W(POWER STEERING)

main45535-52030iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

main45535-52040iNCP2#..RHD199908-200211

W(POWER STEERING)

45535ACLAMP(FOR STEERING RACK BOOT)

main90904-67039×2iNCP2#..LUNA,STD199908-200211

45535BCLIP(FOR STEERING RACK BOOT)

main90466-17001×2iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

main90466-17002×2iNLP2#..RHD200110-200211

main90467-17021×2iNCP2#..LHD; NLP2#..LHD200211-200509

W(POWER STEERING)

45536BOOT, STEERING RACK, NO.2

main45535-52010iNCP2#..LHD199908-200211

W(POWER STEERING)

main45535-52030iNCP2#..LUNA,STD199908-200211

W(MANUAL STEERING)

main45535-52040iNCP2#..RHD; NLP2#..RHD200211-200509

W(POWER STEERING)

9011912340

main90119-12340

9011912341

main90119-12341

9017012018

main90170-12018

9017812009

main90178-12009

9162160608

main91621-60608

9538103020

main95381-03020

30 parts on this diagram · 9 diagrams in section
