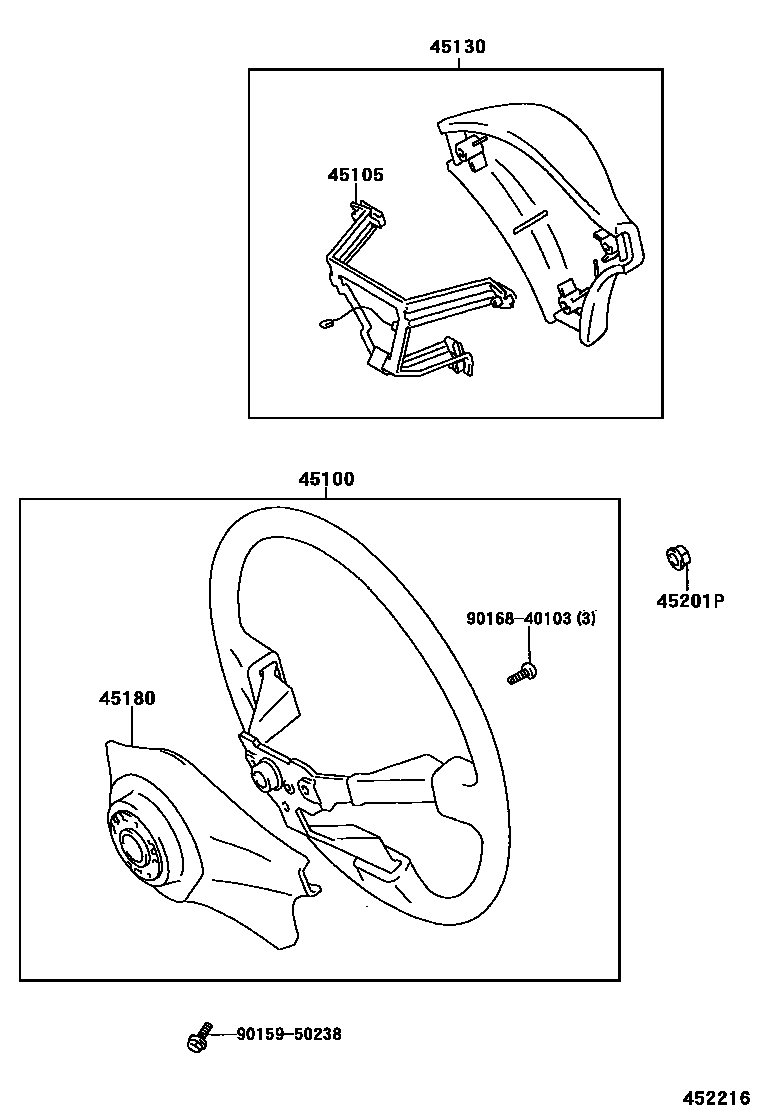

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE,W(*80)

45100WHEEL ASSY, STEERING

main45100-13060-B0iNCP20,21,NLP20200211-200509

3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1#

main45100-16450-B0iNCP22,NLP22200003-200211

3-SPOKE,URETHANE,SHADOW GRAY,TRIM9#

main45100-16450-H0iNCP22,NLP22200003-200211

3-SPOKE,URETHANE,FRENCH TURQUOISE,TRIM7#

main45100-2B690-B1iNCP2#,NLP2#199908-200211

3-SPOKE,LEATHER,SHADOW GRAY,TRIM9#

main45100-2B690-H0iNCP2#,NLP2#199908-200211

3-SPOKE,LEATHER,FRENCH TURQUOISE,TRIM7#

main45100-52010-B2iNCP20,21,NLP20199908-200211

3-SPOKE,URETHANE,SHADOW GRAY,TRIM9#

main45100-52010-H0iNCP20,21,NLP20199908-200211

3-SPOKE,URETHANE,FRENCH TURQUOISE,TRIM7#

main45100-52070-B1iNCP2#,NLP2#..LUNA,STD200211-200509

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-52110-B0iNCP2#,NLP2#200211-200509

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-16200iNCP22,NLP22200003-200211

45130BUTTON ASSY, HORN

main45130-16360-B0iNCP22,NLP22200003-200211

URETHANE,SHADOW GRAY,TRIM9#

main45130-16360-H0iNCP22,NLP22200007-200211

URETHANE,FRENCH TURQUOISE,TRIM7#

main45130-52020-B2iNCP20199908-200001

SHADOW GRAY,TRIM9#

main45130-52020-H0iNCP20199908-200001

FRENCH TURQUOISE,TRIM7#

main45130-52021-B2iNCP20,21,NLP20200001-200211

SHADOW GRAY,TRIM9#

main45130-52021-H0iNCP20,21,NLP20200001-200211

FRENCH TURQUOISE,TRIM7#

main45130-52030-B0iNCP20199908-200001

LEATHER,SHADOW GRAY,TRIM9#

main45130-52030-H0iNCP20199908-200001

LEATHER,FRENCH TURQUOISE,TRIM7#

main45130-52031-B0iNCP2#200001-200005

LEATHER & W(*80),SHADOW GRAY,TRIM9#

main45130-52031-H0iNCP2#200001-200005

LEATHER & W(*80),FRENCH TURQUOISE,TRIM7#

main45130-52070-B0iNCP2#,NLP2#200005-200211

LEATHER & W(*80),SHADOW GRAY,TRIM9#

main45130-52070-H0iNCP2#,NLP2#200005-200211

LEATHER & W(*80),FRENCH TURQUOISE,TRIM7#

main45130-52201-B0iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

main45130-52210-B0iNCP20,21,NLP20200211-200509

W(AUDIO SWITCH),DK.GRAY,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-16190-B0iNCP22,NLP22200003-200211

SHADOW GRAY,TRIM9#

main45180-16190-H0iNCP22,NLP22200003-200211

FRENCH TURQUOISE,TRIM7#

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP2#,NLP2#200211-200509

9015950238

main90159-50238

9016840103

main90168-40103

7 parts on this diagram · 2 diagrams in section
