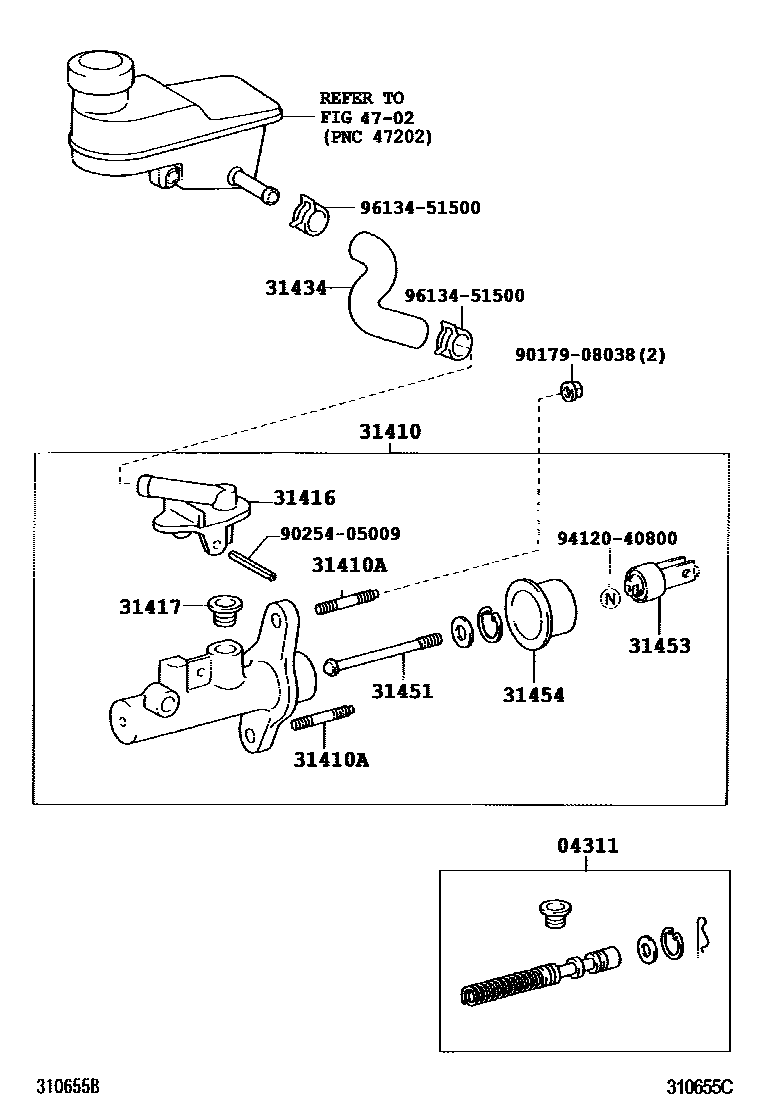

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iNCP2#,NLP2#..5F200211-200509

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52010iNCP2#..5F199908-200109

main31420-52030iNCP2#,NLP2#..5F200211-200509

main31420-52040iNCP21..LHD200304-200509

W(VSC)

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iNCP2#,NLP2#..5F199908-200211

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-52010iNCP2#,NLP2#..5F199908-200211

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iNCP2#,NLP2#..5F199908-200211

31434TUBE, CLUTCH RESERVOIR

main31434-52011iNCP2#,NLP2#..LHD..5F200211-200312

main31434-52020iNCP21..LHD200312-200401

W(VSC)

main31434-52030iNCP2#..RHD..5F200211-200509

main31434-52040iNCP21..LHD200211-200304

W(VSC)

main31434-52090iNLP2#..RHD200110-200211

main31434-52110iNCP21..LHD200304-200312

W(VSC)

main31434-52130iNCP21..LHD200402-200509

W(VSC)

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iNCP2#..5F199908-200109

main31451-52010iNCP2#,NLP2#..5F200109-200211

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iNCP2#,NLP2#..5F199908-200211

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iNCP2#,NLP2#..5F199908-200211

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9613451500

main96134-51500

14 parts on this diagram · 2 diagrams in section
