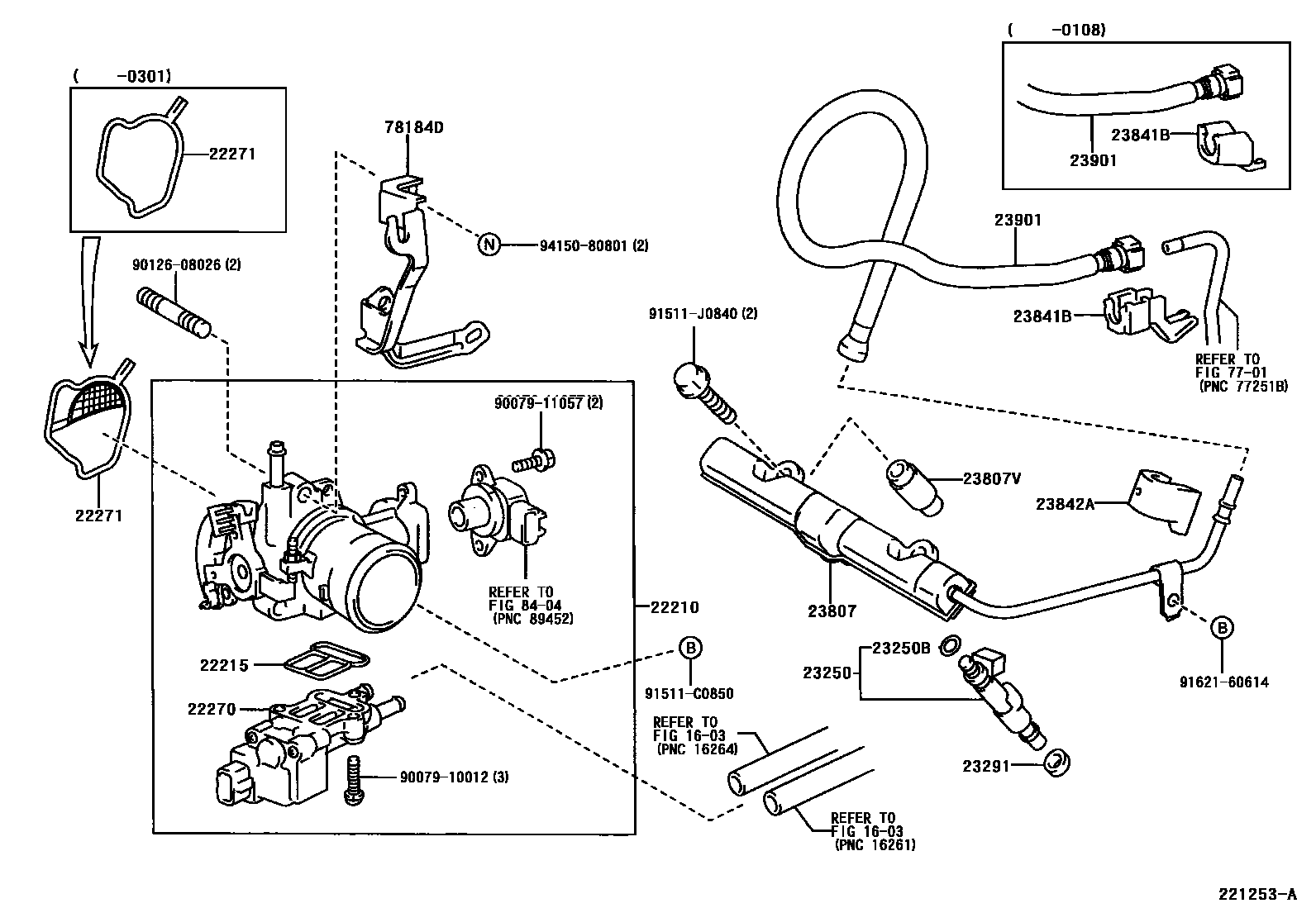

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-21020i1NZFE,2NZFE..NCP2#200211

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1NZFE,2NZFE..NCP2#199908-200211

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-21010i1NZFE,2NZFE..NCP2#199908-200211

main22270-21011i1NZFE,2NZFE..NCP2#200303-200509

22271GASKET, THROTTLE BODY

main22271-21020i1NZFE,2NZFE..NCP2#199908-200211

main22271-21050i1NZFE,2NZFE..NCP2#200301

23250INJECTOR ASSY, FUEL

main23209-21020×4i1NZFE,2NZFE..NCP2#200211

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1NZFE,2NZFE..NCP2#199908-200211

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i1NZFE,2NZFE..NCP2#199908-200211

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21010i1NZFE,2NZFE..NCP2#199908-200211

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE,2NZFE..NCP2#199908-200211

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21020i1NZFE,2NZFE..NCP2#199908-200108

main23841-28010i1NZFE,2NZFE..NCP2#200108-200211

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1NZFE,2NZFE..NCP2#199908-200211

23901TUBE SUB-ASSY, FUEL

main23901-21020i1NZFE,2NZFE..NCP2#199908-200108

main23901-21060i1NZFE,2NZFE..NCP2#200108-200211

7701FUEL TANK & TUBE

→ Go to FIG 77-01

78184DBRACKET, ACCELERATOR CONTROL CABLE

main78184-52011iNCP2#199908-200211

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

main90079-10012

9007911057

main90079-11057

9012608026

main90126-08026

91511C0850

main91511-C0850

91511J0840

main91511-J0840

9162160614

main91621-60614

9415080801

main94150-80801

23 parts on this diagram · 2 diagrams in section
