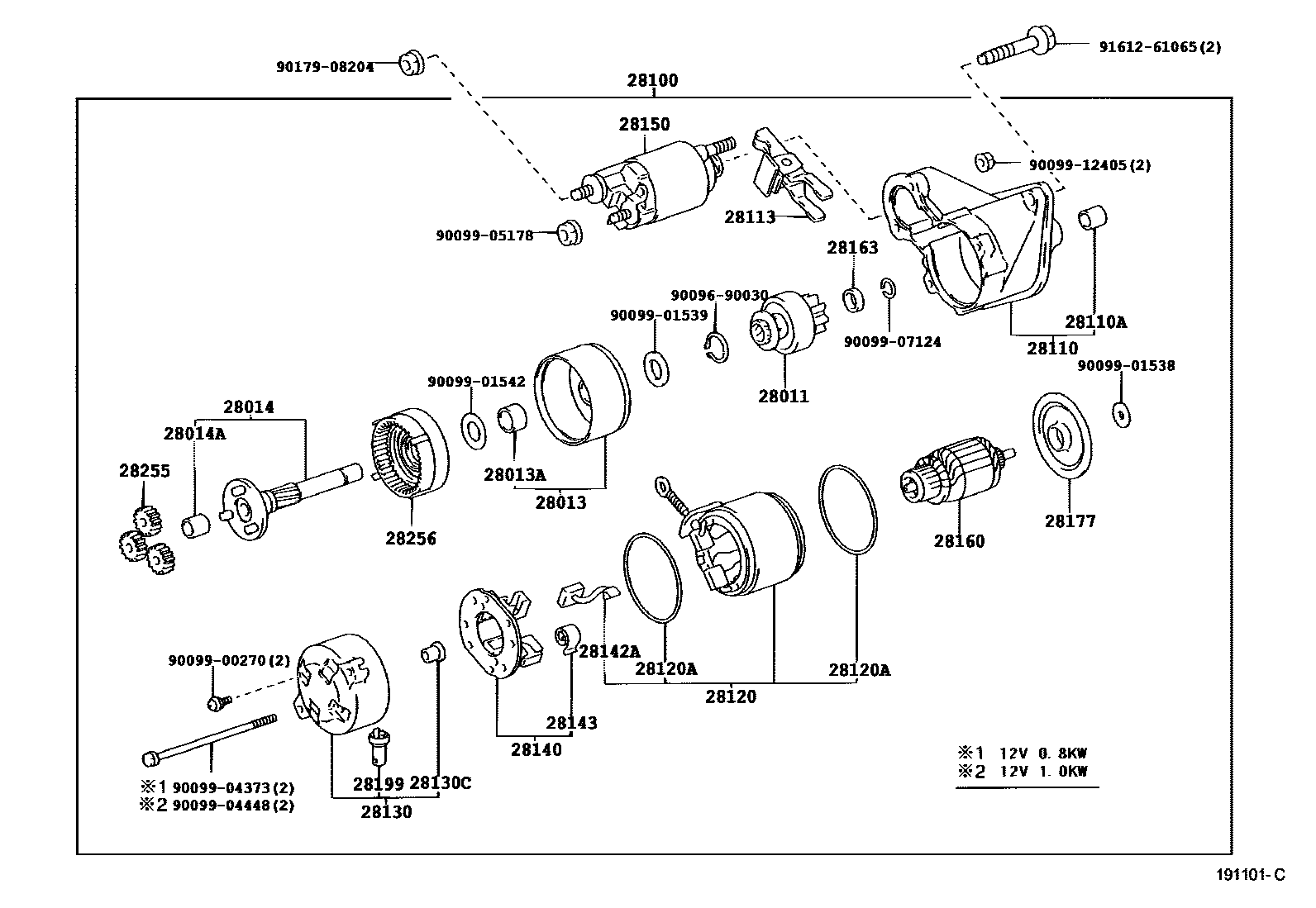

STARTER

0001 112V 0.8KW, 1.0KW 0002 112V 1.4KW 0003 112V 1.4KW 0004 112V 2.0KW 0005 112V 1.6KW 0006 112V 0.8KW, 1.0KW 0007 112V 1.4KW 0008 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-55050i1NDTV..NLP2#200110-200211

12V 1.4KW

main28011-55060i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28011-70020i1NZFE,2NZFE..NCP2#199908-200211

main28011-76070i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i1NZFE,2NZFE..NCP2#199908-200005

main28013-70030i1NZFE,2NZFE..NCP2#200005-200211

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i1NZFE,2NZFE..NCP2#199908-200211

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i1NZFE,2NZFE..NCP2#199908-200211

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i1NZFE,2NZFE..NCP2#199908-200211

28100STARTER ASSY

main28100-21020i1NZFE,2NZFE..NCP2#..5F199908-200211

12V 0.8KW

main28100-21030i1NZFE,2NZFE..NCP2#200211-200509

12V 1.0KW

main28100-21040i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

main28100-21060i2NZFE..NCP20..LHD..4FC200012-200106

12V 1.6KW

main28100-21061i2NZFE..NCP20..LHD..4FC200106-200205

12V 1.6KW

main28100-21062i2NZFE..NCP20..LHD..4FC200211-200509

12V 1.6KW

main28100-33040i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28100-33050i1NDTV..NLP2#200110-200211

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-21020i1NZFE,2NZFE..NCP21,22200003-200211

12V 0.8KW

main28110-21040i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

main28110-21060i2NZFE..NCP20..LHD..4FC200012-200205

12V 1.6KW

main28110-21061i2NZFE..NCP20..LHD..4FC200211-200509

12V 1.6KW

main28110-33040i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28110-33050i1NDTV..NLP2#200110-200211

12V 1.4KW

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i1NZFE,2NZFE..NCP2#199908-200211

28113LEVER, STARTER PINION DRIVE

main28113-70020i1NZFE,2NZFE..NCP2#199908-200211

28120YOKE ASSY, STARTER

main28120-28040i2NZFE..NCP20..LHD..4FC200211-200509

12V 1.6KW

main28120-54380i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28120-66040i1NDTV..NLP2#200211-200509

12V 1.4KW

main28120-70020i1NZFE,2NZFE..NCP2#..5F199908-200211

12V 0.8KW

main28120-70050i1NZFE,2NZFE..NCP2#199908-200211

12V 1.0KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i1NDTV..NLP2#200110-200211

main90099-14092×2i1NZFE,2NZFE..NCP2#199908-200211

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13080i2NZFE..NCP20199908-200211

12V 1.0KW

main28130-21060i2NZFE..NCP20..LHD..4FC200012-200205

12V 1.6KW

main28130-21061i2NZFE..NCP20..LHD..4FC200205-200211

12V 1.6KW

main28130-33040i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28130-46220i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

28130CBEARING, STARTER FLANGE

main90099-10183i1NZFE,2NZFE..NCP2#199908-200211

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28140-70020i1NZFE,2NZFE..NCP2#200211-200509

main28140-76070i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

28142ASTARTER KIT

main28142-70020×2i1NZFE,2NZFE..NCP2#199908-200211

28143SPRING, STARTER BRUSH

main28143-54380×4i1NDTV..NLP2#..LHD200110-200211

12V 2.0KW

main28143-70020×4i1NZFE,2NZFE..NCP2#199908-200211

main90099-17112×4i2NZFE..NCP20..LHD..4FC200003-200012

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2NZFE..NCP2#199908-200211

main28150-33040i1NDTV..NLP2#..LHD200211-200509

12V 2.0KW

main28150-46220i1NDTV..NLP2#200110-200211

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-21060i2NZFE..NCP20..LHD..4FC200012-200211

12V 1.6KW

main28160-54380i1NDTV..NLP2#..LHD200211-200509

12V 2.0KW

main28160-70021i1NZFE,2NZFE..NCP2#..5F199908-200211

12V 0.8KW

main28160-70050i1NZFE,2NZFE..NCP2#199908-200211

12V 1.0KW

main28160-74070i1NDTV..NLP2#200110-200211

12V 1.4KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i1NZFE,2NZFE..NCP2#199908-200211

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2NZFE..NCP20..LHD..4FC200012-200211

12V 1.6KW

main28177-70020i1NZFE,2NZFE..NCP2#199908-200211

12V 0.8KW,1.0KW

28199COVER, STARTER

main28199-46080i1NZFE,2NZFE..NCP2#199908-200211

28255GEAR, PLANET

main28255-28040×3i2NZFE..NCP20..LHD..4FC200012-200211

12V 1.6KW

main28255-70020×3i1NZFE,2NZFE..NCP2#199908-200211

12V 0.8KW,1.0KW

28256GEAR, STARTER INTERNAL

main28256-70020i1NZFE,2NZFE..NCP2#199908-200211

9009690030

main90096-90030

9009900270

main90099-00270

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009904448

main90099-04448

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9017908204

main90179-08204

9161261065

main91612-61065

35 parts on this diagram · 8 diagrams in section
