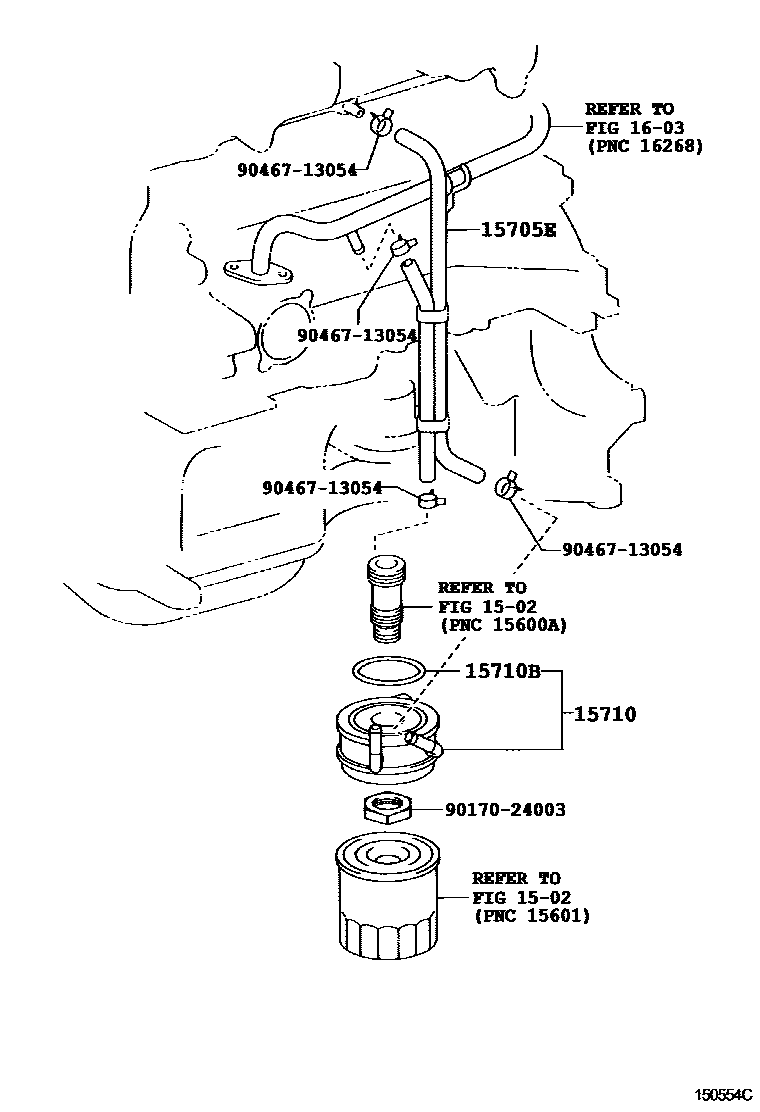

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15705EHOSE SUB-ASSY, OIL COOLER

main15705-33010i1NDTV..NLP2#200110-200211

15710COOLER ASSY, OIL

main15710-33010i1NDTV..NLP2#200110-200211

15710BRING, O(FOR OIL COOLER)

main90301-58002i1NDTV..NLP2#200211-200509

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9017024003

main90170-24003

9046713054

main90467-13054

7 parts on this diagram · 1 diagram in section
