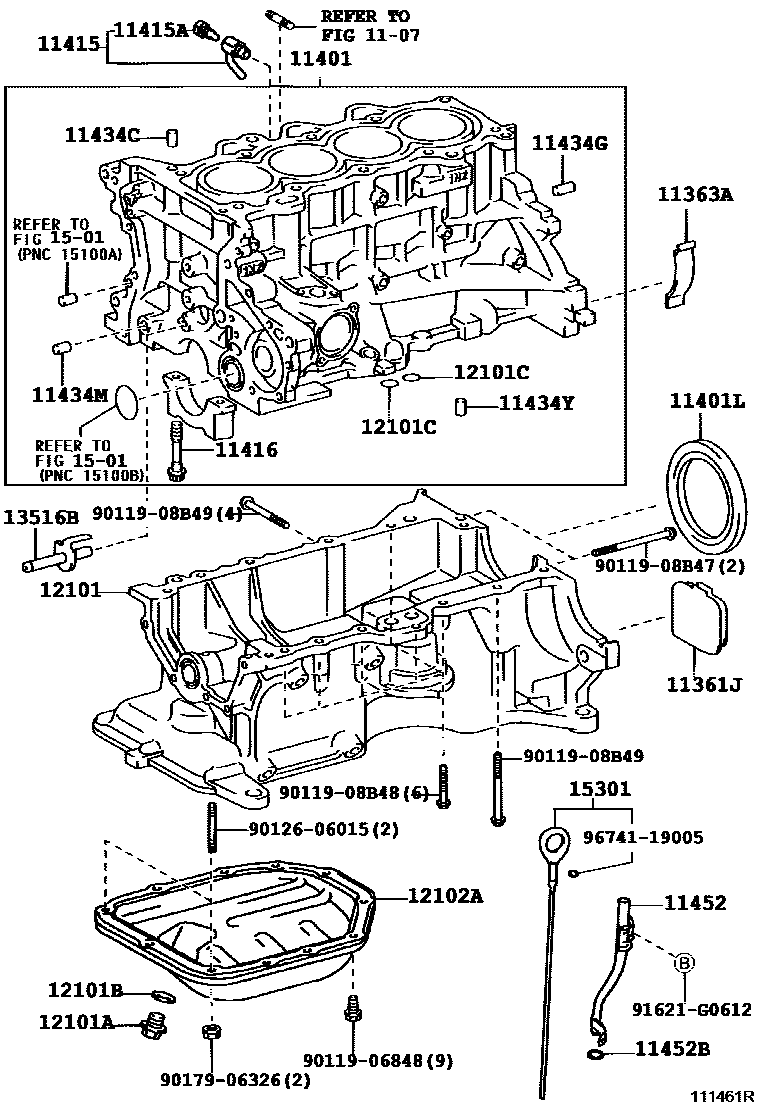

CYLINDER BLOCK

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21010i1NZFE,2NZFE..NCP2#199908-200105

main11361-21011i1NZFE,2NZFE..NCP2#200105-200211

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1N#,2NZFE..NCP2#,NLP2#199908-200211

11401BLOCK SUB-ASSY, CYLINDER

main11401-29675i2NZFE..NCP20,22199908-200211

main11401-29685i1NZFE..NCP21200003-200008

main11401-29686i1NZFE..NCP21200008-200211

main11401-29687i1NZFE..NCP21200212-200304

main11401-29845i2NZFE..NCP20,22200211-200509

main11401-29855i1NZFE..NCP21200304-200509

main11401-39545i1NDTV..NLP2#200110-200211

main11401-39615i1NDTV..NLP2#200310-200404

main11401-39715i1NDTV..NLP2#200404-200505

main11401-39716i1NDTV..NLP2#200505-200509

11401LSEAL, ENGINE REAR OIL

main90311-75016i1N#,2NZFE..NCP2#,NLP2#200211-200509

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFE,2NZFE..NCP2#199908-200211

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZFE,2NZFE..NCP2#199908-200211

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125×10i1NZFE,2NZFE..NCP2#200211

main90910-02147×10i1NDTV..NLP2#200110-200211

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i1N#,2NZFE..NCP2#,NLP2#199908-200211

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i1N#,2NZFE..NCP2#,NLP2#199908-200211

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE,2NZFE..NCP2#199908-200211

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120×2i1N#,2NZFE..NCP2#,NLP2#200211

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE,2NZFE..NCP2#199908-200211

main11452-33010i1NDTV..NLP2#200110-200211

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1N#,2NZFE..NCP2#,NLP2#199908-200211

12101PAN SUB-ASSY, OIL

main12111-21030i2NZFE..NCP20199908-200001

main12111-21031i1NZFE,2NZFE..NCP2#200001-200008

main12111-21032i1NZFE,2NZFE..NCP2#200008-200104

main12111-21033i1NZFE,2NZFE..NCP2#200104-200211

main12111-33020i1NDTV..NLP2#200110-200211

main12111-33050i1NDTV..NLP2#200211

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1N#,2NZFE..NCP2#,NLP2#199908-200211

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1N#,2NZFE..NCP2#,NLP2#199908-200211

12101CRING, O(FOR OIL PAN)

main96722-24020×2i1N#,2NZFE..NCP2#,NLP2#199908-200211

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1N#,2NZFE..NCP2#,NLP2#199908-200211

13516BJET, OIL

main13516-21010i1NZFE,2NZFE..NCP2#199908-200211

main13516-21020i1NDTV..NLP2#200211-200509

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE,2NZFE..NCP2#199908-200211

main15301-33020i1NDTV..NLP2#200211

9011906848

main90119-06848

9011908B47

main90119-08B47

9011908B48

main90119-08B48

9011908B49

main90119-08B49

9012606015

main90126-06015

9017906326

main90179-06326

91621G0612

main91621-G0612

9674119005

main96741-19005

30 parts on this diagram · 2 diagrams in section
