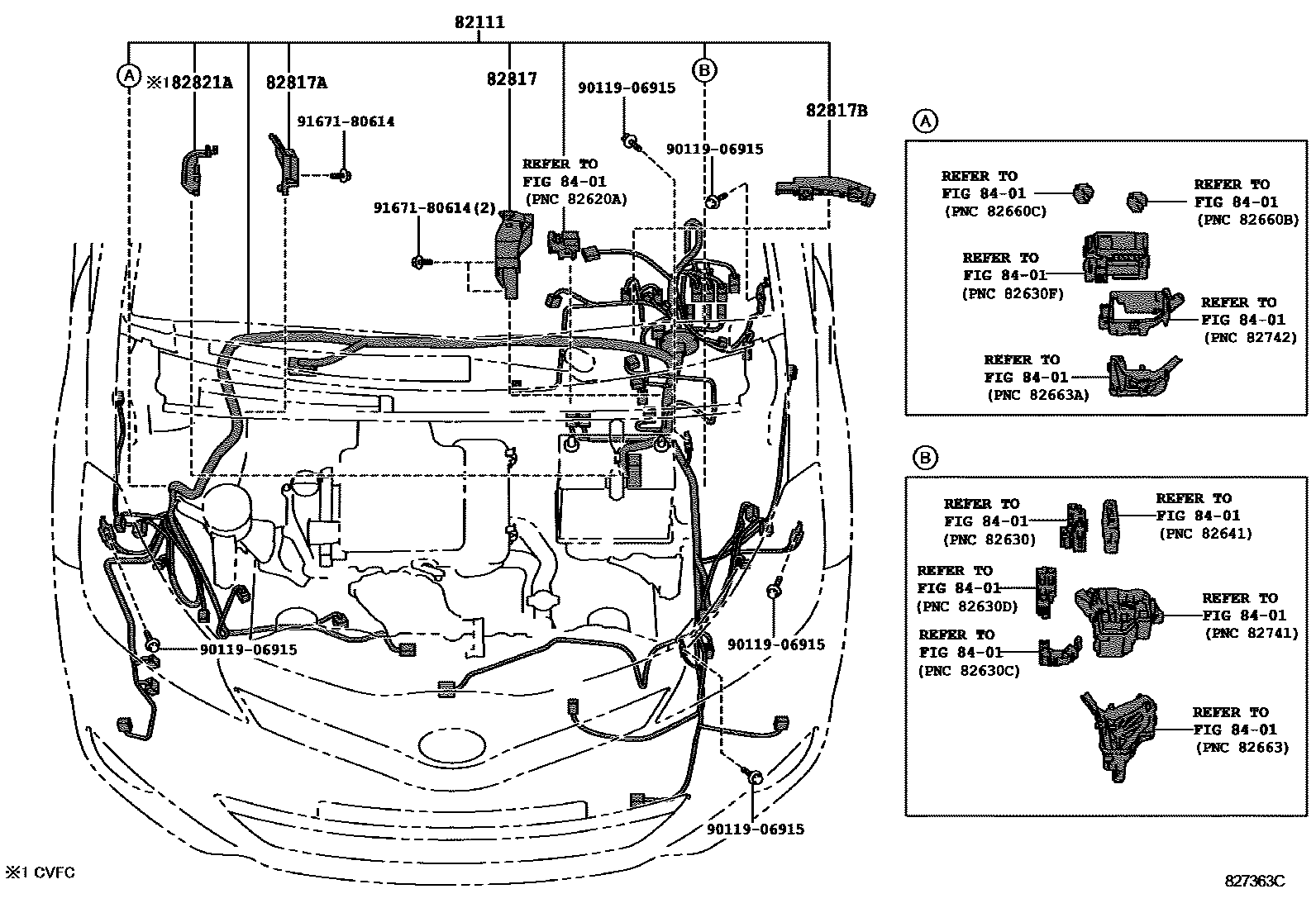

82111WIRE, ENGINE ROOM MAIN

main82111-5CF90iKSP130..LHD201108-201208

main82111-5CG70iKSP130..RHD201108-201208

main82111-5CG10supersedes 82111-5CG40iNSP130..LHD..6F201108-201208

WITHOUT(STOP & START SYSTEM)

main82111-5CG30supersedes 82111-5CG50iNSP130..LHD..CVFC201108-201208

WITHOUT(STOP & START SYSTEM)

main82111-5CG90supersedes 82111-5CJ20iNSP130..RHD..6F201108-201208

WITHOUT(STOP & START SYSTEM)

main82111-5CJ00supersedes 82111-5CJ30iNSP130..RHD..CVFC201108-201209

WITHOUT(STOP & START SYSTEM)

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52A20iKSP130,NSP130201108

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-52C00iKSP130,NSP130201108

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-52B70iKSP130,NSP130..LHD201108-201208

82821ACOVER, CONNECTOR

main82821-52240iNSP130..LHD..CVFC201108-201208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9167180614

main91671-80614

8 parts on this diagram · 14 diagrams in section
