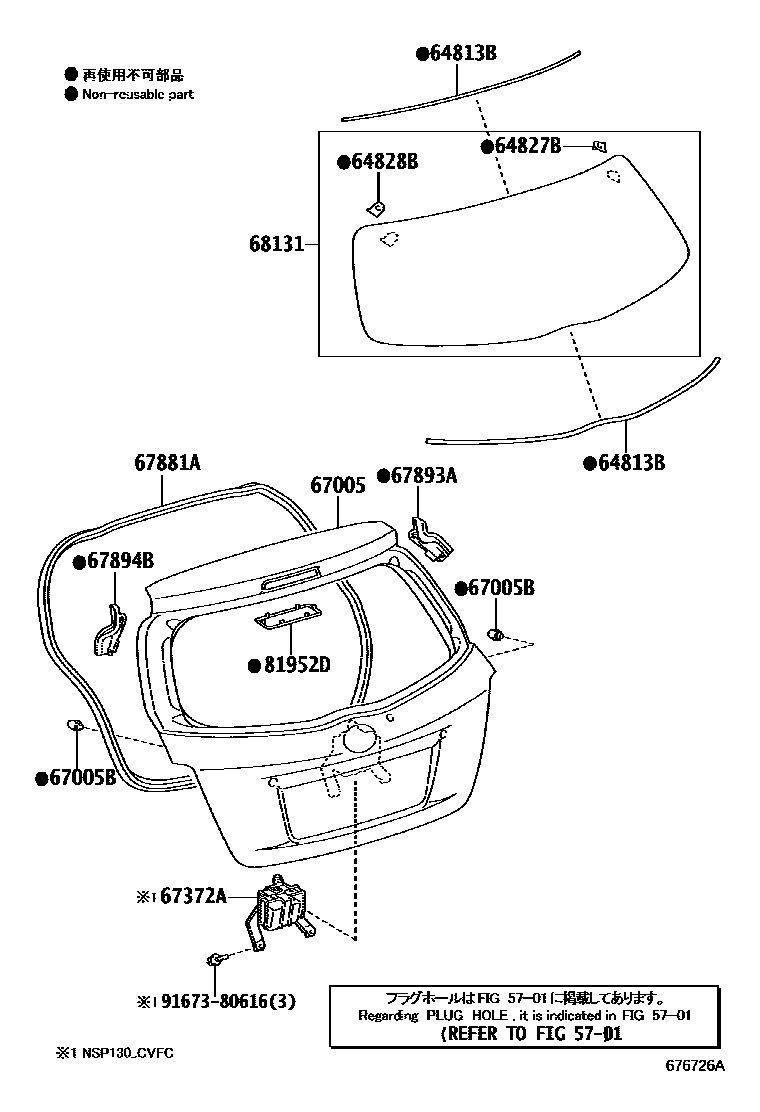

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iKSP130,NSP130201108

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52090iKSP130,NSP130201108

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52090iKSP130,NSP130201108

67005PANEL SUB-ASSY, BACK DOOR

main67005-52C20iKSP130,NSP130201108-201407

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146iKSP130,NSP130201108

67372AWEIGHT, BACK DOOR

main67372-52030iNSP130..CVFC201108-201404

sub67372-52031

main67372-52040iNSP130201404-201407

sub67372-52041

67881AWEATHERSTRIP, BACK DOOR

main67881-52180iKSP130,NSP130201108-201209

sub67881-52210

main67881-52210iNSP130201210

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52090iKSP130,NSP130201108-201404

sub67893-52091

main67893-52091iNSP130201404-201407

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52090iKSP130,NSP130201108-201404

sub67894-52091

main67894-52091iNSP130201404-201407

68131GLASS, BACK DOOR

main68105-52600iKSP130,NSP130201108

*UVCEHT,T=3.1,GREEN

81952DCOVER, REAR LAMP

main81952-52020iKSP130,NSP130201108-201407

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
