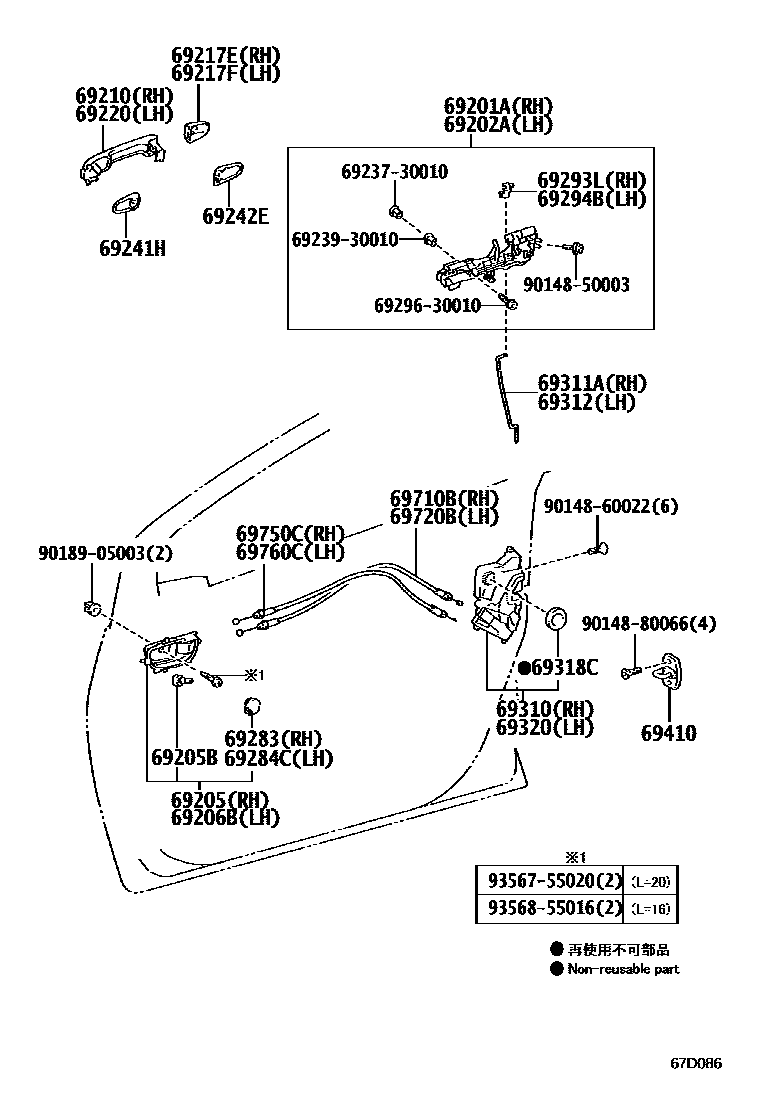

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
ENTRY GRADE (EURO),BLACK,TRIM1#
BLACK,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#
BLACK,TRIM1#
ENTRY GRADE (EURO),BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.,ENTRY GRADE (EURO)&POWER DOOR LOCK-W(*DRS:DOUBLE LOCK),KEY CYLINDER:W(*DRS)
NO PAINT REQ.
NO PAINT REQ.,ENTRY GRADE (EURO)
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK,ENTRY GRADE (EURO)&POWER DOOR LOCK-W(*DRS:DOUBLE LOCK),KEY CYLINDER:W(*DRS)
BLACK
BLACK,ENTRY GRADE (EURO)
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK,ENTRY GRADE (EURO)
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.,ENTRY GRADE (EURO)&POWER DOOR LOCK-W(*DRS:DOUBLE LOCK),KEY CYLINDER:W(*DRS)
NO PAINT REQ.
NO PAINT REQ.,ENTRY GRADE (EURO)
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
9356855016
main93568-55016
34 parts on this diagram · 1 diagram in section
