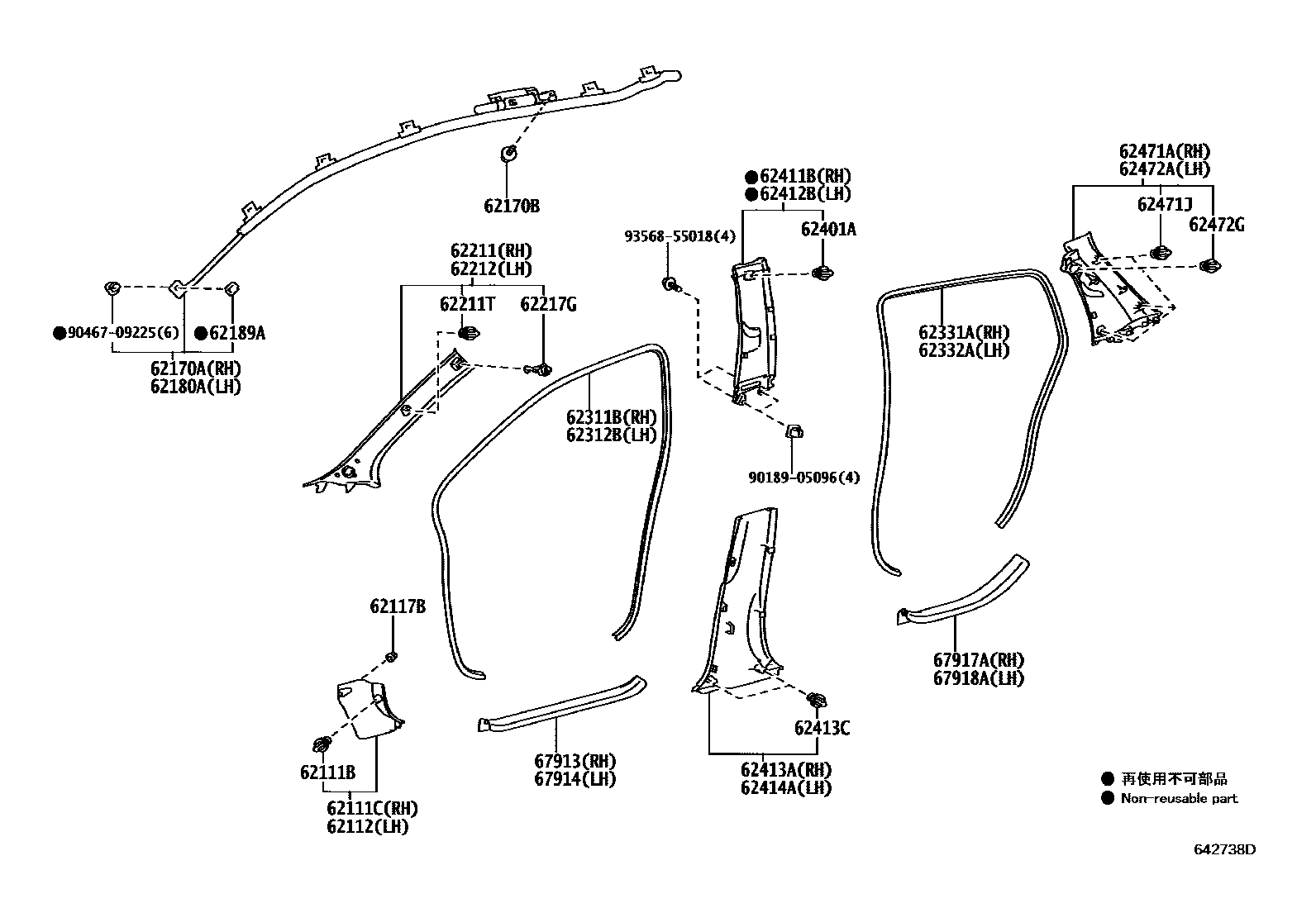

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#
BLACK,TRIM1#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
BLACK,TRIM1#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
62170BBOLT, W/WASHER
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
VSC-WITHOUT
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
VSC-WITHOUT
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
VSC-WITHOUT
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
LH
RH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#
62472GCLIP (FOR ROOF SIDE GARNISH)
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#
9018905096
main90189-05096
9046709225
main90467-09225
9356855018
main93568-55018
33 parts on this diagram · 1 diagram in section
