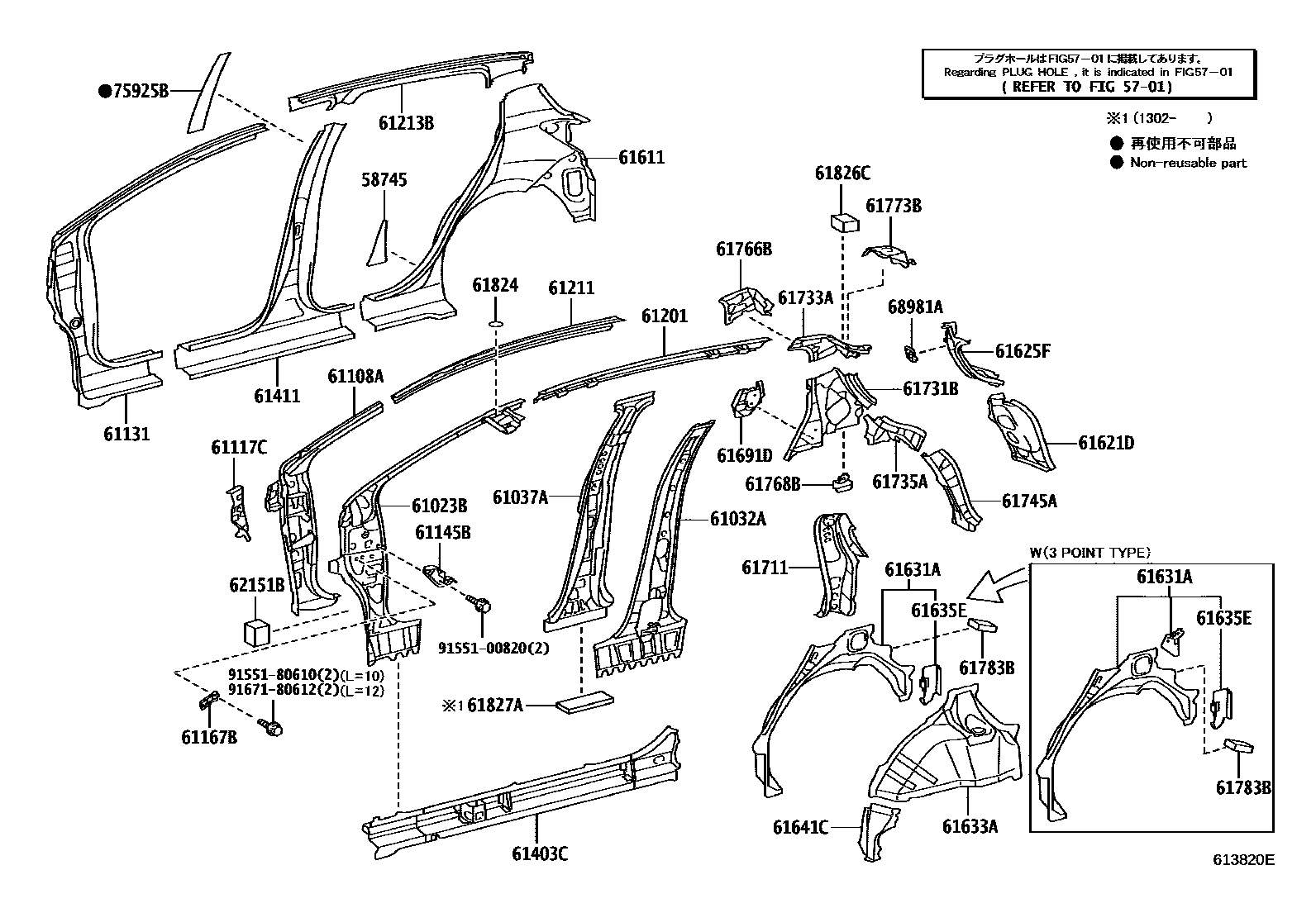

SIDE MEMBER

0001 1RH 0002 1LH

5701HOLE PLUG

→ Go to FIG 57-01

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-52330iKSP130,NSP130201108

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52170iKSP130,NSP130201108-201407

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-52090iKSP130,NSP130201108

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-52909iKSP130,NSP130201108

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52904iKSP130,NSP130201108

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-52020iKSP130,NSP130201108-201307

main61117-52021iNSP130201308

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52300iKSP130,NSP130201108

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-52060iKSP130,NSP130201108

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-52020×2iKSP130,NSP130201108

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-52110iKSP130,NSP130201108

61211RAIL, ROOF SIDE, OUTER RH

main61211-52180iKSP130,NSP130201108

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52190iKSP130,NSP130201108

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52200iKSP130,NSP130201108

61411PANEL, ROCKER, OUTER RH

main61411-52280iKSP130,NSP130201108

61611PANEL, QUARTER, RH

main61601-52570iKSP130,NSP130201108

61621DTROUGH, BACK DOOR OPENING, RH

main61621-52160iKSP130,NSP130201108

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-52150iKSP130,NSP130201108

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52908iKSP130,NSP130201108

main61631-52907iKSP130,NSP130..LHD..R201108-201208

N1 PACKAGE

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52330iKSP130,NSP130201108

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-52110iKSP130,NSP130201108

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52100iKSP130,NSP130201108

61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH

main61691-52010iKSP130,NSP130201108

61711PANEL, ROOF SIDE, OUTER RH

main61711-52180iKSP130,NSP130201108

61731BPANEL, ROOF SIDE, INNER RH

main61731-52240iKSP130,NSP130201108

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-52040iKSP130,NSP130201108

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-52110iKSP130,NSP130201108

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-52120iKSP130,NSP130201108

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-52150iKSP130,NSP130201108

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-52200iKSP130,NSP130201108

61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH

main61773-52020iKSP130,NSP130201108

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-52040×2iKSP130,NSP130201108

61824PLATE, NOISE CONTROL, NO.1

main61824-12060×2iKSP130,NSP130201108

61826CPAD, NOISE SHUTTER, NO.3

main61826-52040×2iKSP130,NSP130201108

61827APLATE, NOISE CONTROL, NO.4

main61826-52030×2iNSP130201302

62151BPAD, COWL SIDE SILENCER

main62151-52030×2iKSP130,NSP130201108

68981ARETAINER, BACK DOOR STAY, RH

main68981-52090iKSP130,NSP130201108

75925BTAPE, BLACK OUT, NO.3 RH

main75925-52110iKSP130,NSP130201108

9155100820

main91551-00820

9155180610

main91551-80610

9167180612

main91671-80612

41 parts on this diagram · 2 diagrams in section
