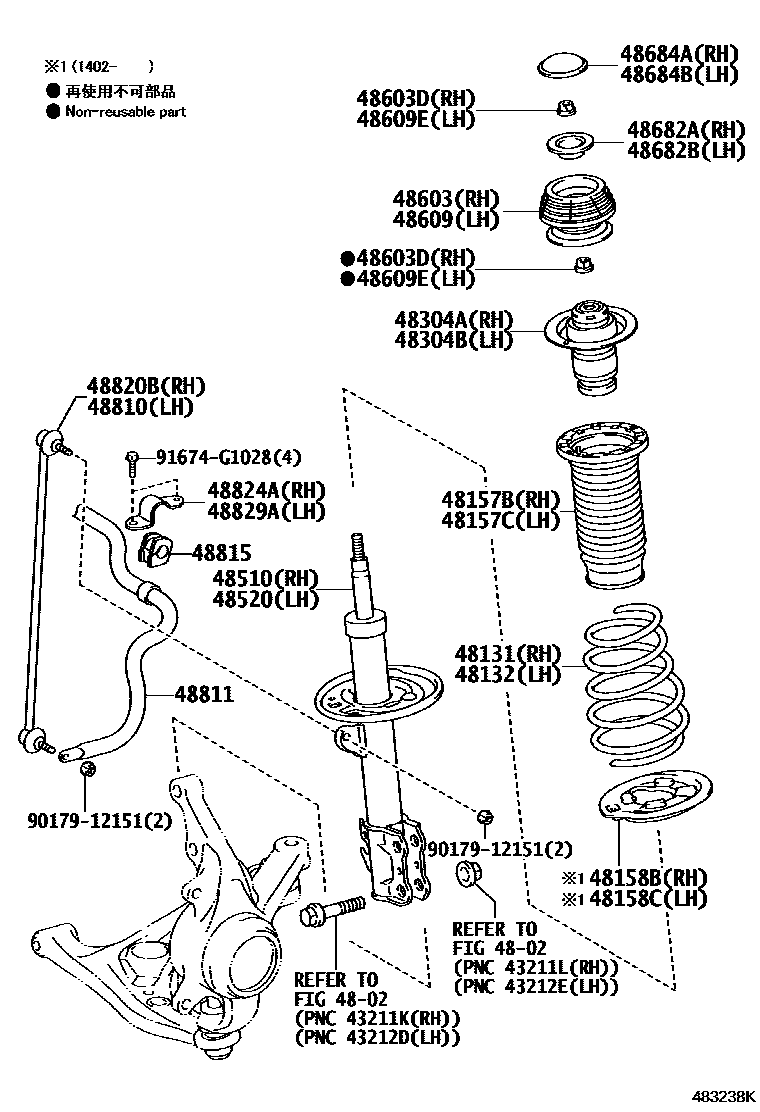

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-52F10iNSP130201208-201402

sub48131-52F11

main48131-52F11iNSP130201403-201407

main48131-52F70iKSP130201108-201208

sub48131-52M40

main48131-52F90iKSP130..ACTV201108-201208

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

sub48131-52M50

main48131-52F90iKSP130..ACTV201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

sub48131-52M50

main48131-52F90iKSP130..ACTV201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

sub48131-52M50

main48131-52F90iKSP130..R201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.W/N

sub48131-52M50

48132SPRING, FRONT COIL, LH

main48131-52F10iNSP130201208-201402

sub48131-52F11

main48131-52F11iNSP130201403-201407

main48131-52F70iKSP130201108-201208

sub48131-52M40

main48131-52F90iKSP130..ACTV201108-201208

TIRE & DISC WHEEL-175/65R14 5J BLACK ROUGH ROAD SPEC.

sub48131-52M50

main48131-52F90iNSP130201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.W/N

sub48131-52M50

main48131-52F90iNSP130201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

sub48131-52M50

main48131-52F90iNSP130201108-201208

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

sub48131-52M50

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iKSP130,NSP130201108-201401

main48157-52040iNSP130201402-201407

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iKSP130,NSP130201108-201401

main48157-52040iNSP130201402-201407

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-52010iNSP130201402

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-52010iNSP130201402

48304ASEAT SUB-ASSY, BUMPER, RH

main48304-52040iNSP130201208-201406

sub48304-52041

main48304-52050iKSP130,NSP130201108-201206

sub48304-52051

main48304-52051iKSP130,NSP130201207-201208

48304BSEAT SUB-ASSY, BUMPER, LH

main48304-52040iNSP130201208-201406

sub48304-52041

main48304-52050iKSP130,NSP130201108-201206

sub48304-52051

main48304-52051iKSP130,NSP130201207-201208

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52G10iKSP130,NSP130201108-201401

MARK 48510-52G10

sub48510-52G11

main48510-52G11iNSP130201402-201407

MARK 48510-52G11

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52510iKSP130,NSP130201108-201401

MARK 48520-52510

sub48520-52511

main48520-52511iNSP130201402-201407

MARK 48520-52511

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iKSP130,NSP130201108

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iKSP130,NSP130201108

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iKSP130,NSP130201108

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iKSP130,NSP130201108

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iKSP130,NSP130201108

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iKSP130,NSP130201108

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iKSP130,NSP130201108

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iKSP130,NSP130201108

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iKSP130,NSP130201108

48811BAR, STABILIZER, FRONT

main48811-52240iKSP130,NSP130201108

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52090iKSP130,NSP130201108

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iKSP130,NSP130201108

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iKSP130,NSP130201108

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iKSP130,NSP130201108

9017912151

main90179-12151

91674G1028

main91674-G1028

27 parts on this diagram · 1 diagram in section
