ENGINE OVERHAUL GASKET KIT

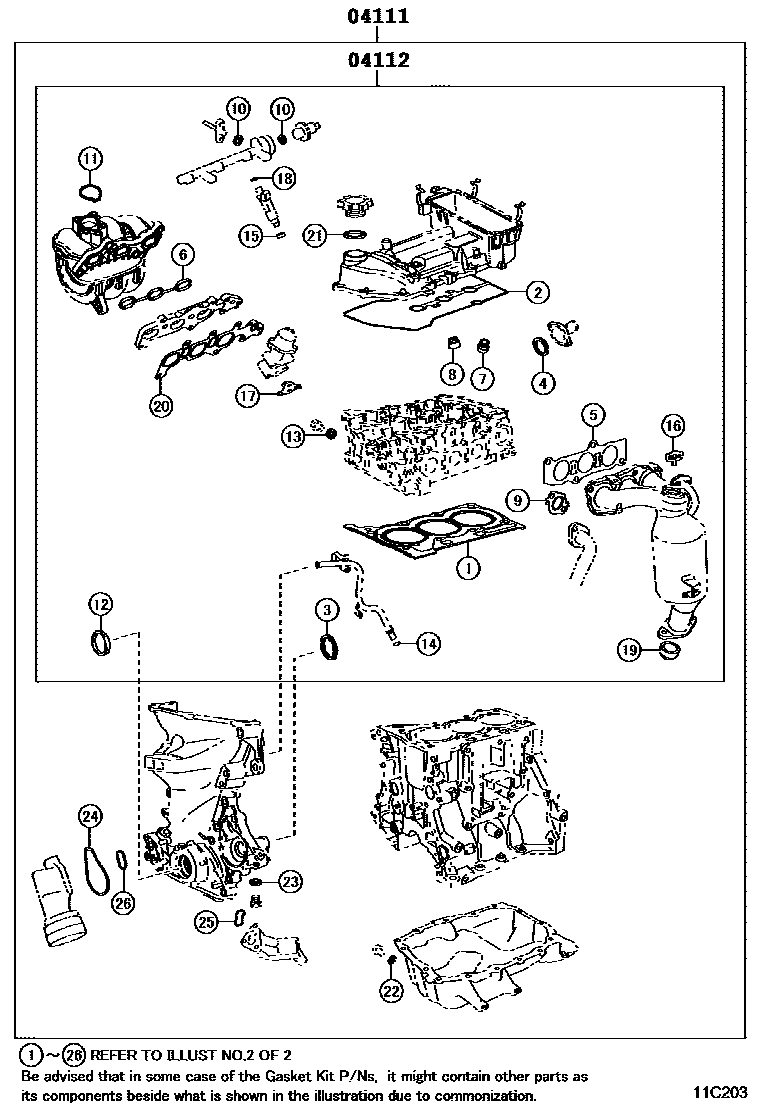

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-40073i201108-201208
sub04111-40074
main04111-47044i201108-201205
sub04111-47045
main04111-47045i201205-201208
main04111-47056i201208-201303
sub04111-47057
main04111-47057i201303-201312
main04111-47170i201312-201407
04112GASKET KIT, ENGINE VALVE GRIND
main04112-40033i201108-201208
sub04112-40034
main04112-47044i201108-201111
sub04112-47045
main04112-47045i201111-201205
sub04112-47046
main04112-47046i201205-201312
main04112-47120i201312-201407

2 parts on this diagram · 4 diagrams in section
