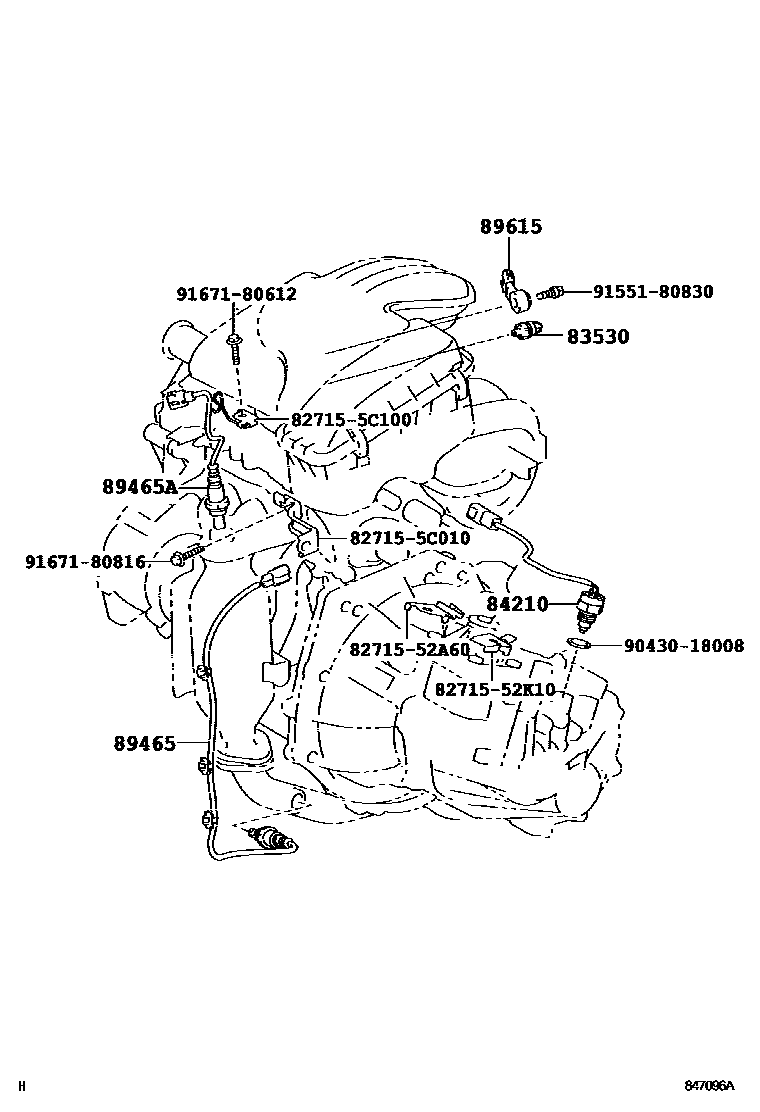

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0007 1COWL 0009 1COWL 0011 1COWL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1STEERING 0016 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iKSP90,ZSP90..JPP..5F200508

DENSO

main83530-60020iKSP90..JPP;ZSP90..JPP..6F200808-201106

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZSP90..JPP200809-201006

main84210-52010iZSP90..JPP200611-200809

main84210-52030iKSP90..JPP200508-200808

89465SENSOR, OXYGEN

main89465-0D130iKSP90..JPP200508

main89465-52450iZSP90..JPP..5F200611

89465ASENSOR, OXYGEN NO.2

main89465-0H010iKSP90..JPP200808-201108

89615SENSOR, KNOCK CONTROL

main89615-0H010iKSP90..JPP200508

main89615-20090iZSP90..JPP..5F200611

8271552A60BRACKET,WIRING HARNESS CLAMP

main82715-52A60

8271552K10BRACKET,WIRING HARNESS CLAMP

main82715-52K10

827155C010BRACKET,WIRING HARNESS CLAMP

main82715-5C010

827155C100BRACKET,WIRING HARNESS CLAMP

main82715-5C100

9043018008

main90430-18008

9155180830

main91551-80830

9167180612

main91671-80612

9167180816

main91671-80816

13 parts on this diagram · 12 diagrams in section
