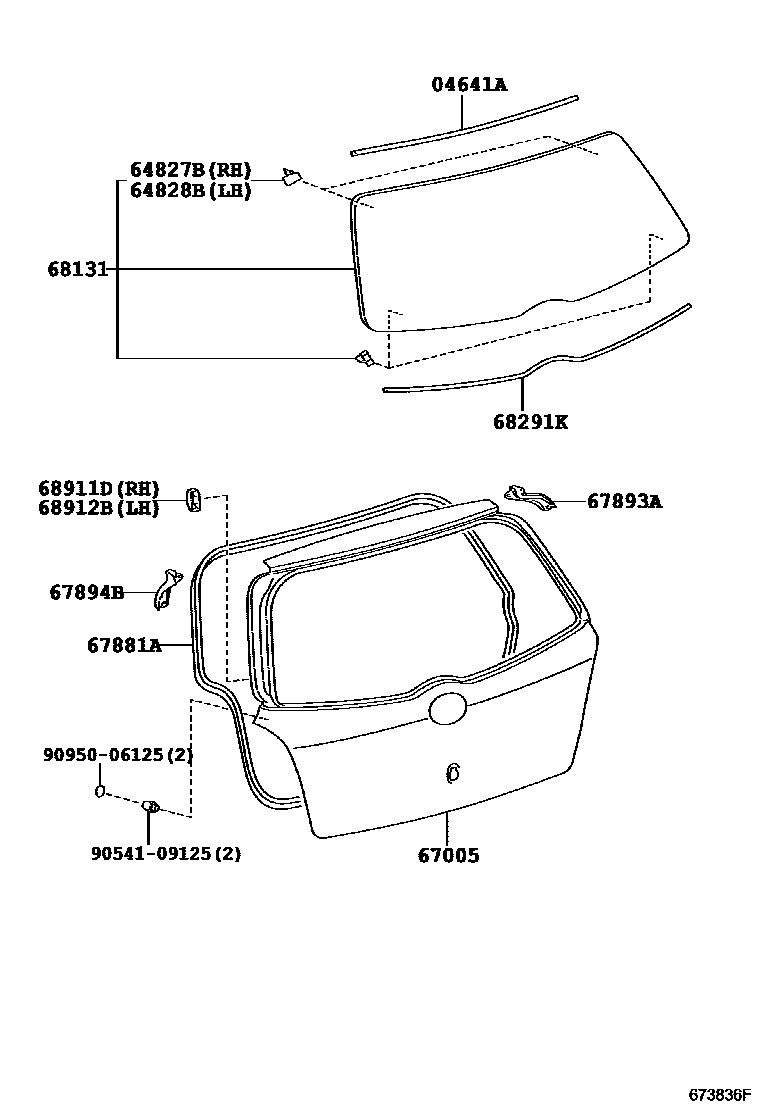

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-52070iKSP90,ZSP90..JPP..5F200508

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52070iKSP90..JPP;ZSP90..JPP..6F200808-201106

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52050iKSP90,ZSP90..JPP..5F200508

67005PANEL SUB-ASSY, BACK DOOR

main67005-52720iZSP90..JPP200809-201006

main67005-52730iKSP90..JPP200808-201108

67881AWEATHERSTRIP, BACK DOOR

main67881-52110iKSP90..JPP;ZSP90..JPP..6F200808-201106

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52040iKSP90,ZSP90..JPP..5F200508

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52040iKSP90,ZSP90..JPP..5F200508

68131GLASS, BACK DOOR

main68105-52380iZSP90..JPP200508-200708

*UVCEHT,T=3.1,GREEN

main68105-52451iZSP90..JPP..5F200708

*UVCEHT,T=3.1,CGREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-52040iKSP90,ZSP90..JPP..5F200508

68911DCOVER, BACK DOOR STAY, RH

main68911-52010iKSP90,ZSP90..JPP..5F200508

68912BCOVER, BACK DOOR STAY, LH

main68912-52010iKSP90,ZSP90..JPP..5F200508

9054109125

main90541-09125

9095006125

main90950-06125

13 parts on this diagram · 2 diagrams in section
