EPC Data

REAR DOOR LOCK & HANDLE

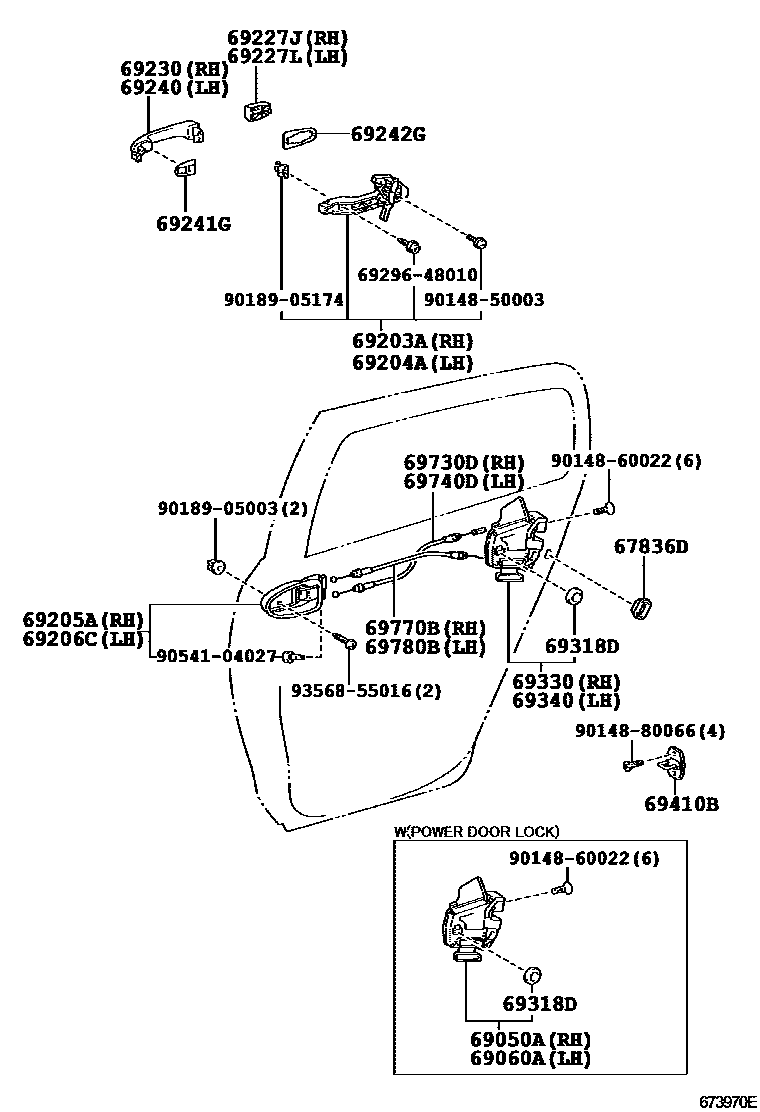

Parts diagram
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
main67836-12040i200508-201106
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-52190i200508-201106
main69050-52210i200611-201006
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-52200i200508-201106
main69060-52220i200611-201006
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-52040i200508-201106
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-52050i200508-201106
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-52070-B1i200508-201106
DK.GRAY,TRIM1#
main69205-52120-B2i200508
DK.GRAY,TRIM18
main69205-52120-B3i200508
GRAY,TRIM19
main69205-52130-B0i200611-201006
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-52110-B1i200508-201106
DK.GRAY,TRIM1#
main69206-52120-B2i200508
DK.GRAY,TRIM18
main69206-52120-B3i200508
GRAY,TRIM19
main69206-52130-B0i200611-201006
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-42060i200508-201106
BLACK MATERIAL
main69227-42070-03i200809-201006
WHITE PEARL CS.,070
sub69227-42070
sub69227-42901
main69227-42070-A3i200711
SUPER WHITE 2,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-C2i200508-201006
BLACK MC.,209
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-P0i200508
SILVER M.M.,1E7
sub69227-42070
sub69227-42901
main69227-42070-P3i200508-201006
MEDIUM SILVER ME.,1F8
sub69227-42070
sub69227-42901
main69227-42070-P5i200809-201006
GRAY ME.,1G3
sub69227-42070
sub69227-42901
main69227-42070-P7i200611
DK.GRAY M.M.,1F6
sub69227-42070
sub69227-42901
main69227-42070-R5i200508-201006
BLUE M.M.,8T0
sub69227-42070
sub69227-42901
main69227-42070-R6i200508
GRAYISH BLUE M.M.,8T1
sub69227-42070
sub69227-42901
main69227-42070-R8i200711
DK.BLUE MC.,8P4
sub69227-42070
sub69227-42901
main69227-42070-X0i200508-201006
SUPER RED 5,3P0
sub69227-42070
sub69227-42901
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-42060i200508-201106
BLACK MATERIAL
main69227-42070-03i200809-201006
WHITE PEARL CS.,070
sub69227-42070
sub69227-42901
main69227-42070-A3i200711
SUPER WHITE 2,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,WHITE,068
sub69227-42070
sub69227-42901
main69227-42070-C2i200508-201006
BLACK MC.,209
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-G0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-J2i200508-200711
DK.BLUE M.M.,8P4
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,ORANGE M.M.,4S9
sub69227-42070
sub69227-42901
main69227-42070-P0i200508
SILVER M.M.,1E7
sub69227-42070
sub69227-42901
main69227-42070-P3i200508-201006
MEDIUM SILVER ME.,1F8
sub69227-42070
sub69227-42901
main69227-42070-P5i200809-201006
GRAY ME.,1G3
sub69227-42070
sub69227-42901
main69227-42070-P7i200611
DK.GRAY M.M.,1F6
sub69227-42070
sub69227-42901
main69227-42070-R5i200508-201006
BLUE M.M.,8T0
sub69227-42070
sub69227-42901
main69227-42070-R6i200508
GRAYISH BLUE M.M.,8T1
sub69227-42070
sub69227-42901
main69227-42070-R8i200711
DK.BLUE MC.,8P4
sub69227-42070
sub69227-42901
main69227-42070-X0i200508-201006
SUPER RED 5,3P0
sub69227-42070
sub69227-42901
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-12220-03i200809-201006
WHITE PEARL CS.,070
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200508-201006
BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P3i200508-201006
MEDIUM SILVER ME.,1F8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200809-201006
GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P7i200701-200809
DK.GRAY M.M.,1F6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R5i200508-201006
BLUE M.M.,8T0
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X0i200508-201006
SUPER RED 5,3P0
sub69211-12903
sub69211-12220
sub69211-52090
main69211-42010i200508-201106
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-12220-03i200809-201006
WHITE PEARL CS.,070
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A8i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,WHITE,068
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200508-201006
BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-G1i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.GREEN M.M.,6S3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-J0i200508-200711
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE M.M.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-L0i200508-200807
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,ORANGE M.M.,4S9
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P0i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P3i200508-201006
MEDIUM SILVER ME.,1F8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200809-201006
GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P7i200701-200809
DK.GRAY M.M.,1F6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R5i200508-201006
BLUE M.M.,8T0
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R6i200508-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,GRAYISH BLUE M.M.,8T1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR,DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200711-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8P4
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X0i200508-201006
SUPER RED 5,3P0
sub69211-12903
sub69211-12220
sub69211-52090
main69211-42010i200508-201106
NO PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48020i200508-201106
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-42010i200508-200610
main69242-52020i200611-201106
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-47010i200508-201106
69330LOCK ASSY, REAR DOOR, RH
main69330-52210
69340LOCK ASSY, REAR DOOR, LH
main69340-52220
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33010i200508-201106
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-52110i200508-200701
sub69730-52150
main69730-52150i200702-201106
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-52110i200508-200701
sub69730-52150
main69730-52150i200702-201106
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-52030i200508-201106
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-52030i200508-201106
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9018905174
main90189-05174
9054104027
main90541-04027
9356855016
main93568-55016

29 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
