FRONT DISC BRAKE CALIPER & DUST COVER

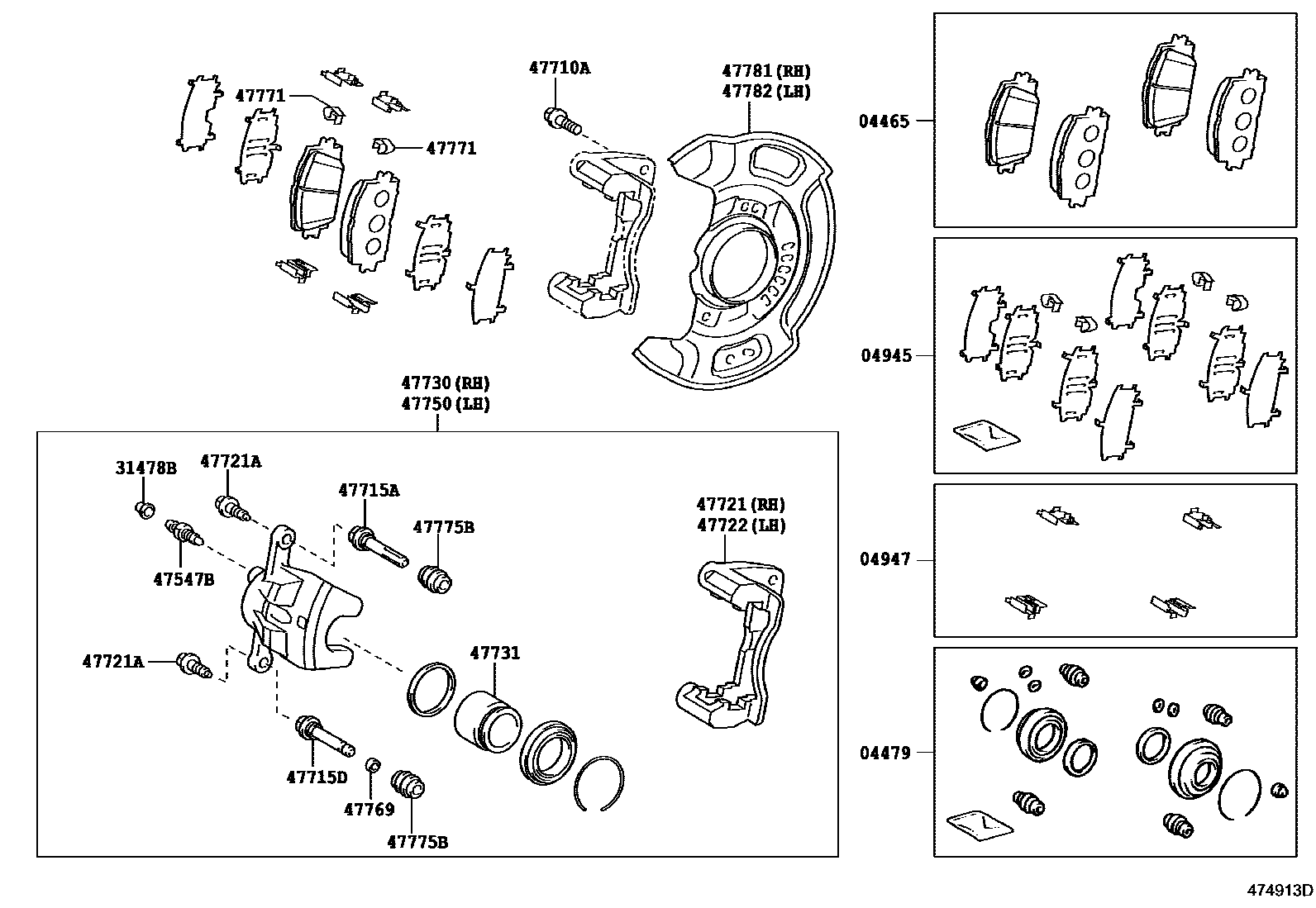

Parts diagram

04465PAD KIT, DISC BRAKE, FRONT

main04465-52200i200508-201106

MARK ADVICS PC553H

main04465-52270i200801

MARK ADVICS PC553H,REAR WHEEL BRAKE-DISK(BUILT-IN)

main04465-52270i200801-201006

MARK ADVICS PC553H

main04465-52270i200611-200801

MARK ADVICS PC553H,MARK K

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52070i200508-201106

main04478-52100i200611-201006

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52140i200508-201106

main04945-52150i200611-201006

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050i200508-201106

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i200508-201106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i200508-201106

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i200508-201106

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10i200612-201106

main47715-22070i200508-200612

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190i200508-201106

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191i200508-201106

main47721-52211i200611-201006

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164i200508-201106

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191i200508-201106

main47722-52211i200611-201006

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52191i200508-201106

main47730-52211i200611-201006

47731PISTON, FRONT DISC BRAKE

main47731-52190i200508-201106

main47731-52210i200611-201006

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52191i200508-201106

main47750-52211i200611-201006

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i200508-201106

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191i200508-200808

47775BBOOT, BUSH DUST, NO.1

main47775-52190i200508-201108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030i200508-201106

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030i200508-201106

20 parts on this diagram · 1 diagram in section
