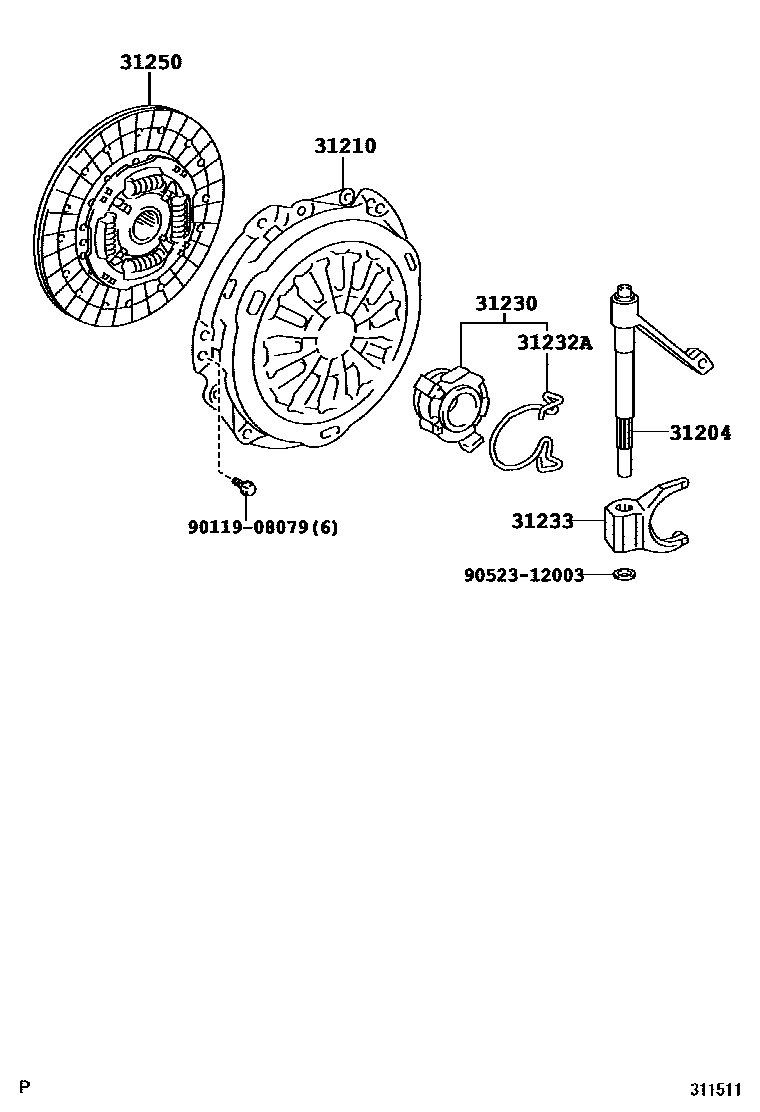

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iZSP90..JPP200611-200809

main31204-52031iKSP90..JPP200508-200808

31210COVER ASSY, CLUTCH

main31210-0D060iKSP90..JPP200508-200808

main31210-12290iZSP90..JPP200611-200702

main31210-12291iZSP90..JPP200703-200808

main31210-12340iZSP90..JPP200809

main31210-0D120supersedes 31210-0D060iKSP90..JPP200808-201002

ECO MODEL PACKAGE

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iZSP90..JPP200611-200809

main31230-52040iKSP90..JPP200508-200808

31232ACLIP, RELEASE BEARING HUB

main31232-12080iZSP90..JPP200611-200809

main31232-52040iKSP90..JPP200508-200808

31233FORK, CLUTCH RELEASE

main31233-52040iKSP90..JPP200508

31250DISC ASSY, CLUTCH

main31250-0D080iKSP90..JPP200508-200511

main31250-0D081iKSP90..JPP200512-200806

main31250-0D082iKSP90..JPP200807-200808

main31250-12510iZSP90..JPP200611-200809

main31250-12600iZSP90..JPP200809-201006

main31250-0D161supersedes 31250-0D082iKSP90..JPP200808-200912

ECO MODEL PACKAGE

main31250-0D162supersedes 31250-0D083iKSP90..JPP201001-201002

ECO MODEL PACKAGE

9011908079

main90119-08079

9052312003

main90523-12003

8 parts on this diagram · 3 diagrams in section
