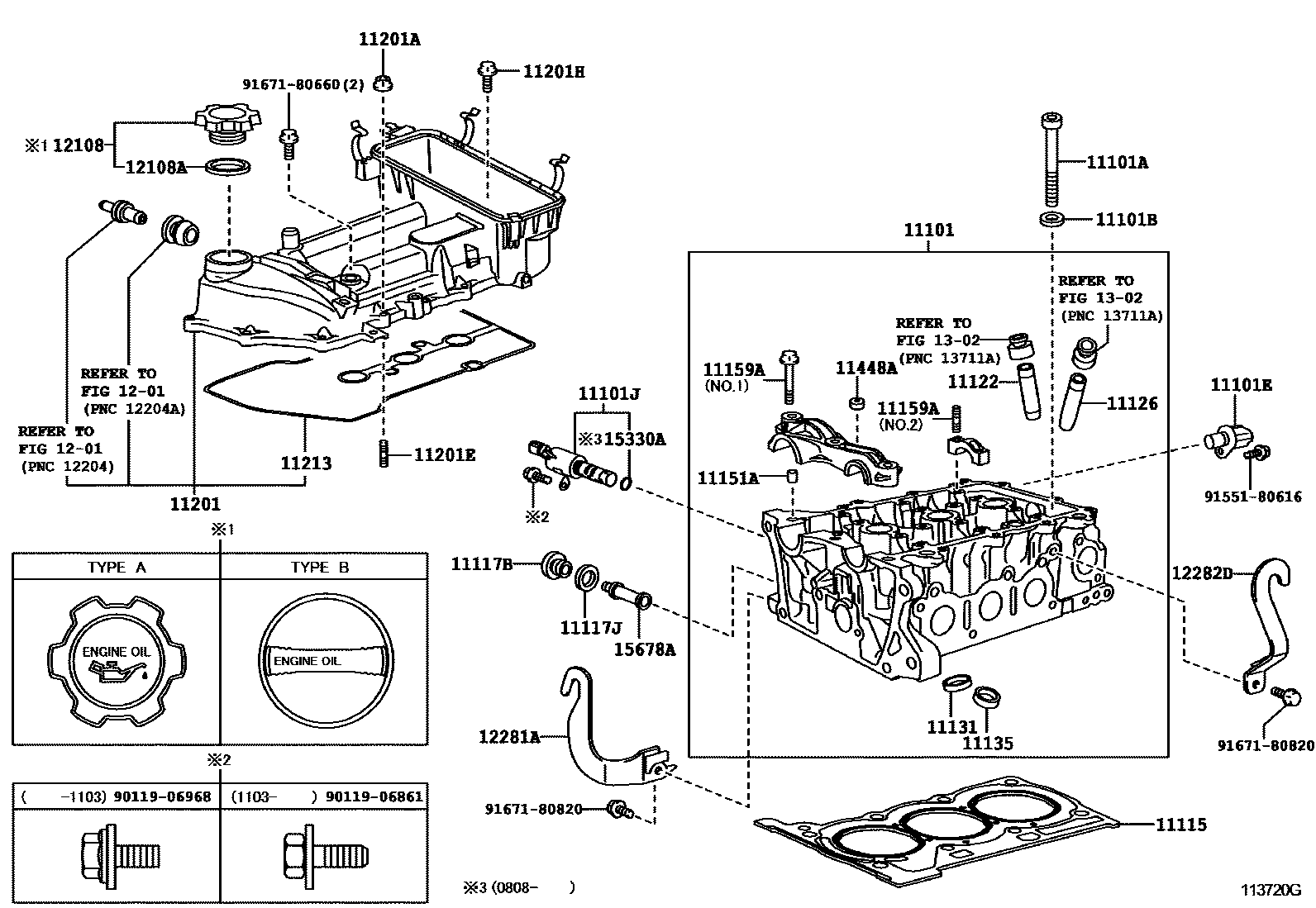

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=9
L=12.5,OD=8
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
11201HBOLT(FOR CYLINDER HEAD COVER)
11448AORIFICE, CYLINDER HEAD OIL
1201
12108CAP SUB-ASSY, OIL FILLER
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
1302
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
9011906861
main90119-06861
9011906968
main90119-06968
9155180616
main91551-80616
9167180660
main91671-80660
9167180820
main91671-80820
33 parts on this diagram · 3 diagrams in section
