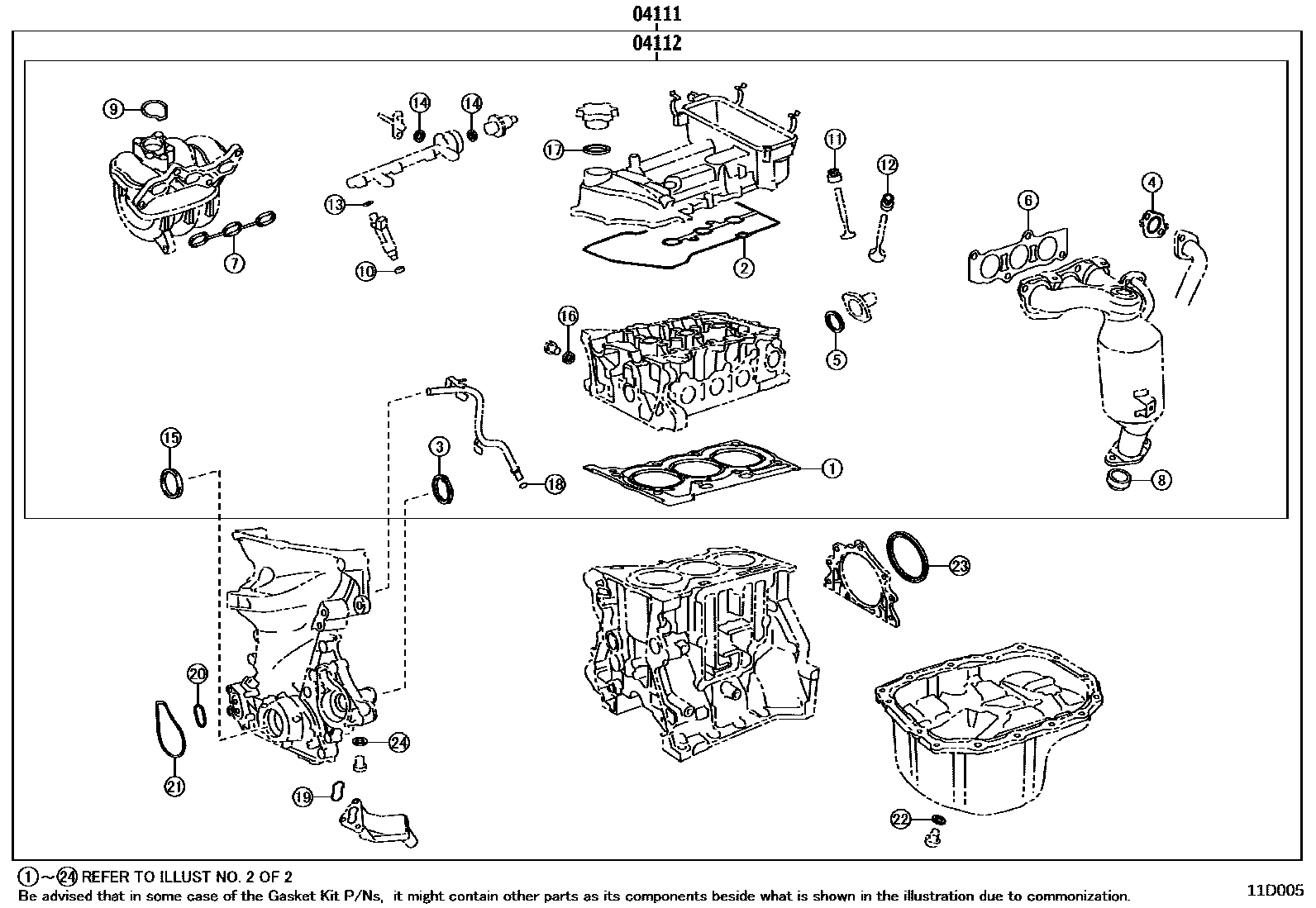

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-09040i1KRFE..KSP90..JPP200508-200511

sub04111-0Q020

main04111-0Q021i1KRFE..KSP90..JPP200511

sub04111-0Q022

main04111-37110i2ZRFE..ZSP90..JPP200611-200806

sub04111-37111

main04111-37111i2ZRFE..ZSP90..JPP200806-200903

sub04111-37112

main04111-37112i2ZRFE..ZSP90..JPP200903-201006

sub04111-37114

main04111-40071i1KRFE..KSP90..JPP200808-200908

sub04111-40072

main04111-40072i1KRFE..KSP90..JPP200908-201012

sub04111-40073

main04111-40073i1KRFE..KSP90..JPP201012-201106

sub04111-40074

04112GASKET KIT, ENGINE VALVE GRIND

main04112-09040i1KRFE..KSP90..JPP200508-200511

sub04112-0Q020

main04112-0Q021i1KRFE..KSP90..JPP200511

sub04112-0Q022

main04112-37090i2ZRFE..ZSP90..JPP200611-200806

sub04112-37091

main04112-37091i2ZRFE..ZSP90..JPP200806-200903

sub04112-37092

main04112-37092i2ZRFE..ZSP90..JPP200903-201006

sub04112-37093

main04112-40031i1KRFE..KSP90..JPP200808-200908

sub04112-40032

main04112-40032i1KRFE..KSP90..JPP200908-201012

sub04112-40033

main04112-40033i1KRFE..KSP90..JPP201012-201106

sub04112-40034

2 parts on this diagram · 6 diagrams in section
