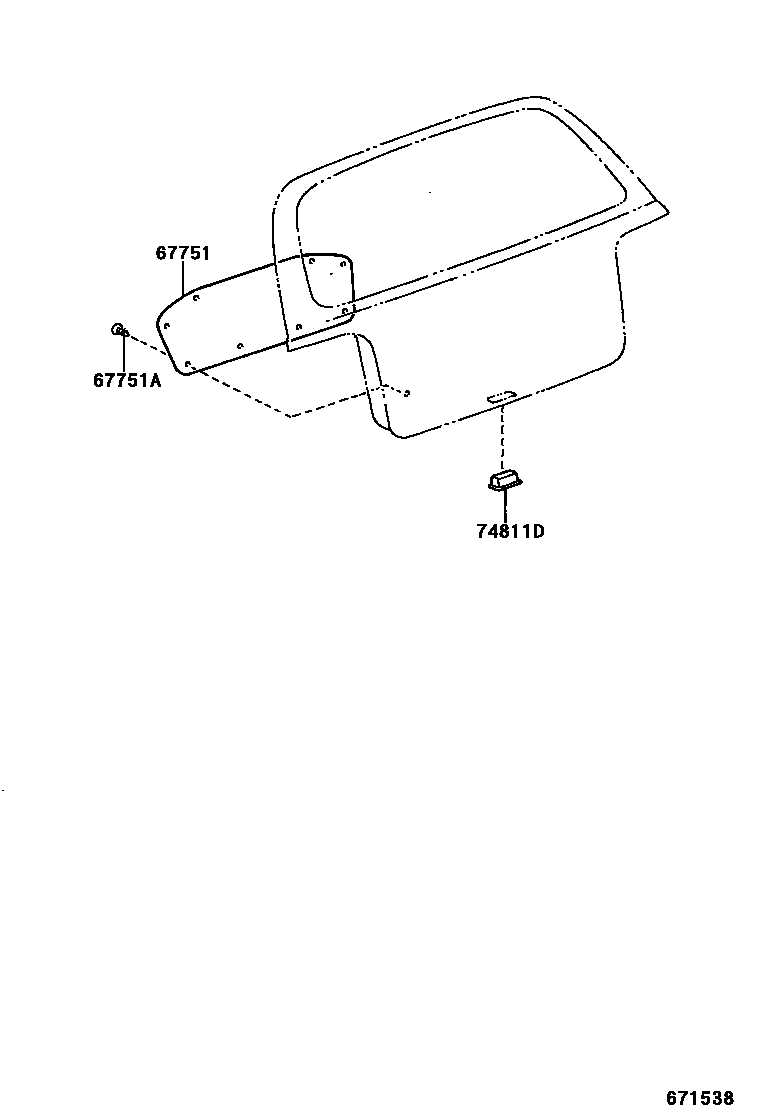

BACK DOOR PANEL & GLASS
67751BOARD, BACK DOOR TRIM
BLACK,TRIM97,98,99
BLACK,TRIM97,98
BLACK,TRIM9#
BLACK,TRIM1#,7#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
DK.GRAY,TRIM97,98,99
DK.GRAY,TRIM97,98
DK.GRAY,TRIM9#
BLACK,TRIM1#,7#
BLACK,TRIM9#
74811DHANDLE, DOOR PULL
BLACK,TRIM1#,7#&040 ,199 ,3N7 ,580 ,764 ,8K8
sub74811-13010
BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,580 ,6R4 ,764 ,8K8 ,8M4
sub74811-13010
BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,3P0 ,580 ,6R4 ,764 ,8K8 ,8M4
sub74811-13010
3 parts on this diagram · 2 diagrams in section
