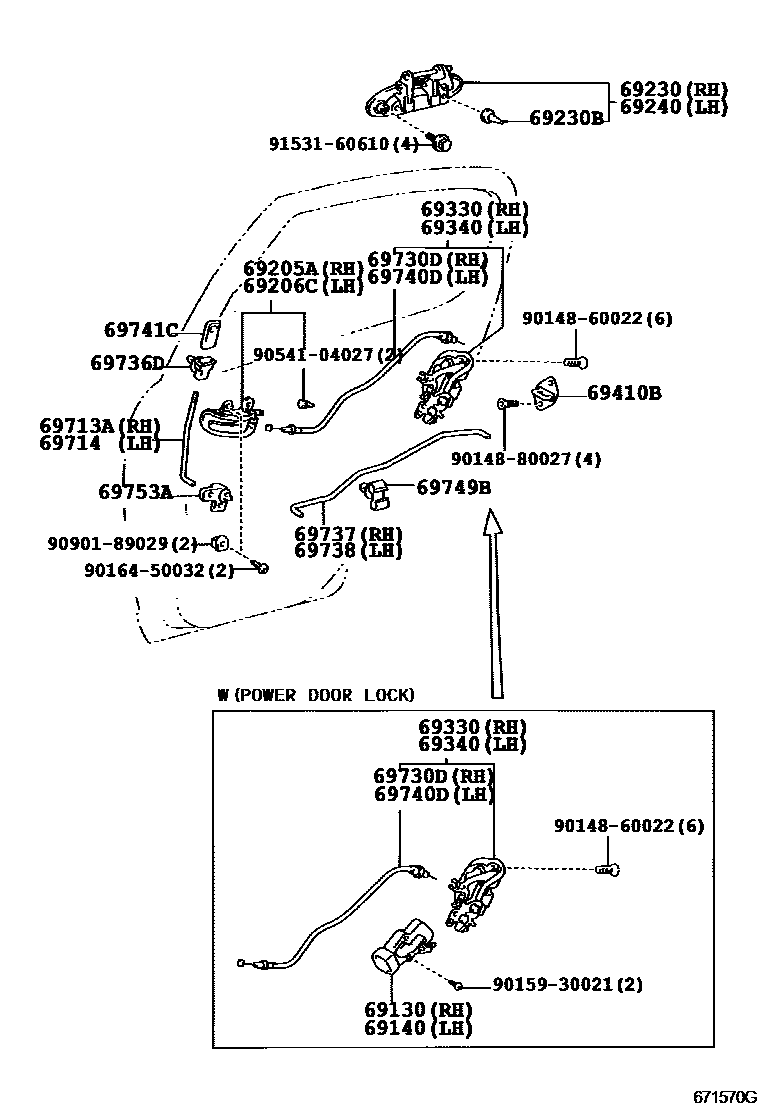

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK = DOUBLE LOCK)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK = DOUBLE LOCK)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM9#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM9#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK
69330LOCK ASSY, REAR DOOR, RH
W(POWER DOOR LOCK = DOUBLE LOCK)
W(POWER DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(POWER DOOR LOCK = DOUBLE LOCK)
W(POWER DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69736DGUIDE, REAR DOOR LOCKING LINK
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69753ABELLCRANK, DOOR LOCK CONTROL
9014860022
main90148-60022
9014880027
main90148-80027
9015930021
main90159-30021
9016450032
main90164-50032
9054104027
main90541-04027
9090189029
main90901-89029
9153160610
main91531-60610
27 parts on this diagram · 1 diagram in section
