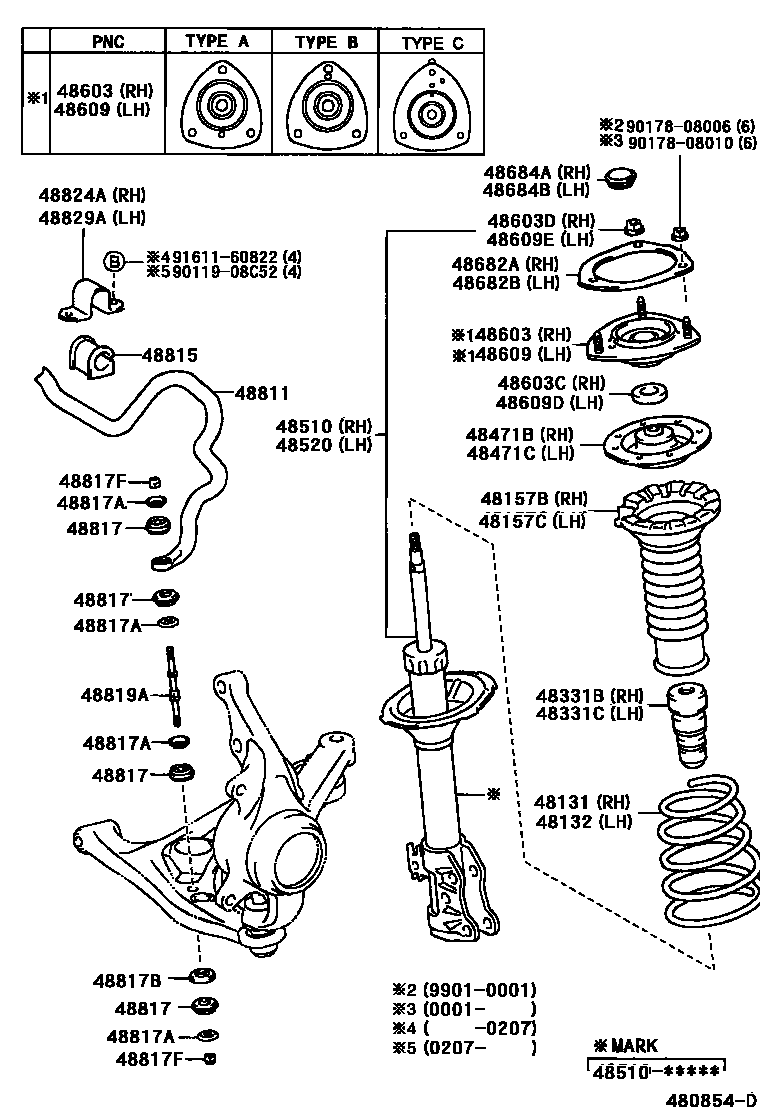

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-52030iSCP10..JPP..(LUNA,SOL,TRSTD)200001-200212

main48131-52040iNCP10..JPP199908-200212

ROUGH ROAD PACKAGE

main48131-52070iNCP10..JPP199908-200212

main48131-52090iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

ROUGH ROAD PACKAGE

main48131-52100iSCP10..JPP..TSGS200001-200212

main48131-52340iNCP13..JPP200101-200212

main48131-52370iNLP10..JPP200110-200212

main48131-52610iNCP13..JPP200212

main48131-52650iNLP10..JPP200212

48132SPRING, FRONT COIL, LH

main48131-52030iSCP10..JPP199901-200001

L=352.5

main48131-52040iNCP10..JPP199908-200212

ROUGH ROAD PACKAGE

main48131-52070iNCP10..JPP199908-200212

main48131-52090iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200212

ROUGH ROAD PACKAGE

main48131-52100iSCP10..JPP..TSGS200001-200212

main48131-52340iNCP13..JPP200101-200212

main48131-52370iNLP10..JPP200110-200212

main48131-52610iNCP13..JPP200212

main48131-52650iNLP10..JPP200212

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52010iNCP1#,NLP10,SCP10..JPP199901-200212

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52010iNCP1#,NLP10,SCP10..JPP199901-200212

48331BBUMPER, FRONT SPRING, RH

main48331-52010iNCP10,SCP10..JPP199901-200002

main48331-52020iSCP10..JPP..TSGS200002-200212

main48331-52050iNCP13..JPP200101-200212

48331CBUMPER, FRONT SPRING, LH

main48331-52010iNCP10,SCP10..JPP199901-200002

main48331-52020iSCP10..JPP..TSGS200002-200212

main48331-52050iNCP13..JPP200212

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-52010iNCP13,NLP10..JPP200212

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-52010iNCP1#,NLP10,SCP10..JPP199901-200212

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59145iSCP10..JPP199901-199903

PART NUMBER MARK=48510-52030

main48510-59146iNCP10,SCP10..JPP199903-200001

MARK 48510-52031

main48510-59147iNCP10,SCP10..JPP200001-200002

MARK 48510-52032

main48510-59148iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200006-200205

MARK 48510-52033

main48510-59149iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200205-200212

MARK 48510-52034

main48510-59155iSCP10..JPP199901-199903

ROUGH ROAD PACKAGE, PART NUMBER MARK=48510-52040

main48510-59156iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199903-200001

MARK 48510-52041,ROUGH ROAD PACKAGE

main48510-59157iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200001-200006

MARK 48510-52042

main48510-59158iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200006-200205

MARK 48510-52043

main48510-59159iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200205-200212

MARK 48510-52044

main48510-59375iSCP10..JPP..TSGS200002-200006

MARK 48510-52360

main48510-59376iSCP10..JPP..TSGS200006-200205

MARK 48510-52361

main48510-59377iSCP10..JPP..TSGS200205-200212

MARK 48510-52362

main48510-59385iNCP13..JPP200101-200205

MARK 48510-52370

main48510-59386iNCP13..JPP200205-200212

MARK 48510-52371

main48510-59455iNLP10..JPP200110-200205

MARK 48510-52400

main48510-59456iNLP10..JPP200212

MARK 48510-52401

main48510-59705iNCP13..JPP200212

MARK 48510-52660

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-59145iSCP10..JPP199901-199903

PART NUMBER MARK=48510-52030

main48510-59146iNCP10,SCP10..JPP199903-200001

MARK 48510-52031

main48510-59147iNCP10,SCP10..JPP200001-200002

MARK 48510-52032

main48510-59148iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200006-200205

MARK 48510-52033

main48510-59149iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200205-200212

MARK 48510-52034

main48510-59155iSCP10..JPP199901-199903

ROUGH ROAD PACKAGE, PART NUMBER MARK=48510-52040

main48510-59156iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199903-200001

MARK 48510-52041,ROUGH ROAD PACKAGE

main48510-59157iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200001-200006

MARK 48510-52042

main48510-59158iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200006-200205

MARK 48510-52043

main48510-59159iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200205-200212

MARK 48510-52044

main48510-59375iSCP10..JPP..TSGS200002-200006

MARK 48510-52360

main48510-59376iSCP10..JPP..TSGS200006-200205

MARK 48510-52361

main48510-59377iSCP10..JPP..TSGS200205-200212

MARK 48510-52362

main48510-59385iNCP13..JPP200101-200205

MARK 48510-52370

main48510-59386iNCP13..JPP200205-200212

MARK 48510-52371

main48510-59455iNLP10..JPP200110-200205

MARK 48510-52400

main48510-59456iNLP10..JPP200205-200212

MARK 48510-52401

main48510-59705iNCP13..JPP200212

MARK 48510-52660

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52020iNCP10,SCP10..JPP..(LUNA,TRSTD,TSGS)199901-200001

TYPE A:REFER TO ILLUSTRATION

main48609-52021iNLP10..JPP..TRSTD200212

TYPE A:REFER TO ILLUSTRATION

main48609-52030iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-200001

TYPE B:REFER TO ILLUSTRATION

main48609-52031iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200001-200212

TYPE B:REFER TO ILLUSTRATION

main48609-52050iNCP13,NLP10..JPP200101-200212

TYPE C:REFER TO ILLUSTRATION

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNCP1#,NLP10,SCP10..JPP200008-200212

main90303-22049iNCP10,SCP10..JPP199901-200008

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNCP1#,NLP10,SCP10..JPP199901-200212

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52020iNCP10,SCP10..JPP..(LUNA,TRSTD,TSGS)199901-200001

TYPE A:REFER TO ILLUSTRATION

main48609-52021iNLP10..JPP..TRSTD200212

TYPE A:REFER TO ILLUSTRATION

main48609-52030iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-200001

TYPE B:REFER TO ILLUSTRATION

main48609-52031iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)200001-200212

TYPE B:REFER TO ILLUSTRATION

main48609-52050iNCP13,NLP10..JPP200101-200212

TYPE C:REFER TO ILLUSTRATION

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNCP13,NLP10..JPP200212

main90303-22049iNCP10,SCP10..JPP199901-200008

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNCP1#,NLP10,SCP10..JPP199901-200212

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52010iNCP10,SCP10..JPP199901-200002

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52010iNCP10,SCP10..JPP199901-200002

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iNCP10,SCP10..JPP199901-200003

main48684-52010iNCP13,NLP10..JPP200212

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iNCP10,SCP10..JPP199901-200003

main48684-52010iNCP1#,NLP10,SCP10..JPP200003-200212

48811BAR, STABILIZER, FRONT

main48811-52010iSCP10..JPP199901-199903

main48811-52011iSCP10..JPP199903-200002

main48811-52021iNCP1#,NLP10..JPP199908-200212

main48811-52040iSCP10..JPP..TSGS200002-200212

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52010×2iSCP10..JPP199901-199903

main48815-52020×2iSCP10..JPP..TSGS200002-200212

main48815-52030×2iNCP13,NLP10..JPP200212

48817CUSHION, FRONT STABILIZER

main48817-52010×8iNCP1#,NLP10,SCP10..JPP199901-200212

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02179×8iNCP13,NLP10..JPP200212

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02178×2iNCP13,NLP10..JPP200212

48817FNUT(FOR FRONT STABILIZER BAR)

main94182-10800×4iNCP1#,NLP10,SCP10..JPP199901-200212

48819ABOLT, FRONT STABILIZER

main48819-52010×2iNCP1#,NLP10,SCP10..JPP199901-200212

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52010iSCP10..JPP..TSGS200002-200212

main48824-52030iNCP10,SCP10..JPP199903-200002

main48824-52031iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)200009-200212

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52010iSCP10..JPP..TSGS200002-200212

main48824-52030iNCP10,SCP10..JPP199903-200002

main48824-52031iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)200009-200212

9011908C52

main90119-08C52

9017808006

main90178-08006

9017808010

main90178-08010

9161160822

main91611-60822

33 parts on this diagram · 1 diagram in section
