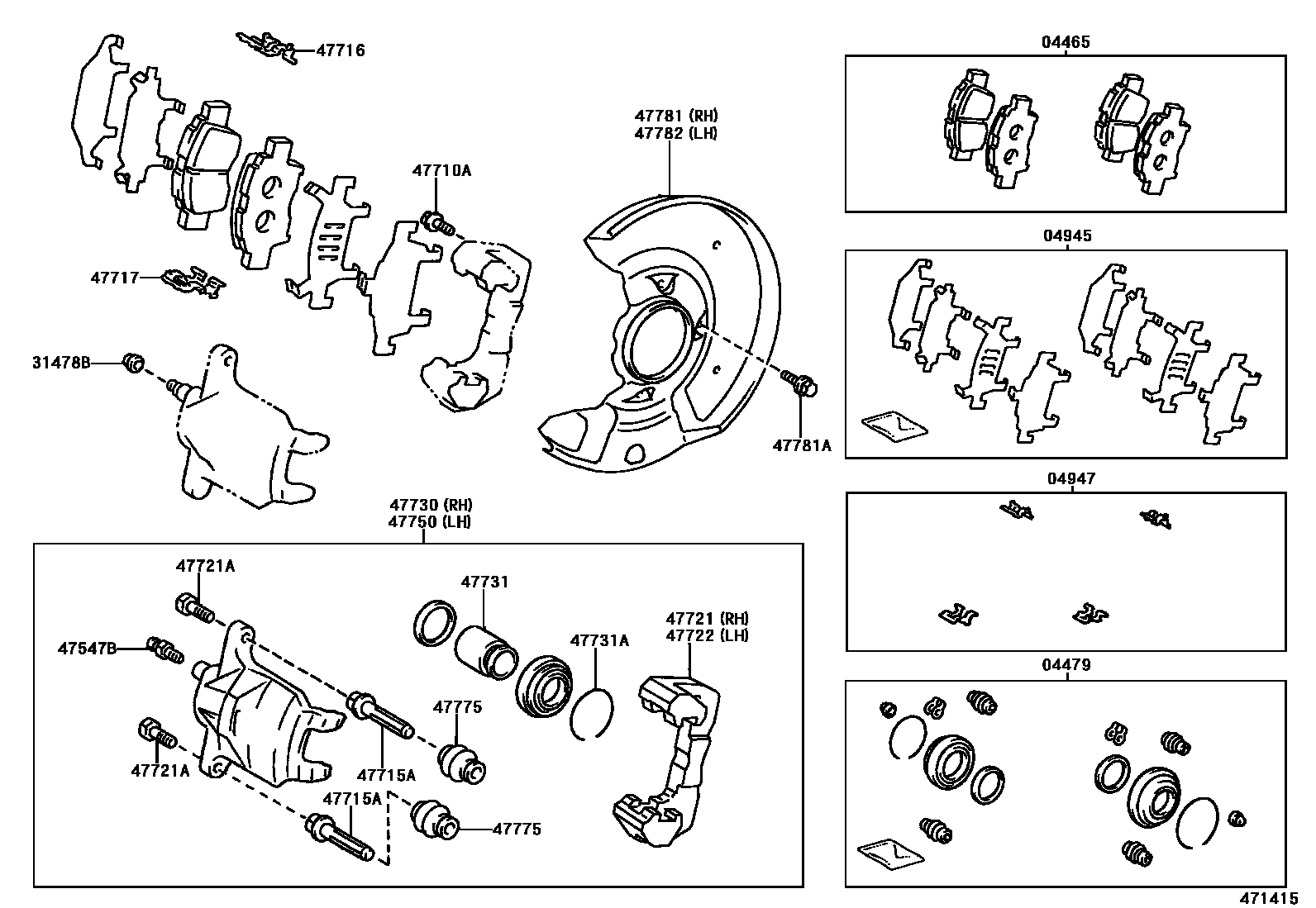

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-17100iNCP13..JPP200101-200112

MARK NBK PN540H

main04465-17140iNCP13..JPP; NLP10..JPP200212

MARK NBK PN540H; MARK NBK PN540H,W(REAR DISC BRAKE)

main04465-52010iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200010

W(REAR DISC BRAKE)

main04465-52052iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-200001

MARK NBK PN532H

main04465-52070iNCP10,SCP10..JPP..(LUNA,SOL,TRSTD)199901-200001

MARK NBK PN540H

main04465-52140iNLP10..JPP200311

MARK NBK PN540H

main04465-59020iNCP10,SCP10..JPP200001-200011

MARK NBK PN540H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52020iNCP1#,NLP10,SCP10..JPP199903-200212

main04479-59010iSCP10..JPP199901-199903

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP13..JPP; NLP10..JPP200212

W(REAR DISC BRAKE)

main04945-52010iNCP10,NLP10,SCP10..JPP199903-200212

main04945-59010iSCP10..JPP199901-199903

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iNCP13..JPP; NLP10..JPP200212

W(REAR DISC BRAKE)

main04947-52020iNLP10..JPP200212

main04947-59010iSCP10..JPP199901-199903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP1#,NLP10,SCP10..JPP199901-200212

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP1#,NLP10,SCP10..JPP199901-200212

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP1#,NLP10,SCP10..JPP199901-200212

*12-1.25PX27.5-23.8

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP1#,NLP10,SCP10..JPP199901-200212

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52010×2iNCP10,NLP10,SCP10..JPP199901-200212

main47716-52020×2iNCP13..JPP; NLP10..JPP200212

W(REAR DISC BRAKE)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52010×2iNLP10..JPP200212

main47717-52020×2iNCP13..JPP200101-200212

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52010iNCP10,NLP10,SCP10..JPP199901-200212

main47721-52020iNCP13..JPP; NLP10..JPP200212

W(REAR DISC BRAKE)

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP1#,NLP10,SCP10..JPP199901-200212

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52010iNCP10,NLP10,SCP10..JPP199901-200212

main47722-52020iNCP13..JPP; NLP10..JPP200212

W(REAR DISC BRAKE)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52010iNLP10..JPP200212

main47730-52020iNCP13..JPP200101-200212

47731PISTON, FRONT DISC BRAKE

main47731-52010×2iNCP1#,NLP10,SCP10..JPP199901-200212

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iNCP13,NLP10..JPP200212

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52010iNCP10,NLP10,SCP10..JPP199901-200212

main47750-52020iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200212

W(REAR DISC BRAKE)

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNCP1#,NLP10,SCP10..JPP199901-200212

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52010iNLP10..JPP200212-200508

main47781-52020iNCP13..JPP; NLP10..JPP200212-200508

W(REAR DISC BRAKE)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP13,NLP10..JPP200212-200508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52010iNLP10..JPP200212-200508

main47782-52020iNCP13..JPP200101-200212

21 parts on this diagram · 1 diagram in section
