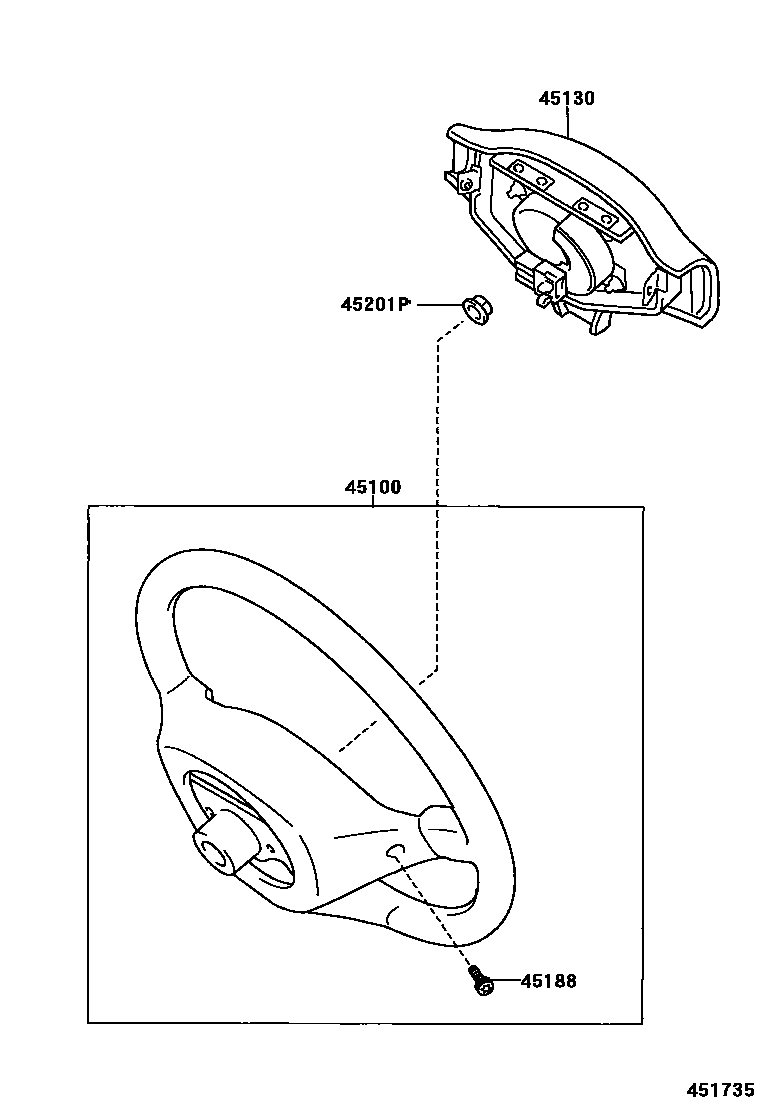

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE, W(STEERING AUDIO SWI

45100WHEEL ASSY, STEERING

main45100-0D090-B0iNLP10..JPP..SOL200212-200508

3-SPOKE,LEATHER,W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98

main45100-0D090-B0iNLP10..JPP..TRSTD200212-200508

3-SPOKE,LEATHER,W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98,99

main45100-0D090-C0iNCP13..JPP200212-200508

3-SPOKE,LEATHER,W(STEERING AUDIO SWITCH),BLACK,TRIM9#

main45100-52010-B0iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)199901-200212

3-SPOKE,URETHANE,MD.GRAY,TRIM1#

sub45100-52010

main45100-52010-G0iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)199901-200212

3-SPOKE,URETHANE,MIST GREEN,TRIM7#

sub45100-52010

main45100-52040-B1iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)199908-200212

3-SPOKE,LEATHER,MD.GRAY,TRIM1#

sub45100-52040

main45100-52040-G1iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)199908-200212

3-SPOKE,LEATHER,MIST GREEN,TRIM7#

sub45100-52040

main45100-52050-C0iNCP13..JPP200101-200212

3-SPOKE,LEATHER,BLACK,TRIM9#

main45100-52070-B1iNLP10..JPP..SOL200212-200508

3-SPOKE,URETHANE,DK.GRAY,TRIM97,98

sub45100-52070

main45100-52070-B1iNLP10..JPP..TRSTD200212-200508

3-SPOKE,URETHANE,DK.GRAY,TRIM97,98,99

sub45100-52070

main45100-52110-C0iNCP13..JPP200212-200508

3-SPOKE,LEATHER,BLACK,TRIM9#

sub45100-52110

45130BUTTON ASSY, HORN

main45130-0W080-B0iNLP10..JPP..SOL200212-200508

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98

main45130-0W080-B0iNLP10..JPP..SOL200212-200508

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98,99

main45130-0W080-C0iNCP13..JPP200212-200508

W(STEERING AUDIO SWITCH),BLACK,TRIM9#

main45130-52010-B0iNCP10,SCP10..JPP..(SOL,TRSTD,TSGS)199901-200001

MD.GRAY,TRIM1#

main45130-52010-G0iNCP10,SCP10..JPP..(SOL,TRSTD,TSGS)199901-200001

MIST GREEN,TRIM7#

main45130-52011-B0iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)200001-200212

MD.GRAY,TRIM1#

main45130-52011-G0iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)200001-200212

MIST GREEN,TRIM7#

main45130-52030-B0iNCP10,SCP10..JPP..(LUNA,SOL)199908-200001

W(LEATHER STEERING WHEEL),SHADOW GRAY,TRIM1#

main45130-52030-B1iSCP10..JPP..SOL199901-199908

W(LEATHER STEERING WHEEL),MD.GRAY,TRIM1#

main45130-52030-G0iSCP10..JPP..SOL199901-199908

W(LEATHER STEERING WHEEL),MIST GREEN,TRIM7#

main45130-52030-H0iNCP10,SCP10..JPP..(LUNA,SOL)199908-200001

W(LEATHER STEERING WHEEL),FRENCH TURQUOISE,TRIM7#

main45130-52031-B0iNCP10,SCP10..JPP..(LUNA,SOL)200001-200005

W(LEATHER STEERING WHEEL),SHADOW GRAY,TRIM1#

sub45130-52031

main45130-52031-H0iNCP10,SCP10..JPP..(LUNA,SOL)200001-200005

W(LEATHER STEERING WHEEL),FRENCH TURQUOISE,TRIM7#

sub45130-52031

main45130-52070-B0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)200005-200212

W(LEATHER STEERING WHEEL),SHADOW GRAY,TRIM1#

sub45130-52070

main45130-52070-C0iNCP13..JPP200101-200212

BLACK,TRIM9#

sub45130-52070

main45130-52070-H0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)200005-200212

W(LEATHER STEERING WHEEL),FRENCH TURQUOISE,TRIM7#

sub45130-52070

main45130-52250-B1iNLP10..JPP..TRSTD200212-200403

DK.GRAY,TRIM97,98,99

sub45130-52251

main45130-52250-B1iNLP10..JPP..TRSTD200212-200403

DK.GRAY,TRIM97,98

sub45130-52251

main45130-52250-C0iNCP13..JPP200212-200403

BLACK,TRIM9#

sub45130-52251

main45130-52251-B1iNLP10..JPP..SOL200404-200508

DK.GRAY,TRIM97,98

sub45130-52870

main45130-52251-B1iNLP10..JPP..TRSTD200404-200508

DK.GRAY,TRIM97,98,99

sub45130-52870

main45130-52251-C0iNCP13..JPP200404-200508

BLACK,TRIM9#

sub45130-52870

45188SCREW, STEERING WHEEL PAD ATTACHING

main90080-14047iNCP13,NLP10..JPP200212

L=18.0,W(STEERING AUDIO SWITCH)

main90148-60007iNCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TS)199903-200212

L=18,W(LEATHER STEERING WHEEL)

main90148-60026iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)199901-200212

L=19.0

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP1#,NLP10,SCP10..JPP199901-200212

4 parts on this diagram · 2 diagrams in section
