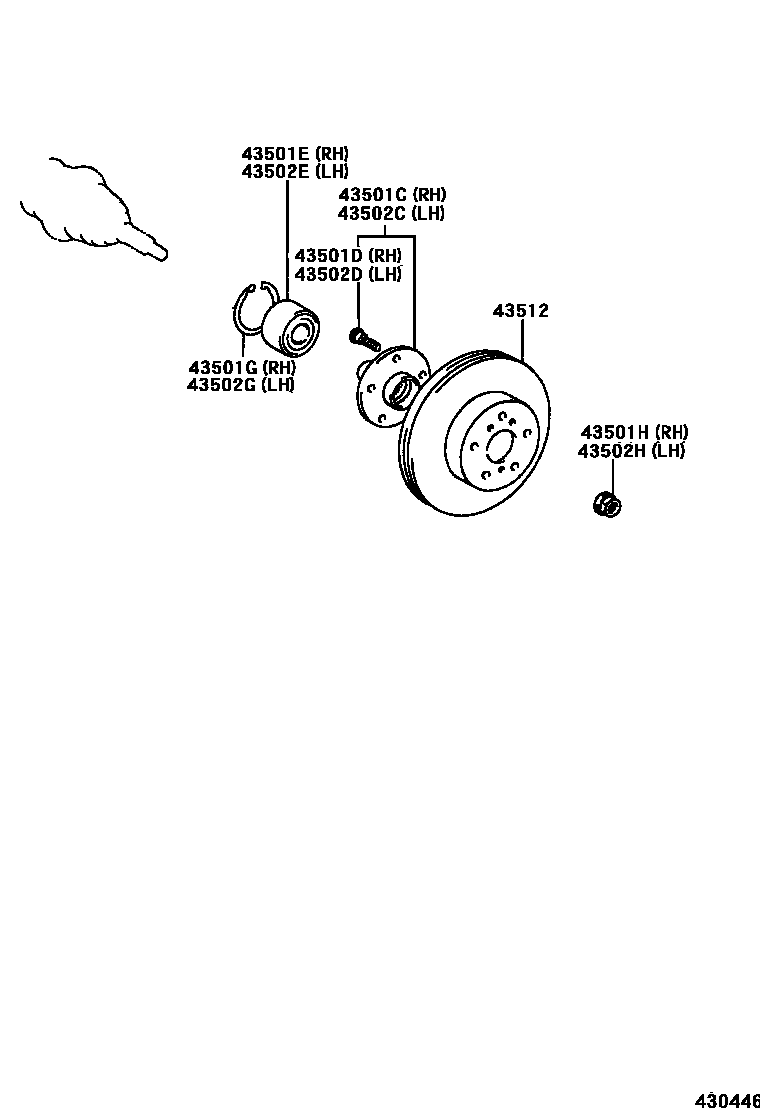

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010iNCP13,NLP10..JPP199901-200212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNCP1#,NLP10,SCP10..JPP199901-200212

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-38021iNCP13,NLP10..JPP200212

main90369-38022iNCP1#,NLP10,SCP10..JPP199901-200212

sub90369-38021

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iNCP1#,NLP10,SCP10..JPP199901-200212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP1#,NLP10,SCP10..JPP199901-200212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010iNCP1#,NLP10,SCP10..JPP199901-200212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNCP1#,NLP10,SCP10..JPP199901-200212

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-38021iNCP13,NLP10..JPP200212

main90369-38022iNCP1#,NLP10,SCP10..JPP199901-200212

sub90369-38021

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iNCP1#,NLP10,SCP10..JPP199901-200212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP13,NLP10..JPP199901-200212

43512DISC, FRONT

main43512-52020iNCP10,SCP10..JPP199901-200009

W(ABS & REAR DRUM BRAKE),OD=235

sub43512-52050

main43512-52040iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)199908-200208

W(ABS & REAR DISC BRAKE),OD=255

sub43512-52090

main43512-52040iNCP13..JPP200101-200212

sub43512-52090

main43512-52040iNCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)200208-200508

W(ABS & REAR DISC BRAKE)

sub43512-52090

main43512-52050iNLP10..JPP200110-200508

main43512-52050iNCP10,SCP10..JPP199901-200001

W/O(ABS)

main43512-52050iNCP10,SCP10..JPP200009-200212

W(ABS & REAR DRUM BRAKE),OD=235

11 parts on this diagram · 1 diagram in section
