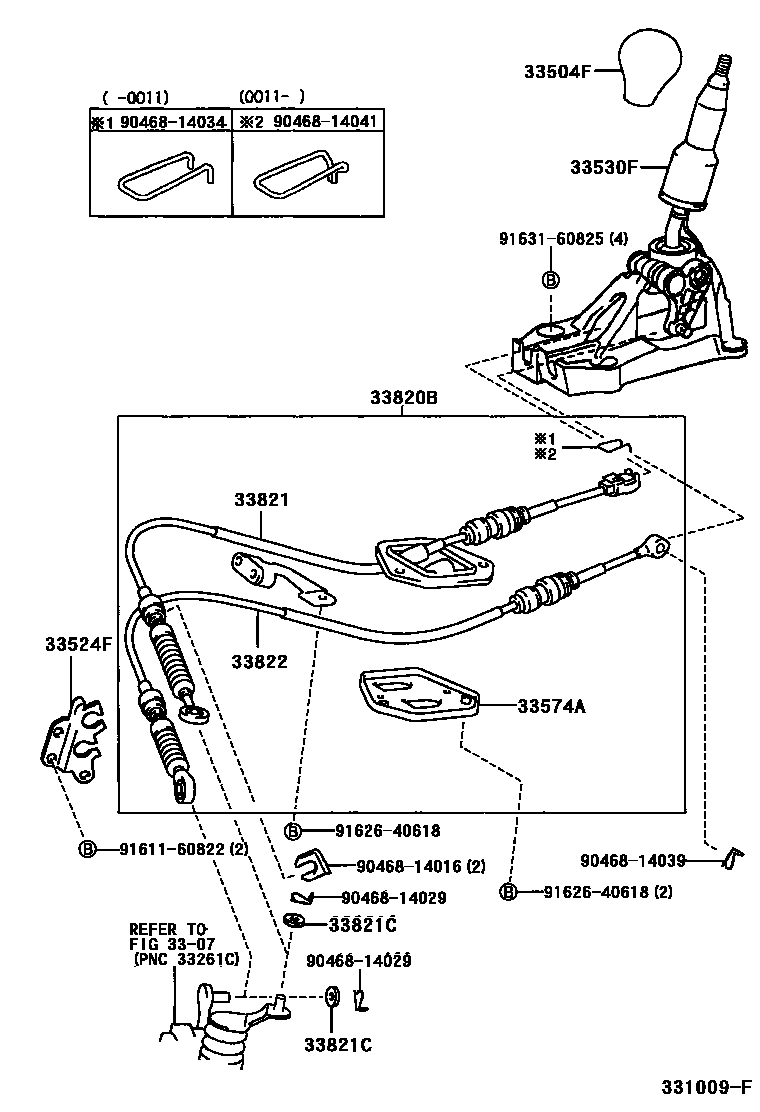

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B6iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)..5F199901-200212

BLUE GRAY,TRIM1#

sub33504-12180

main33504-12180-G4iNCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)..5F199901-200212

MIST GREEN,TRIM7#

sub33504-12180

main33504-13010-B0iNLP10..JPP..TRSTD200212-200508

DK.GRAY,TRIM97,98,99

sub33504-13010

main33504-13041-B0iNLP10..JPP..SOL200311-200508

DK.GRAY,TRIM97,98

sub33504-52051

main33504-13060-B2iNLP10..JPP..SOL200212-200310

DK.GRAY,TRIM97,98

sub33504-13061

main33504-13061-B2iNLP10..JPP..SOL200310-200311

DK.GRAY,TRIM97,98

sub33504-13061

main33504-52010-B0iNCP10,SCP10..JPP..(LUNA,SOL)..5F199908-200101

STEERING WHEEL MATERIAL = LEATHER,SHADOW GRAY,TRIM1#

sub33504-13041

main33504-52010-B1iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)..5F200101-200212

STEERING WHEEL MATERIAL = LEATHER,DK.GRAY,TRIM1#

sub33504-13041

main33504-52010-H0iNCP10,NLP10,SCP10..JPP..(LUNA,SOL)..5F199908-200212

STEERING WHEEL MATERIAL = LEATHER,FRENCH TURQUOISE,TRIM7#

sub33504-13041

main33504-52020-C0iNCP13..JPP200101-200212

BLACK,TRIM9#

main33504-52050-C0iNCP13..JPP200212-200310

BLACK,TRIM9#

sub33504-52051

main33504-52051-C0iNCP13..JPP200310-200508

BLACK,TRIM9#

main33542-52010-B0iNCP10..JPP..RHD..4FC199908-200212

BLUE GRAY,TRIM1#

main33542-52010-G0iNCP10..JPP..RHD..4FC199908-200212

MIST GREEN,TRIM7#

main33542-52020-B0iNCP10..JPP..LHD..4FC199908-200212

BLUE GRAY,TRIM1#

main33542-52020-G0iNCP10..JPP..LHD..4FC199908-200212

MIST GREEN,TRIM7#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52010iNCP1#,NLP10..JPP..5F199908-200212

main33524-52030iSCP10..JPP199901-200212

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52010iNLP10..JPP..TRSTD200212

TYPE A:REFER TO ILLUSTRATION

main33530-52010iNCP10,NLP10,SCP10..JPP..5F199901-200212

main33530-52020iSCP10..JPP..(LUNA,SOL,TRSTD)199901-200109

W(FREE TRONIC)

sub33530-52021

main33530-52021iSCP10..JPP..(LUNA,SOL,TRSTD)200109-200212

W(FREE TRONIC)

main33530-52040iNCP13..JPP200101-200212

main33530-52080iNLP10..JPP200212

TYPE B:REFER TO ILLUSTRATION

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-52010iNCP1#,NLP10,SCP10..JPP199901-200212

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52020iNCP10..JPP..5F199908-200103

sub33820-52021

main33820-52021iNCP10,NLP10..JPP..5F200103-200202

sub33820-52022

main33820-52022iNLP10..JPP200202-200212

main33820-52040iNCP10..JPP..4FC199908-200201

sub33820-52280

main33820-52050iSCP10..JPP199901-200103

sub33820-52051

main33820-52051iSCP10..JPP200103-200212

main33820-52170iNCP13..JPP200101-200103

sub33820-52171

main33820-52171iNCP13..JPP200103-200202

sub33820-52172

main33820-52172iNCP13..JPP200202-200212

main33820-52181iNLP10..JPP..LHD200110-200202

W(STOVE HEATER)

sub33820-52182

main33820-52182iNLP10..JPP..LHD200202-200212

W(STOVE HEATER)

main33820-52280iNCP10..JPP..4FC200201-200212

main33820-52370iNCP13..JPP200212

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-52010iSCP10..JPP199901-200103

sub33821-52011

main33821-52011iSCP10..JPP200103-200212

main33821-52020iNCP10..JPP..5F199908-200103

sub33821-52021

main33821-52021iNCP10,NLP10..JPP..5F200103-200202

sub33821-52022

main33821-52022iNLP10..JPP200202-200212

main33821-52100iNCP13..JPP200101-200103

sub33821-52101

main33821-52101iNCP13..JPP200103-200202

sub33821-52102

main33821-52102iNCP13..JPP200202-200212

main33821-52220iNCP13..JPP200212

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iNCP1#,NLP10,SCP10..JPP..5F199901-200212

OD=28

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-52010iSCP10..JPP199901-200212

main33822-52020iNCP10,NLP10..JPP..5F199908-200202

sub33822-52021

main33822-52021iNLP10..JPP200202-200212

main33822-52050iNCP13..JPP200101-200202

sub33822-52051

main33822-52051iNCP13..JPP200202-200212

main33822-52080iNCP13..JPP200212

9046814016

main90468-14016

9046814029

main90468-14029

9046814034

main90468-14034

9046814039

main90468-14039

9046814041

main90468-14041

9161160822

main91611-60822

9162640618

main91626-40618

9163160825

main91631-60825

17 parts on this diagram · 4 diagrams in section
