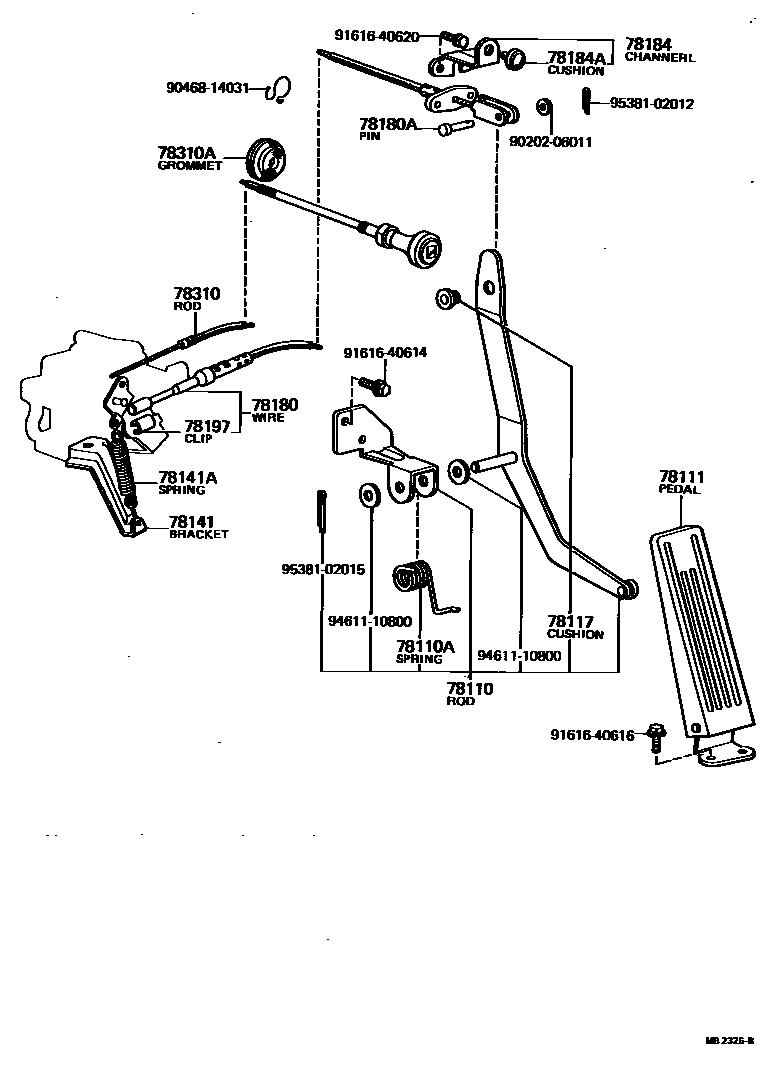

ACCELERATOR LINK
78110ROD ASSY, ACCELERATOR PEDAL
W/SINGLE M/C
W/TANDEM M/C
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
LH
RH
78111PEDAL, ACCELERATOR
78117CUSHION (FOR ACCELERATOR ROD)
W/TANDEM M/C
78141BRACKET, ACCELERATOR WIRE RETURN SPRING
78180WIRE ASSY, ACCELERATOR
W/SINGLE M/C
W/TANDEM M/C
78180APIN, ACCELERATOR WIRE SET
W/TANDEM M/C
78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
W/SINGLE M/C
78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
W/SINGLE M/C
78197CLIP, ACCELERATOR JOINT BALL
78310AGROMMET, CHOKE CABLE
9020206011
main90202-06011
9046814031
main90468-14031
9161640614
main91616-40614
9161640616
main91616-40616
9161640620
main91616-40620
9461110800
main94611-10800
9538102012
main95381-02012
9538102015
main95381-02015
21 parts on this diagram · 5 diagrams in section
