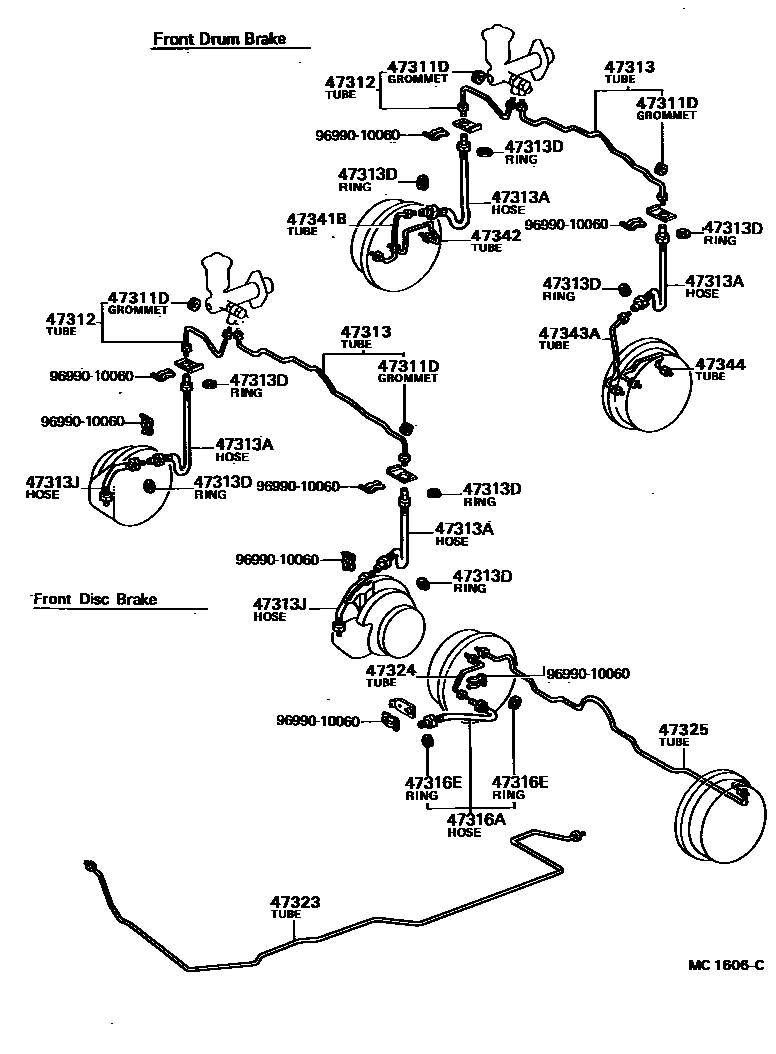

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W/TANDEM M/C
W/TANDEM M/C
47311DGROMMET(FOR FRONT BRAKE TUBE)
OD=15
OD=22
47312TUBE, FRONT BRAKE, NO.2
EUROPE SPEC
W/TANDEM M/C
W/TANDEM M/C
W/TANDEM M/C
47313TUBE, FRONT BRAKE, NO.3
W/TANDEM M/C
W/TANDEM M/C
W/TANDEM M/C
W/TANDEM M/C
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
FR DRUM BRAKE
FR DISC BRAKE
FR DISC BRAKE
FR DRUM BRAKE
47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
L=386
L=402
L=298
L=370
47316ERING, E(FOR REAR FLEXIBLE HOSE)
47323TUBE, REAR BRAKE, NO.3
W/O PV
W/O PV
EUROPE SPEC
EUROPE SPEC
EUROPE SPEC
EUROPE SPEC
W/TANDEM M/C
W/TANDEM M/C & BOOSTER
W/TANDEM M/C & BOOSTER
W/TANDEM M/C
W/TANDEM M/C & BOOSTER
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
FR DRUM BRAKE
FR DRUM BRAKE
47342TUBE, WHEEL CYLINDER, FRONT RH NO.2
FR DRUM BRAKE
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
FR DRUM BRAKE
FR DRUM BRAKE
47344TUBE, WHEEL CYLINDER, FRONT LH NO.2
FR DRUM BRAKE
9699010060
main96990-10060
17 parts on this diagram · 10 diagrams in section
