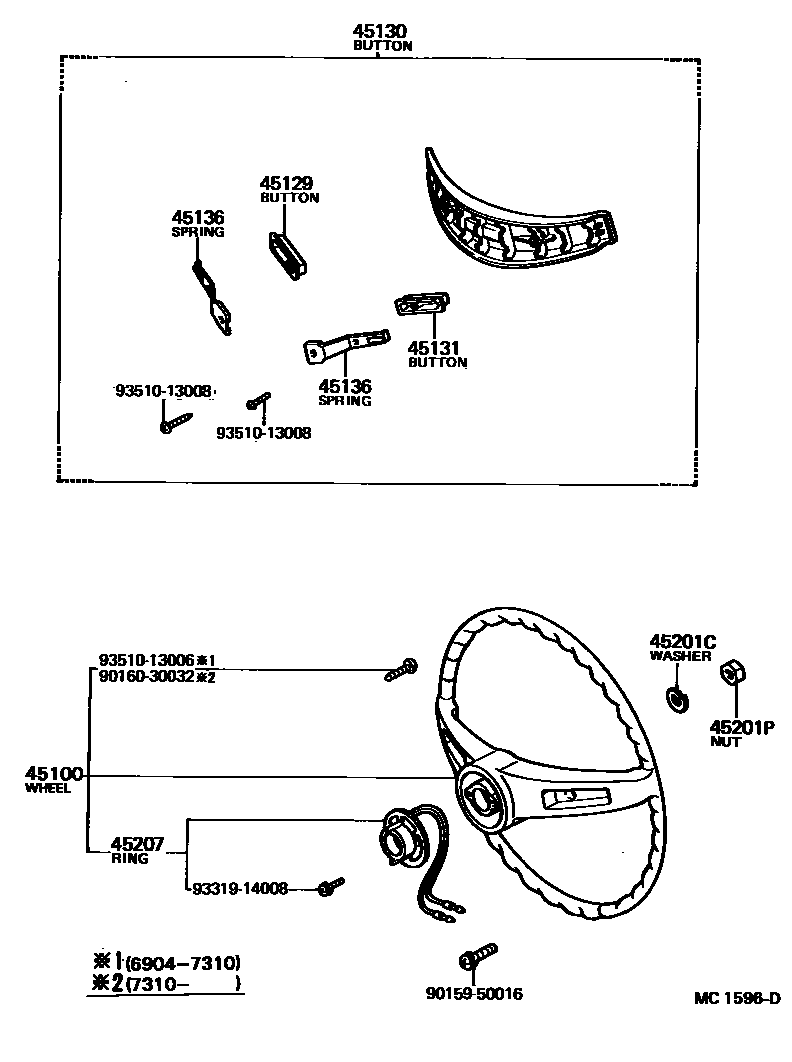

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-10060iKP3#196904-197006

sub45100-10061

main45100-10061iKP3#197006-197309

sub45100-10062

main45100-10062iKP3#197309-198808

45129BUTTON, HORN, NO.2

main45131-10040iKP3#196904-197310

sub45131-10041

main45131-10041iKP3#197310-198007

main45131-10042iKP3#198007-198808

45130BUTTON ASSY, HORN

main45019-10010iKP3#196904-197010

sub45019-10011

main45019-10011iKP3#197010-198007

sub45019-10012

main45019-10012iKP3#198007-198808

main45019-10030iKP30,36..SED,V197310-197809

EUROPE SPEC

sub45019-10031

45131BUTTON, HORN, NO.1

main45131-10040iKP3#196904-197310

sub45131-10041

main45131-10041iKP3#197310-198007

main45131-10042iKP3#198007-198808

45136PLATE, HORN BUTTON CONTACT

main45146-10020iKP3#196904-198808

45201CWASHER, SPRING(FOR STEERING WHEEL SET)

main90204-12029iKP3#196904-198808

45201PNUT, STEERING WHEEL SET

main94125-41200iKP3#196904-198808

45207RING, HORN CONTACT

main45018-10010iKP3#196904-197006

sub45018-10011

main45018-10011iKP3#197006-197309

main45018-10012iKP3#197309-198808

9015950016

main90159-50016

9016030032

main90160-30032

9331914008

main93319-14008

9351013006

main93510-13006

9351013008

main93510-13008

13 parts on this diagram · 1 diagram in section
