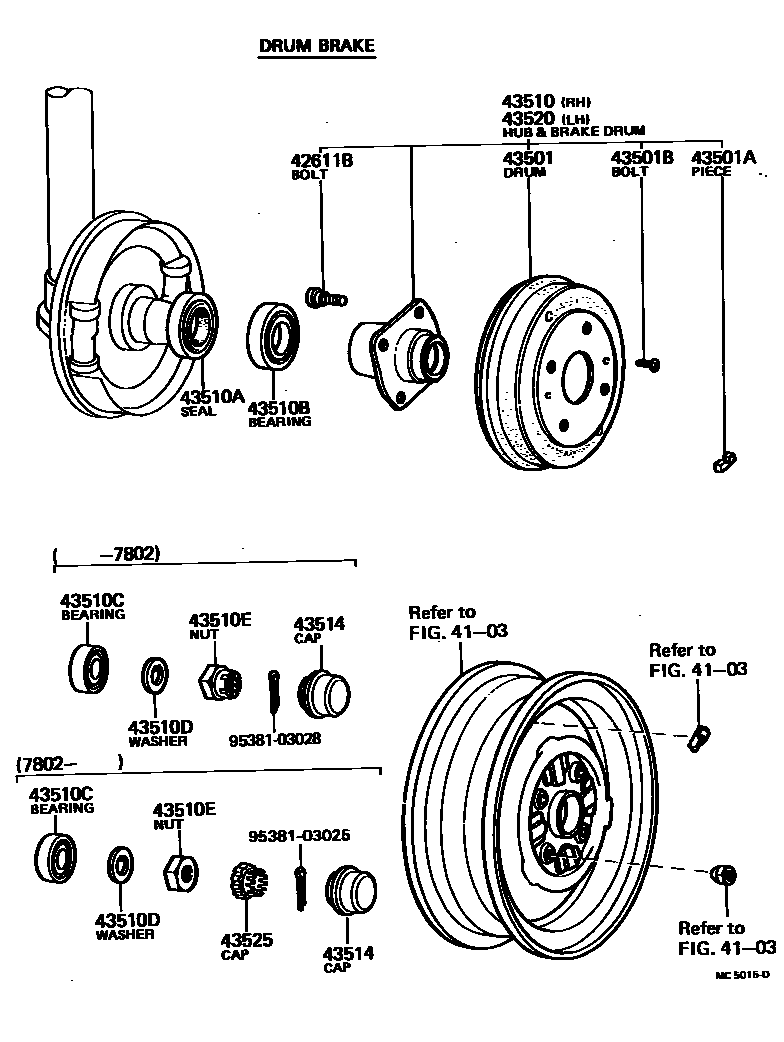

FRONT AXLE HUB

0001 1 0002 1

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021iKP3#196904-197410

*12-1.5PX38-24

sub90942-02035

main90942-02032iKP3#197410-197703

*12-1.5PX38-25.5

sub90942-02035

main90942-02035iKP3#197703-198306

*12-1.5PX36-23.5,DRUM BRAKE

sub90942-02047

main90942-02036iKP30,36197703-197802

*12-1.5PX33-20.5,DISC BRAKE

sub90942-02048

main90942-02047iKP36198306-198808

*12-1.5PX36-23.5

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-12011iKP3#196904-197012

sub43512-12012

main43512-12012iKP3#197012-198808

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01096iKP3#196904-198808

8.5G,8.5G

main90937-01097iKP3#196904-198808

16.5G,16.5G

main90937-01098iKP3#196904-198808

24.5G,24.5G

main90937-01099iKP3#196904-198808

32.5G,32.5G

main90937-01100iKP3#196904-198808

40.5G,40.5G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iKP3#196904-198808

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-12011iKP3#196904-197012

sub43510-12012

main43510-12012iKP3#197012-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108iKP3#197104-198808

main90312-40011iKP3#196904-197104

sub90311-40108

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26027iKP3#196904-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iKP3#196904-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iKP3#196904-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iKP3#197802-198808

sub94125-41600

main90171-16025iKP3#196904-196908

sub90171-16033

main90171-16033iKP3#196908-197802

43514CAP, FRONT HUB GREASE

main43514-12010iKP3#196904-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-12011iKP3#196904-197012

sub43510-12012

main43510-12012iKP3#197012-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iKP3#197802-198808

9538103025

main95381-03025

9538103028

main95381-03028

16 parts on this diagram · 2 diagrams in section
