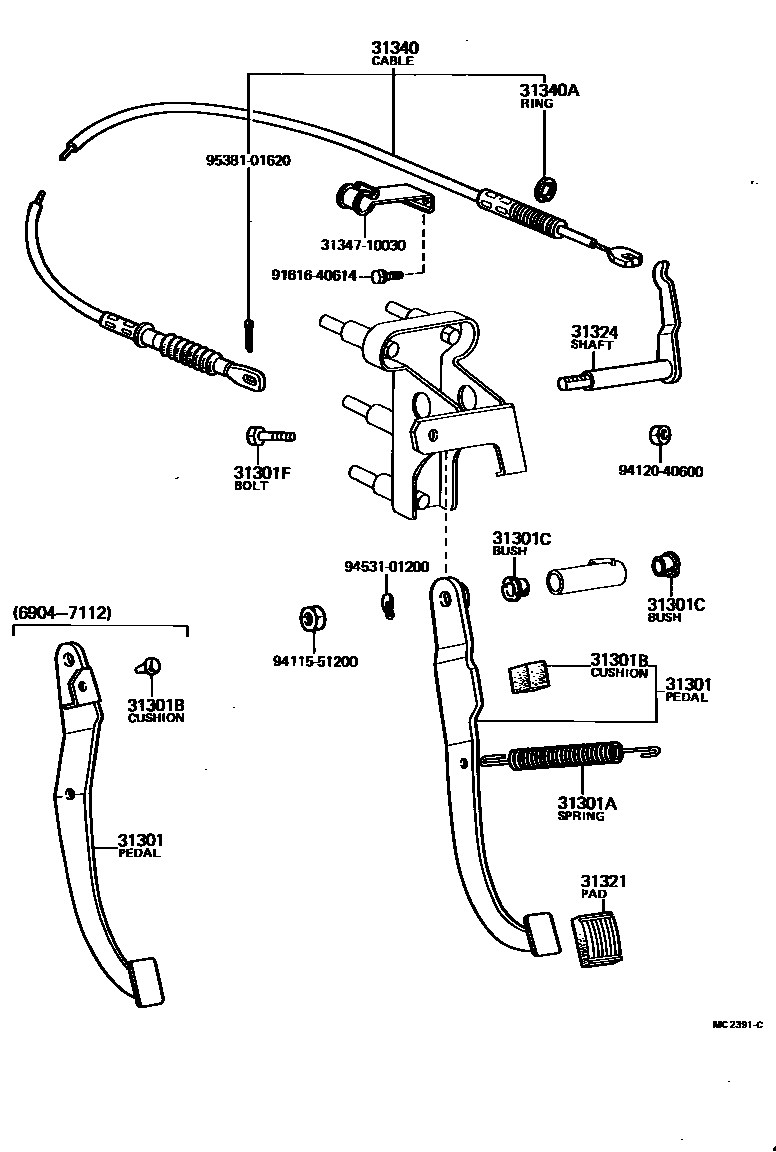

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
W/TANDEM BRAKE M/C
W/TANDEM BRAKE M/C & BOOSTER
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
W/TANDEM BRAKE M/C
ID=16,W/TANDEM M/C & BOOSTER
ID=23,W/TANDEM M/C & BOOSTER
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31340CABLE ASSY, CLUTCH RELEASE
sub31340-10061
sub31340-19087
W/TANDEM BRAKE M/C
W/TANDEM BRAKE M/C & BOOSTER
31340ARING, E(FOR CLUTCH RELEASE CABLE)
3134710030CLAMP, CLUTCH CABLE
main31347-10030
9161640614
main91616-40614
9411551200
main94115-51200
9412040600
main94120-40600
9453101200
main94531-01200
9538101620
main95381-01620
15 parts on this diagram · 3 diagrams in section
