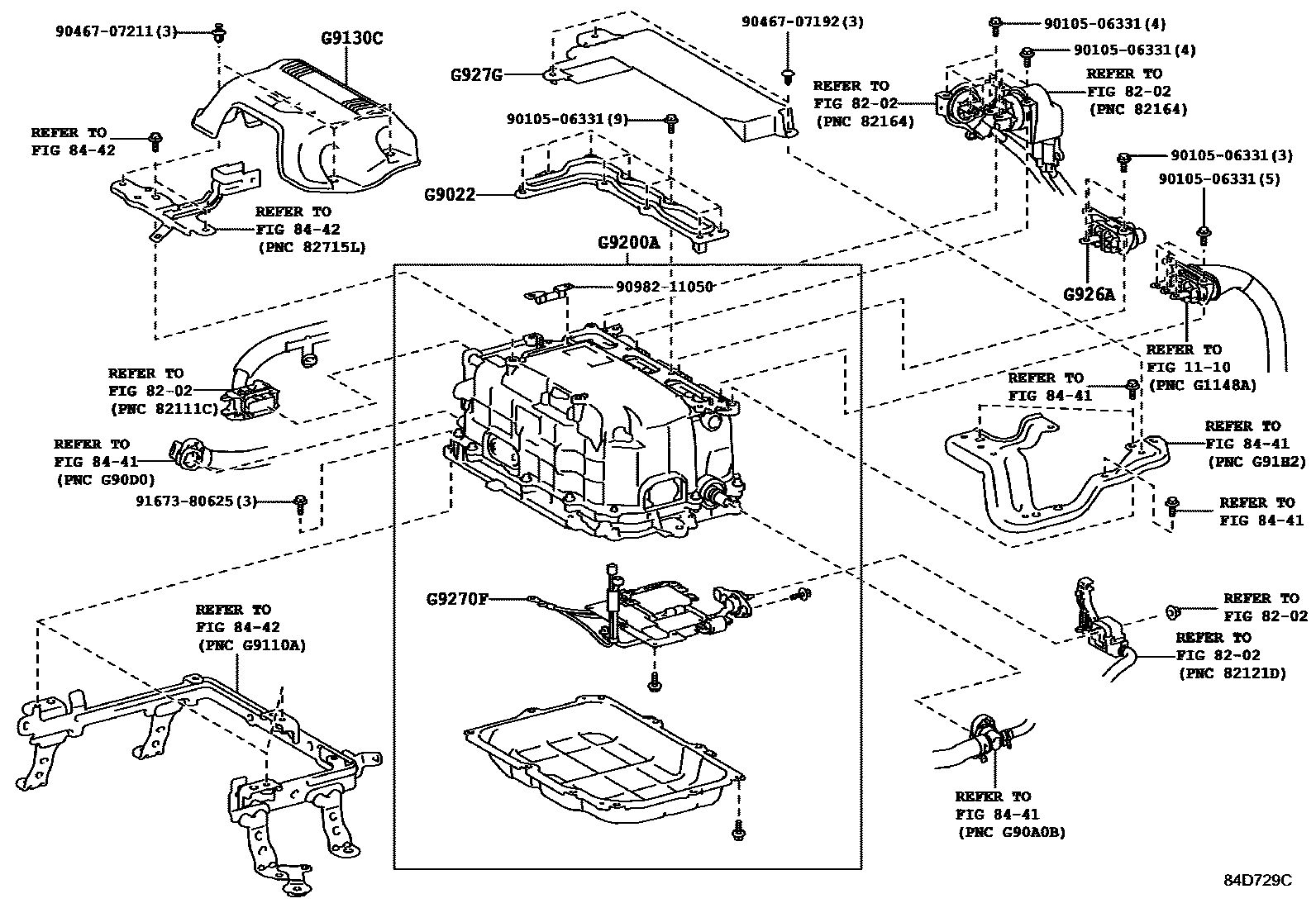

INVERTER(BEV OR FCEV)

1110BEV MOTOR

→ Go to FIG 11-10

8202WIRING & CLAMP

→ Go to FIG 82-02

8441BEV COOLING

→ Go to FIG 84-41

8442DC/DC CONVERTER & CHARGER(BEV OR FCEV)

→ Go to FIG 84-42

G9022COVER SUB-ASSY, INVERTER, UPPER

mainG902247041iKPJ10201209

G9130CCOVER ASSY, INVERTER, RH

mainG913074010iKPJ10201209

G9200AINVERTER ASSY, W/CONVERTER

mainG920074010iKPJ10201209-201212

G926AHOUSING, INVERTER GENERATOR CABLE

mainG926A74010iKPJ10201209

G9270FDC/DC CONVERTER ASSY

mainG927074020iKPJ10201209

G927GCOVER, INVERTER SERVICE

mainG927G74010iKPJ10201209

9010506331

main90105-06331

9046707192

main90467-07192

9046707211

main90467-07211

9098211050

main90982-11050

9167380625

main91673-80625

15 parts on this diagram · 1 diagram in section
