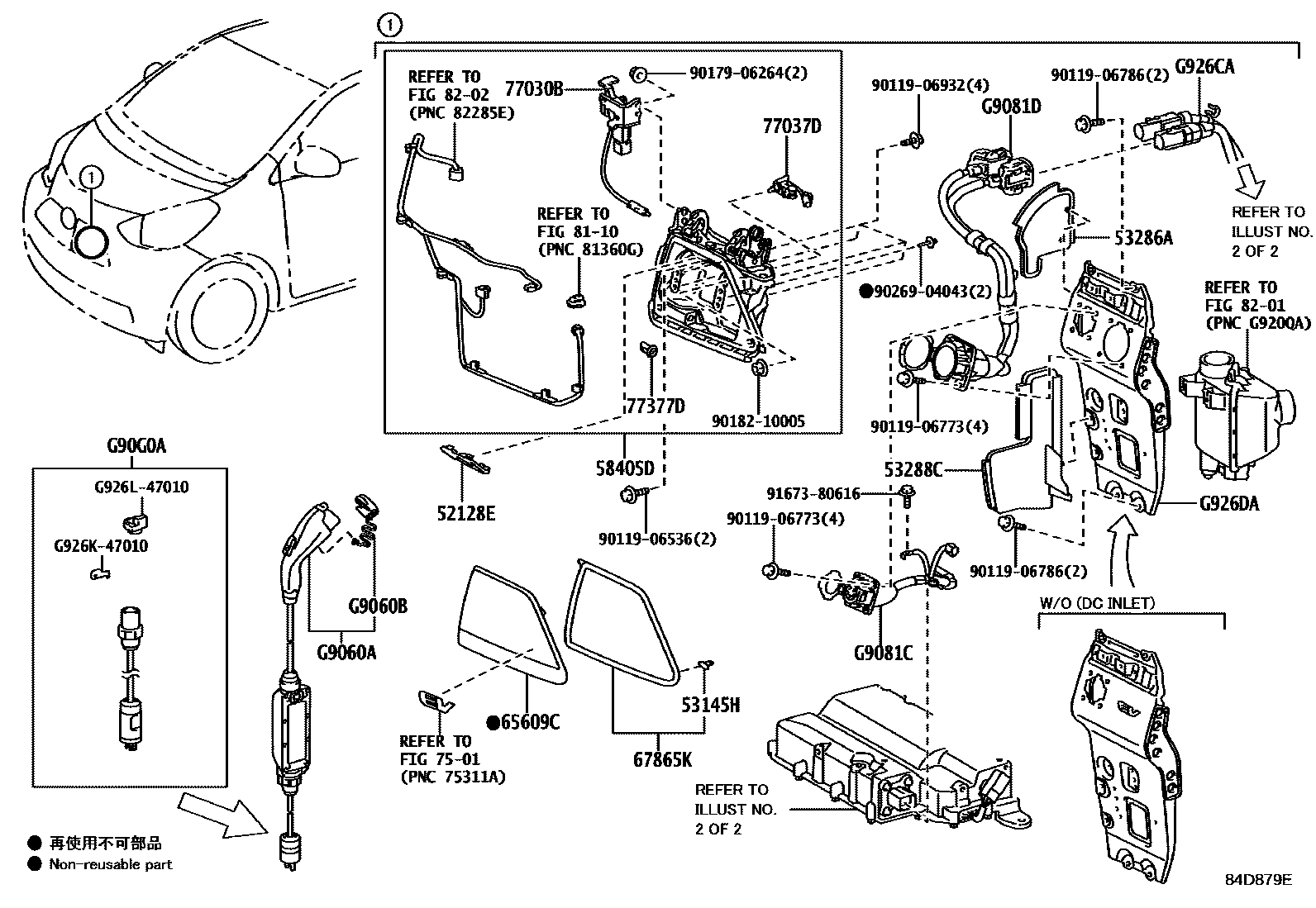

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1LID 0002 1CHARGER

52128ECOVER, FRONT BUMPER HOLE, LH

main52128-74010iKPJ10201209-201212

53145HCLIP, RADIATOR GRILLE

main53145-60030×18iKPJ10201209

53286ASEAL, RADIATOR SIDE AIR, LH

main53286-74030iKPJ10201209

53288CEXTENSION, RADIATOR SUPPORT, LH

main53288-74020iKPJ10201209

58405DLID SUB-ASSY, BATTERY CHARGER CONNECTOR BOX

main58405-74010iKPJ10201209-201212

65609CLID SUB-ASSY, INSPECTION OPENING, L/COLOR

main65609-74900iKPJ10201209-201212

67865KWEATHERSTRIP, SEPARATION DOOR

main67865-74010iKPJ10201209-201212

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-74010iKPJ10201209-201212

77037DLOCK SUB-ASSY, CHARGING PORT OPENING LID

main77037-74010iKPJ10201209-201212

77377DRETAINER, CHARGING PORT OPENING LID LOCK

main77377-74010iKPJ10201209-201212

8110SPOT LAMP

→ Go to FIG 81-10

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG906047200iKPJ10201209

BATTERY CHARGE CABLE-WITHOUT

mainG906047210supersedes G906047200iKPJ10201209

BATTERY CHARGE CABLE-EUROPE IEC

mainG906047330supersedes G906047200iKPJ10201209

BATTERY CHARGE CABLE-EUROPE SE

G9060BCOVER, CONNECTOR

main82821-47250iKPJ10201209

BATTERY CHARGE CABLE-WITHOUT

G9081CCABLE, AC CHARGER INLET

mainG908174010iKPJ10201209-201212

G9081DCABLE, DC CHARGER INLET

mainG908174020iKPJ10201209-201212

CHARGER-AC + DC

G90G0APLUG ASSY, CABLE EV CHARGER

mainG906047360iKPJ10201209

ADAPTABLE CHARGING CABLE-EUROPE IEC MENNEKES

mainG90G047040iKPJ10201209

ADAPTABLE CHARGING CABLE-EUROPE SE(STRAIGHT)

mainG90G047050iKPJ10201209

ADAPTABLE CHARGING CABLE-EUROPE SE

mainG90G047060iKPJ10201209

ADAPTABLE CHARGING CABLE-EUROPE ICE

G926CAWIRE, EV CHARGER

mainG926C74010iKPJ10201209

CHARGER-AC + DC

G926DABRACKET, EV CHARGE CONNECTOR

mainG926D74010supersedes G926D74020iKPJ10201209

CHARGER-AC + DC

9011906536

main90119-06536

9011906773

main90119-06773

9011906786

main90119-06786

9011906932

main90119-06932

9017906264

main90179-06264

9018210005

main90182-10005

9026904043

main90269-04043

9167380616

main91673-80616

G926K47010KEY, PLUG CABLE EV CHARGER

mainG926K-47010

G926L47010COVER, PLUG CABLE EV CHARGER

mainG926L-47010

31 parts on this diagram · 2 diagrams in section
