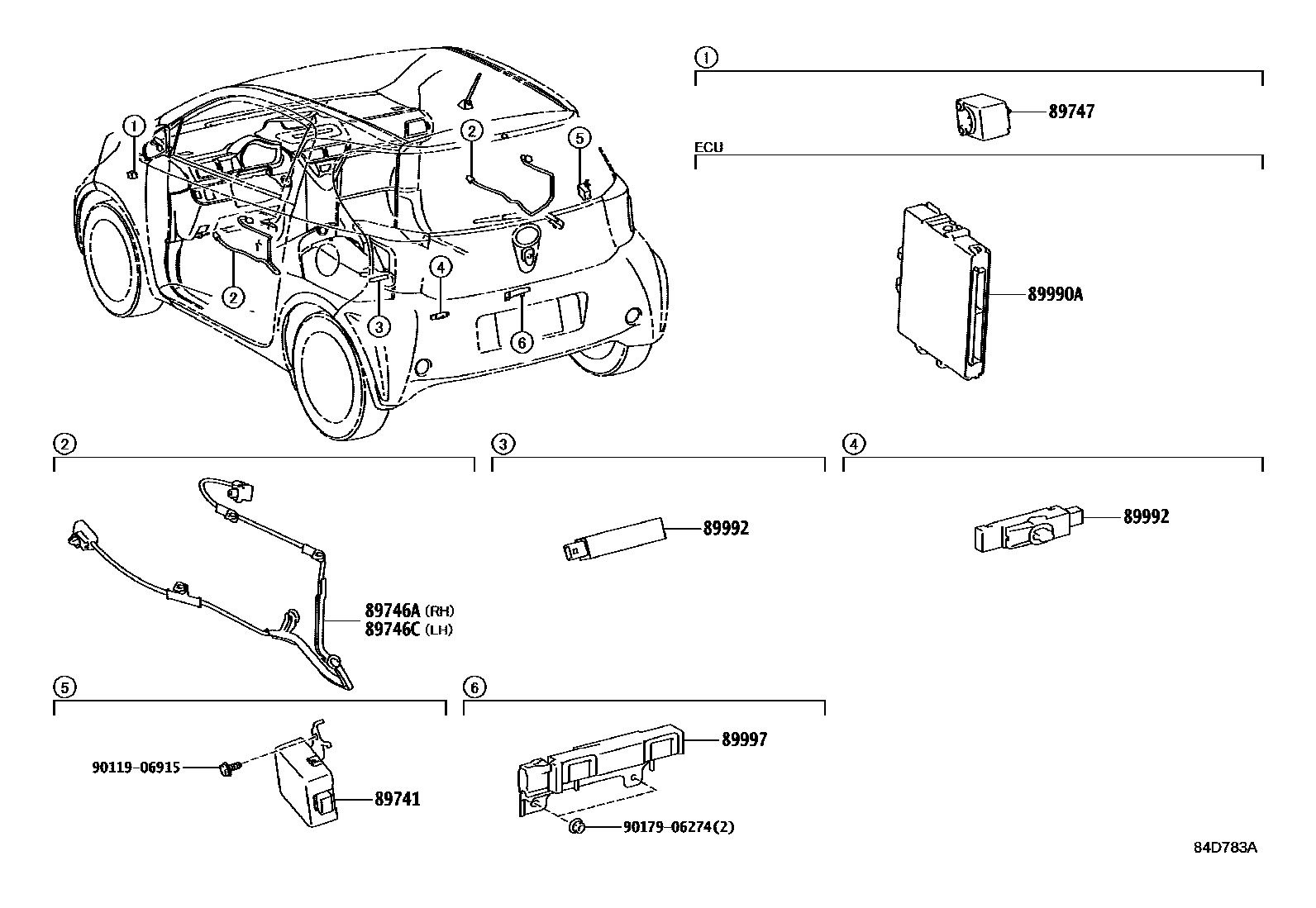

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-74020iKPJ10201209

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-74010iKPJ10201209

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-74020iKPJ10201209

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iKPJ10201209

89990ACOMPUTER ASSY, SMART KEY

main89990-74040iKPJ10201209-201212

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main899A0-47010×2iKPJ10201209

89997ANTENNA, ELECTRICAL KEY

main89997-74010iKPJ10201209

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
