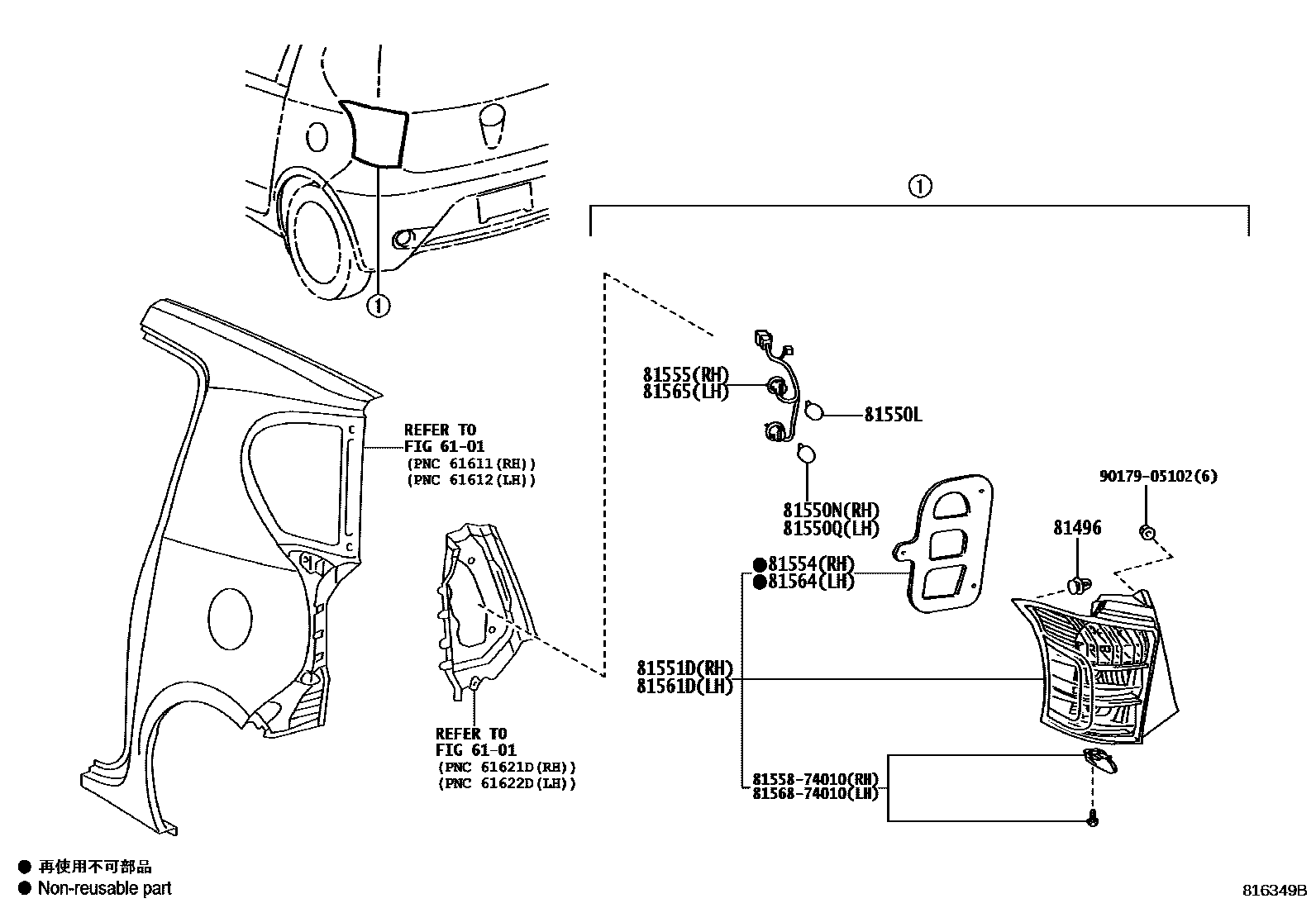

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81551DLENS & BODY, REAR COMBINATION LAMP, RH
sub81551-74141
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
sub81561-74131
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
8155874010SHADE, REAR COMBINATION LAMP, NO.1 RH
main81558-74010
8156874010SHADE, REAR COMBINATION LAMP, NO.1 LH
main81568-74010
9017905102
main90179-05102
14 parts on this diagram · 1 diagram in section
