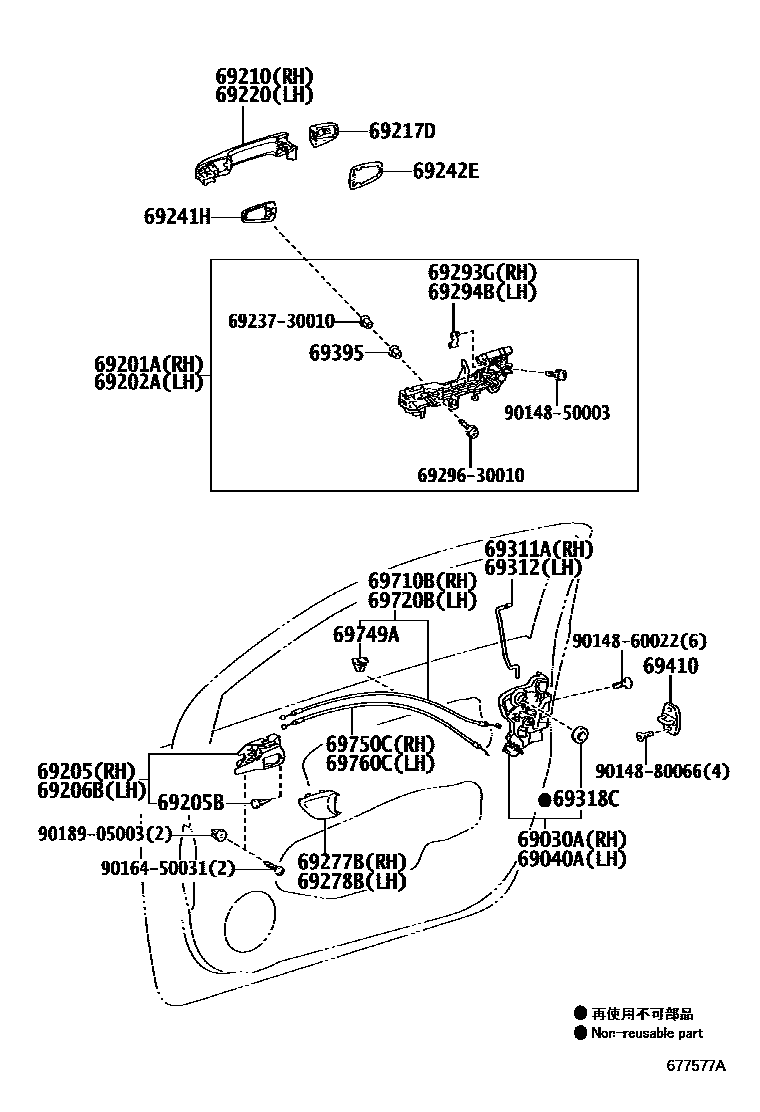

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
LT. BLUE,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LT. BLUE,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
sub69241-30111
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
sub69242-30091
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
33 parts on this diagram · 1 diagram in section
