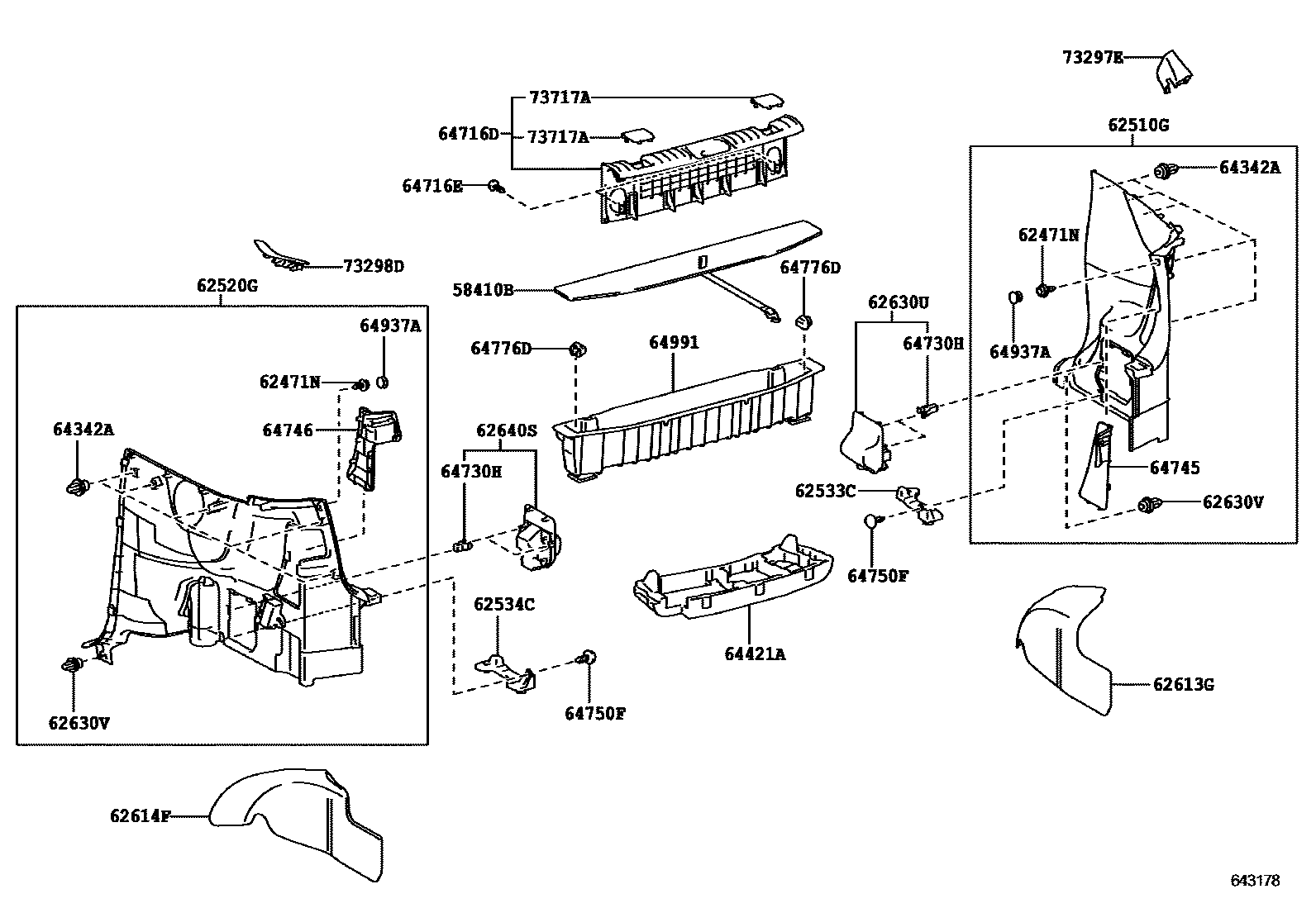

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
BLACK,TRIM2#
62471NFASTENER(FOR REAR PILLAR GARNISH)
62510GTRIM ASSY, SIDE NO.1, RH
BLACK,TRIM2#
62520GTRIM ASSY, SIDE NO.1, LH
BLACK,TRIM2#
62533CBRACKET, DECK SIDE TRIM RH, FRONT
62534CBRACKET, DECK SIDE TRIM LH, FRONT
62613GCOVER ASSY, QUARTER WHEEL HOUSE, RH
62614FCOVER ASSY, QUARTER WHEEL HOUSE, LH
62630UPANEL ASSY, QUARTER TRIM, REAR RH
BLACK,TRIM2#
62630VCLIP (FOR QUARTER REAR TRIM)
62640SPANEL ASSY, QUARTER TRIM, REAR LH
BLACK,TRIM2#
64342ACLIP
64421ATRAY, LUGGAGE COMPARTMENT
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64776DKNOB, SPARE WHEEL COVER
64937ACAP, TONNEAU COVER HOLDER, NO.1
64991BOX, DECK FLOOR, FRONT
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
BLACK,TRIM2#
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
BLACK,TRIM2#
73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
25 parts on this diagram · 1 diagram in section
