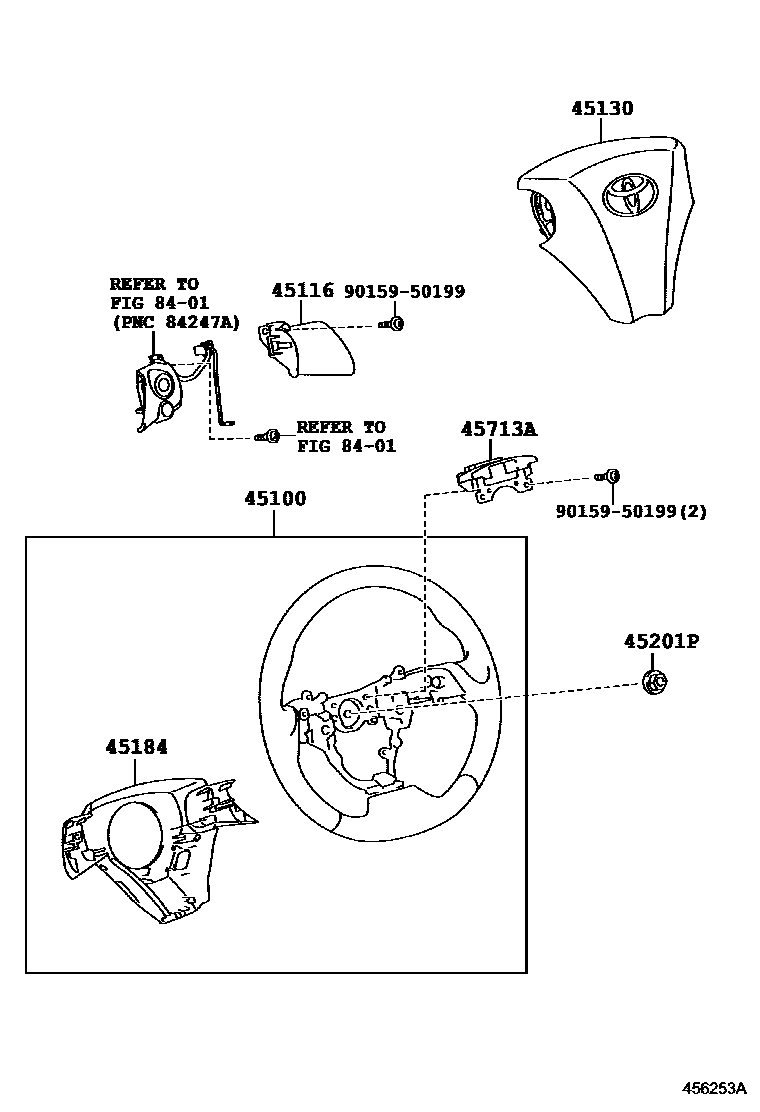

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-74021-C1iKPJ10201209-201212

3-SPOKE,LEATHER,BLACK/MELLOW WHITE,TRIM2#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-74010-C1iKPJ10201209-201212

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-74070-A0iKPJ10201209-201212

WHITE,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-74010-C0iKPJ10201209-201212

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iKPJ10201209

45713ADAMPER, STEERING SHAKE

main45713-74020iKPJ10201209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
