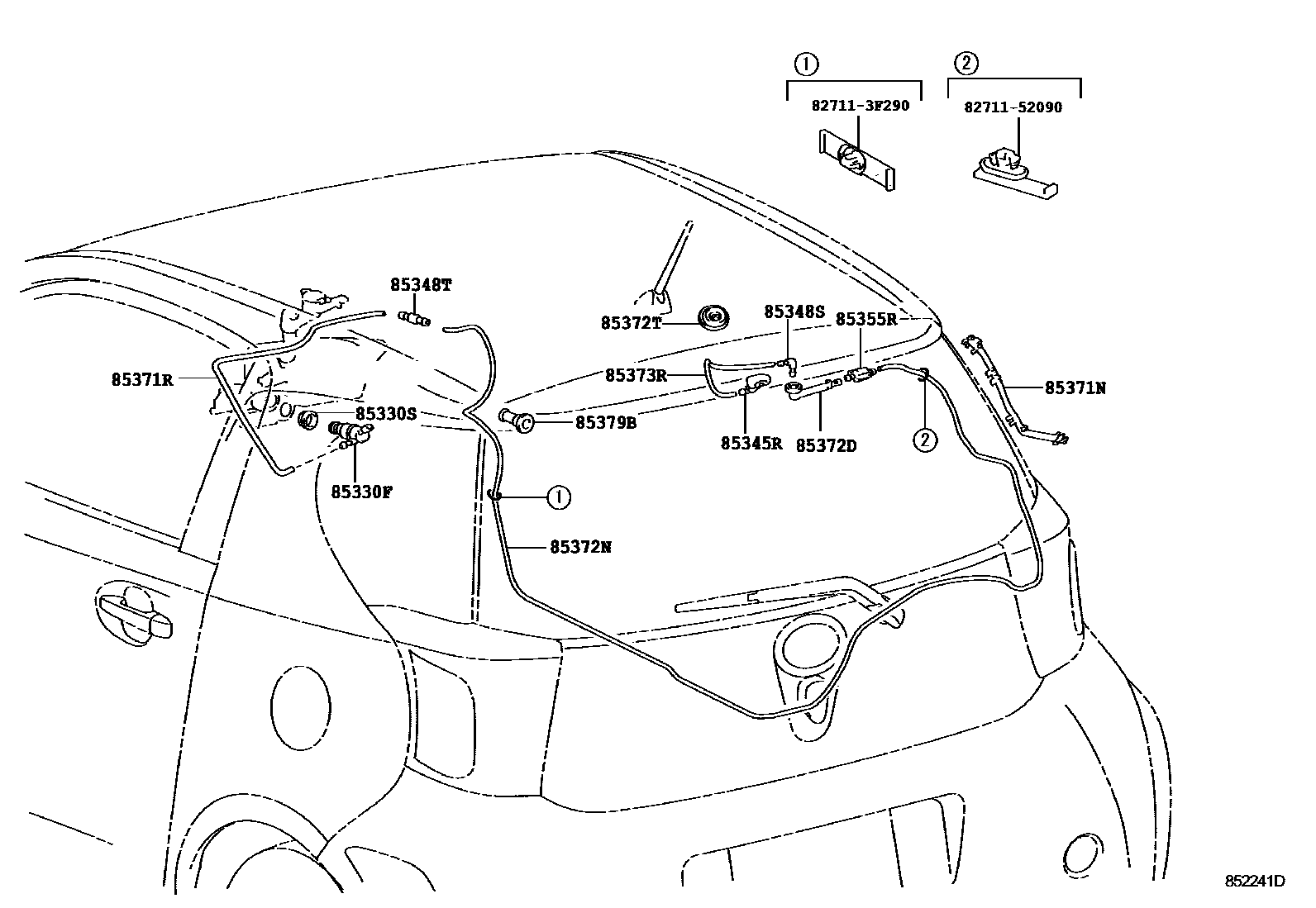

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-42030iKGJ10,NGJ10,NUJ10200811-201405

85330SBUSH, REAR WASHER JAR

main85336-60300iKGJ10,NGJ10,NUJ10200811-201405

85345RNOZZLE, REAR WASHER

main85391-74010iKGJ10,NGJ10,NUJ10200811-201405

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iKGJ10,NGJ10,NUJ10200811-201405

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKGJ10,NGJ10,NUJ10200811-201405

85355RVALVE, REAR WASHER HOSE

main85321-26020iKGJ10,NGJ10,NUJ10200811-201405

85371NCLAMP, REAR WASHER HOSE

main85371-74010iKGJ10,NGJ10,NUJ10200811-201405

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iKGJ10,NGJ10,NUJ10200811-201008

L=1450(*H,L=590)

main90099-62055iKGJ10,NGJ10,NUJ10201008-201405

L=590

85372DGROMMET, REAR WASHER HOSE

main85373-12030iKGJ10,NGJ10,NUJ10200811-201204

main85373-12090iKGJ10,NGJ10201205-201405

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iKGJ10,NGJ10,NUJ10200811-201405

L=4985(*H,L=3656)

85372TGROMMET, WASHER

main85372-20020iKGJ10,NGJ10,NUJ10200811-201405

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iKGJ10,NGJ10,NUJ10200811-201405

L=1000(*H,L=270)

85379BGROMMET, WASHER, A

main85379-12850iKGJ10,NGJ10,NUJ10200811-201405

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

15 parts on this diagram · 1 diagram in section
