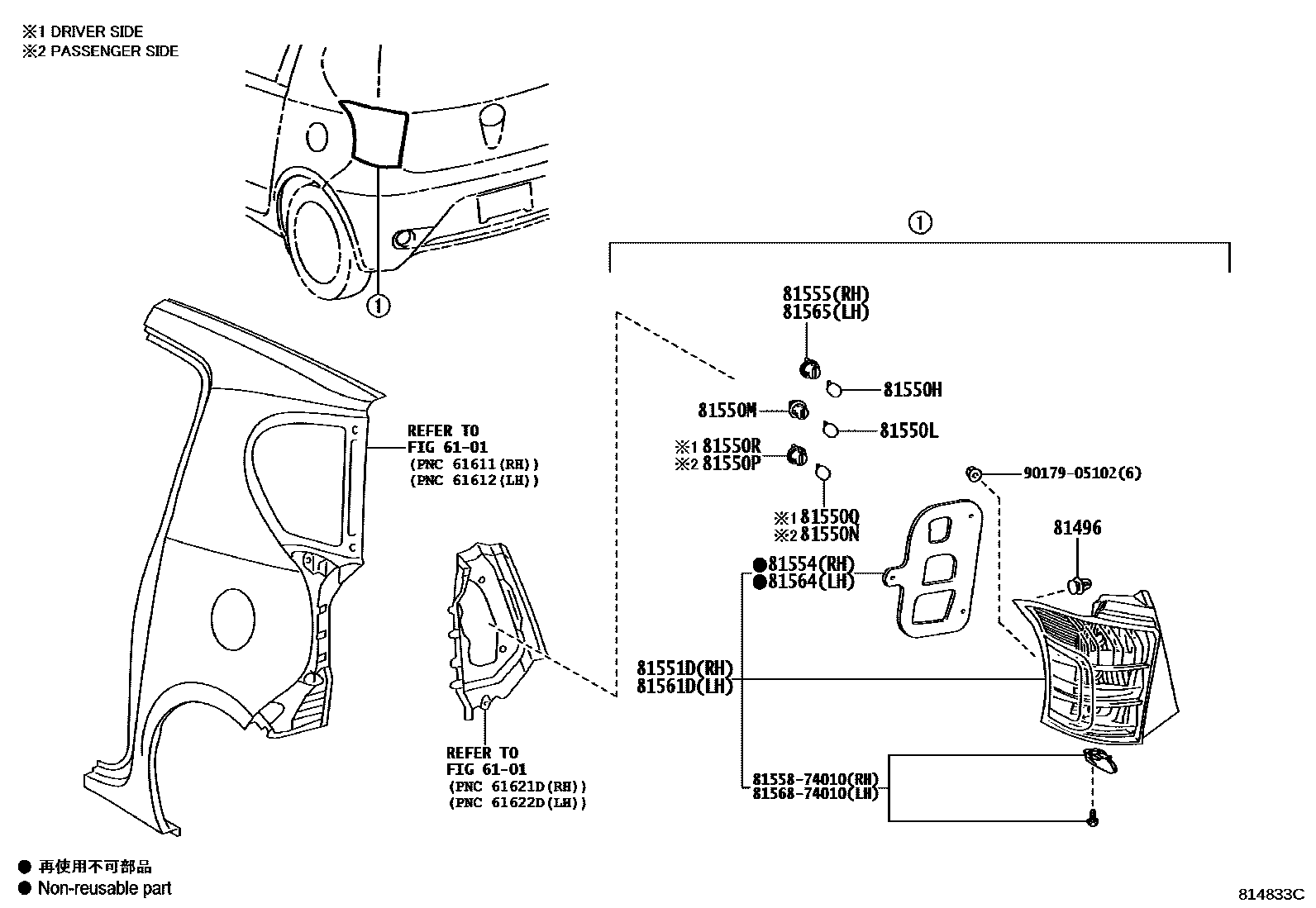

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iKGJ10,NGJ10,NUJ10200811-201405

81550HBULB, TAIL & STOP LAMP

main90981-13044iKGJ10,NGJ10,NUJ10200811-201405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iKGJ10,NGJ10,NUJ10200811-201405

81550MSOCKET, REAR TURN SIGNAL LAMP

main81515-42050iKGJ10,NGJ10,NUJ10200811-201405

81550NBULB, BACK UP LAMP

main90981-13043iKGJ10,NGJ10,NUJ10200811-201405

81550PSOCKET, BACK UP LAMP

main81675-22070iKGJ10,NGJ10,NUJ10200811-201405

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iKGJ10,NGJ10,NUJ10200811-201405

81550RSOCKET, REAR FOG LAMP

main81675-22070iKGJ10,NGJ10,NUJ10200811-201405

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-74010iKGJ10,NGJ10,NUJ10..LHD200811-201208

sub81551-74011

main81551-74011iKGJ10,NGJ10..LHD201208-201405

main81551-74020iKGJ10,NGJ10,NUJ10..RHD200811-201208

sub81551-74021

main81551-74021iKGJ10..RHD201208-201405

main81551-74061iNGJ10..RHD201305-201405

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-74010iKGJ10,NGJ10,NUJ10200811-201405

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21200iKGJ10,NGJ10,NUJ10200811-201405

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-74010iKGJ10,NGJ10,NUJ10..RHD200811-201208

sub81561-74011

main81561-74011iNGJ10..RHD201208-201405

main81561-74020iKGJ10,NGJ10,NUJ10..LHD200811-201208

sub81561-74021

main81561-74021iKGJ10,NGJ10..LHD201208-201405

main81561-74051iNGJ10..RHD201305-201405

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-74010iKGJ10,NGJ10,NUJ10200811-201405

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21200iKGJ10,NGJ10,NUJ10200811-201405

8155874010SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-74010

8156874010SHADE, REAR COMBINATION LAMP, NO.1 LH

main81568-74010

9017905102

main90179-05102

18 parts on this diagram · 1 diagram in section
