HEADLAMP

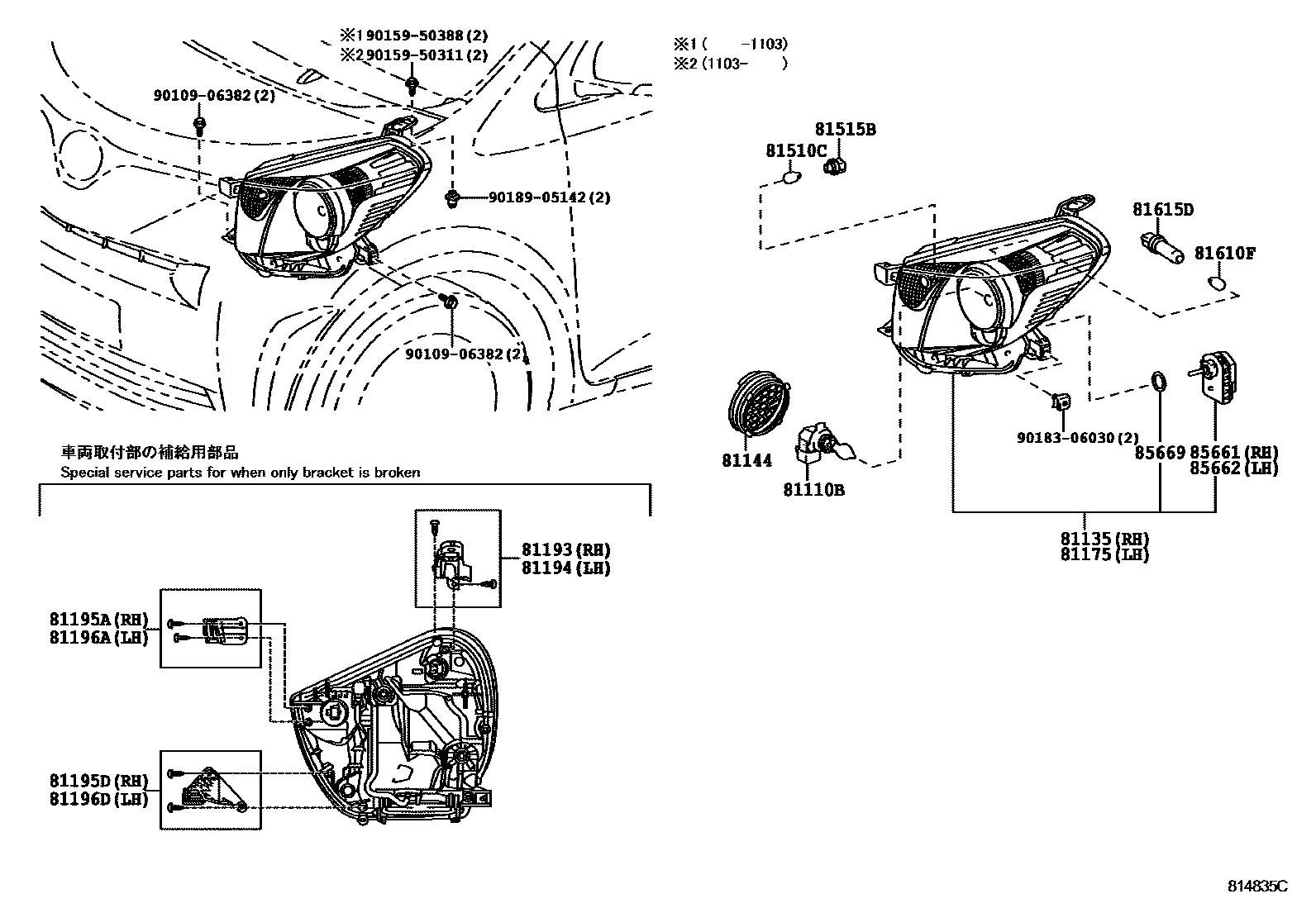

Parts diagram

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13062×2i200811-201405

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-74010i200811-201305

main81130-74030i200811-201405

main81130-74040i201305-201405

main81130-74050i201005-201405

HEADLAMP-HALOGEN(SMOKE)

81144COVER, HEADLAMP, NO.1

main81135-74010i200811-201405

RH

main81175-74010i200811-201405

LH

81175UNIT ASSY, HEADLAMP, LH

main81170-74010i200811-201405

main81170-74030i200811-201405

main81170-74040i201305-201405

main81170-74050i201005-201405

HEADLAMP-HALOGEN(SMOKE)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-74010i200811-201405

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-74010i200811-201405

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-74010i200811-201405

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-74030i200811-201405

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-74010i200811-201405

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-74030i200811-201405

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2i200811-201405

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200811-201405

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200811-201405

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2i200811-201405

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010i200811-201405

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010i200811-201405

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i200811-201405

9010906382

main90109-06382

9015950311

main90159-50311

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

22 parts on this diagram · 1 diagram in section
