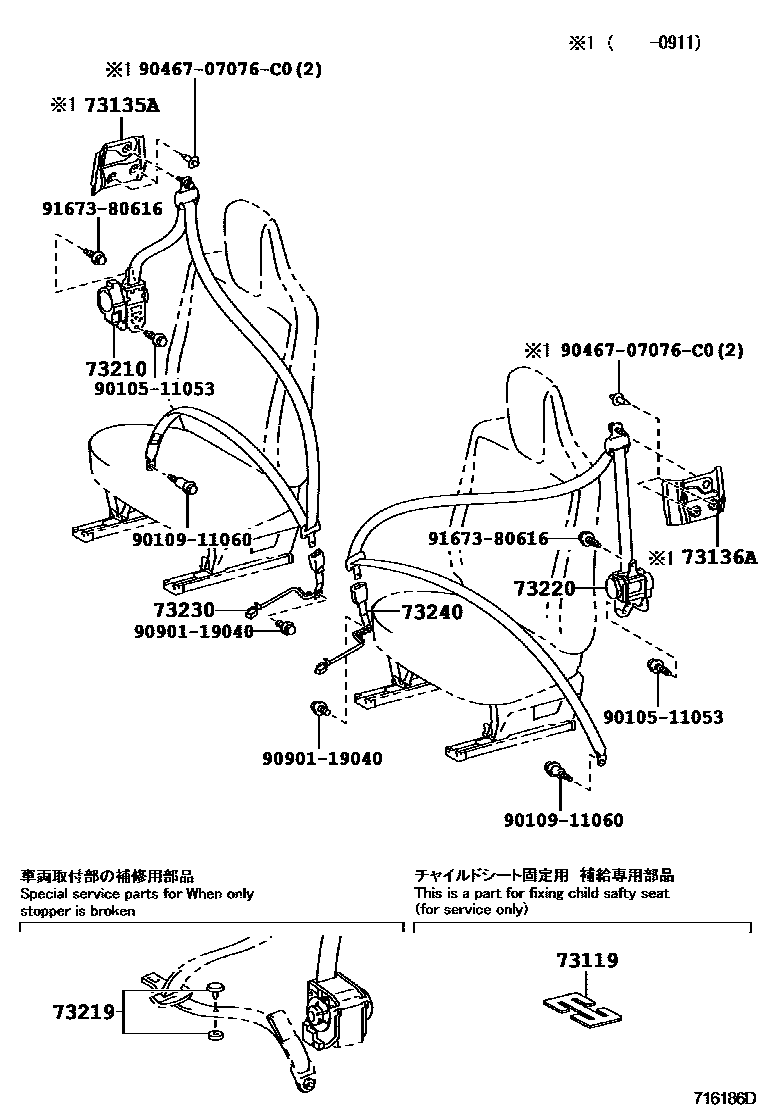

SEAT BELT & CHILD RESTRAINT SEAT
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
73136ACOVER, SHOULDER BELT ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,4#,5#,7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM7#,9#
BLACK,TRIM1#,4#,5#,7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM1#,7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM1#,7#,9#
73219STOPPER, TONGUE PLATE
BLACK
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#,4#,5#,7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM1#,7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM1#,7#,9#
BLACK,TRIM1#,4#,5#,7#
BLACK,TRIM1#,7#; BLACK,TRIM7#,9#
BLACK,TRIM1#,7#; BLACK,TRIM7#,9#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,4#,5#,9#
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,4#,5#,7#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,4#,5#,9#
BLACK,TRIM1#,4#,5#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM1#,4#,5#,7#,9#; FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM1#,4#,5#,9#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#,9#; SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,7#,9#
9010511053
main90105-11053
9010911060
main90109-11060
9046707076C0
main90467-07076C0
9090119040
main90901-19040
9167380616
main91673-80616
13 parts on this diagram · 2 diagrams in section
