EPC Data

FRONT SEAT & SEAT TRACK

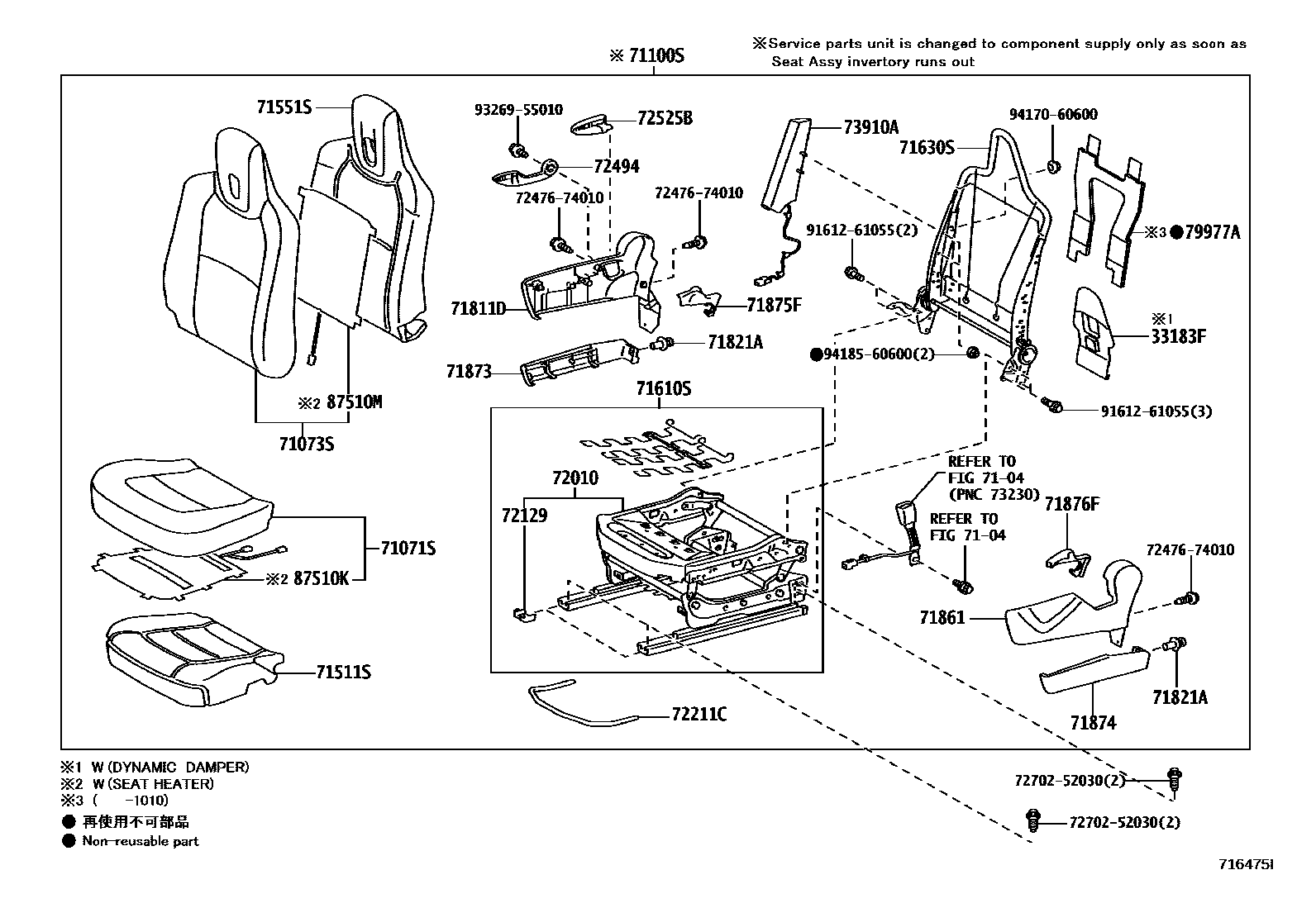

Parts diagram
33183FDAMPER, DYNAMIC
main33183-74010×2i200812-201405
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-74140-E0i200911-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/PLUM,TRIM43,53,57
main71071-74140-E1i200911-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),GREGE/PLUM,TRIM44,54,58
main71071-74150-C0i201005-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM42,70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM42,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM42,70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM42,72,74
main71071-74150-C1i201005-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73,75; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM71,73,75,9#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73,75
main71071-74150-C2i201105-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72
main71071-74150-C3i201105-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73,9#
main71071-74150-C5i201111-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM9#
main71071-74150-C6supersedes 71071-74310-B0i201205-201405
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#
main71071-74150-E0i201001-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57
main71071-74150-E1i201001-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58
main71071-74150-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57
main71071-74150-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58
main71071-74200-C0i201005-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM72,74
main71071-74200-C1i201005-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM71,73,75; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73,75; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM71,73,75; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM71,73,75,9#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73,75
main71071-74200-C2i201105-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM72
main71071-74200-C3i201105-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73,9#
main71071-74200-C5i201111-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM9#
main71071-74200-C6i201305-201405
SEAT COVER MATERIAL-LEATHER,DK.GRAY/BLACK,TRIM7#
main71071-74200-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57
main71071-74200-E1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58
main71071-74200-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/PLUM,TRIM43,53,57
main71071-74200-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE/PLUM,TRIM44,54,58
main71071-74290-B1i201205-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM7#
main71071-74300-B1i201205-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#
main71071-74310-B0i201205-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM7#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-74070-C0i201205-201405
BLACK,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM7#
main71073-74100i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71073-74100-C1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM42,70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM42,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM42,70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM42,72,74
main71073-74100-C2i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM71,73; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM71,73,9#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM73
main71073-74100-E0i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57
main71073-74100-E1i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44,54,58
main71073-74101-C1i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),RED/BLACK,TRIM72
main71073-74101-C2i201009-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM73,9#
main71073-74101-C4i201111-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY/BLACK,TRIM9#
main71073-74101-C5i201205-201405
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#
main71073-74101-E0i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/PLUM,TRIM43,53,57
main71073-74101-E1i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),GREGE/PLUM,TRIM44,54,58
main71073-74120-C0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM72,74
main71073-74120-C1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/LT.GRAY,TRIM71,73; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/LT.GRAY,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/LT.GRAY,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/LT.GRAY,TRIM71,73,9#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/LT.GRAY,TRIM73
main71073-74120-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43,53,57
main71073-74120-E1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),PLUM,TRIM44,54,58
main71073-74121-C0i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),RED/BLACK,TRIM72
main71073-74121-C1i201009-201111
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM73,9#
main71073-74121-C3i201111-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LT.GRAY/BLACK,TRIM9#
main71073-74121-C4i201205-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY/BLACK,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY/BLACK,TRIM7#; SEAT COVER MATERIAL-LEATHER,DK.GRAY/BLACK,TRIM7#
main71073-74121-E0i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/PLUM,TRIM43,53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK/PLUM,TRIM43,53,57
main71073-74121-E1i201009-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE/PLUM,TRIM44,54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE/PLUM,TRIM44,54,58
main71073-74170-C0i201205-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),BLACK,TRIM7#
main71073-74180-C0supersedes 71073-74070-C0i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#; SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY/BLACK,TRIM7#
71100SSEAT ASSY, FRONT RH
main71100-74131-B0i201001-201005
N STD BLACK SEAT,TRIM1#
main71100-74132-B1i201005-201205
N STD BLACK SEAT,TRIM1#
main71100-74132-K1i201005-201205
N STD BLACK SEAT AM,TRIM9#
main71100-74161-B0i201001-201005
N STD BLACK SEAT,TRIM1#
main71100-74162-B1i201005-201301
N STD BLACK SEAT,TRIM1#
main71100-74190-E0i200812-201004
BLACK,TRIM40
main71100-74190-E1i200812-201004
LIGHT,TRIM41
main71100-74252-B0i201305-201405
N STD BLACK SEAT,TRIM1#
main71100-74282-B0i201305-201405
N STD BLACK SEAT,TRIM1#
main71100-74461-H0i201302-201405
DK.GRAY FAB/ODIAS,TRIM7#
main71100-74020-E6supersedes 71100-74130-E0i200811-201001
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74020-E8supersedes 71100-74130-E2i200811-201001
SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74020-F0i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEATDECO BROWN,TRIM50,55; SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74020-F1i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEATDECO BROWN,TRIM51; SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74021-E6i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40; SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74021-E8i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41; SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74021-F0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEATDECO BROWN,TRIM50,55; SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74021-F1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEATDECO BROWN,TRIM51; SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74041-B1i201205-201301
SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),N STD BLACK SEAT,TRIM1#; SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT,TRIM1#
main71100-74041-K0i201005-201008
N STD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD,N STD BLACK SEAT AM,TRIM9#
main71100-74041-K1i201205-201301
SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),N STD BLACK SEATAM,TRIM9#; SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT AM,TRIM9#
main71100-74042-B0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD,N STD BLACK SEAT,TRIM1#; SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),N STD BLACK SEAT,TRIM1#; SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT,TRIM1#
main71100-74042-K0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD,N STD BLACK SEAT AM,TRIM9#; SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),N STD BLACK SEATAM,TRIM9#; SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT AM,TRIM9#
main71100-74060-E6i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74060-E8supersedes 71100-74040-E8i200811-200812
SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74060-F0i200911-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEATDECO BROWN,TRIM50,55; SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74060-F1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74061-B1supersedes 71100-74041-B1i201005-201301
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT,TRIM1#
main71100-74061-K0supersedes 71100-74041-K0i201005-201008
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT AM,TRIM9#
main71100-74061-K1supersedes 71100-74041-K1i201005-201205
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9#
main71100-74062-B0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT,TRIM1#; SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT,TRIM1#
main71100-74062-K0i201302-201405
SEAT COVER MATERIAL-FABRIC&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT AM,TRIM9#
main71100-74110-E3i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74110-E4i200811-201005
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE XPLUM,TRIM44
main71100-74110-F0i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74110-F1i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74110-H0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72,74
main71100-74110-H2i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74111-E0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74111-E1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44
main71100-74111-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74111-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44
main71100-74111-F0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74111-F1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74111-F2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74111-F3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74111-H0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72
main71100-74111-H1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74111-H2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72
main71100-74111-H3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74111-H4i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74111-K0i201009-201105
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK AM,TRIM9#
main71100-74111-K1i201105-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK AM,TRIM9#
main71100-74112-H0i201302-201405
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74120-E3i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER,TRIM43
main71100-74120-E4i200811-201001
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44
main71100-74120-F0i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74120-F1i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74121-E3i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER,TRIM43; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM43
main71100-74121-E4i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER,TRIM44; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER,TRIM44
main71100-74121-F0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74121-F1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74132-K0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD,N STD BLACK SEAT AM,TRIM9#
main71100-74133-K0i201302-201305
N STD BLACK SEAT AM,TRIM9#; SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER),N STD BLACK SEATAM,TRIM9#
main71100-74170-E0supersedes 71100-74160-E0i200812-201001
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74170-E1i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74170-F0supersedes 71100-74160-F0i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEATDECO BROWN,TRIM50,55; SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74170-F1supersedes 71100-74160-F1i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEATDECO BROWN,TRIM51; SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74171-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40; SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74171-E1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41; SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74171-F0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEATDECO BROWN,TRIM50,55; SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74171-F1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEATDECO BROWN,TRIM51; SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74180-E0i200812-201001
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43
main71100-74180-E1i200812-201001
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44
main71100-74180-F0i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74180-F1i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74181-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM43
main71100-74181-E1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),PLUM,TRIM44
main71100-74181-F0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74181-F1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74192-B0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD,N STD BLACK SEAT,TRIM1#
main71100-74200-E0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM40
main71100-74200-E1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LIGHT,TRIM41
main71100-74200-F0supersedes 71100-74190-F0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74200-F1i200911-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEATDECO BROWN,TRIM51; SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74201-B1supersedes 71100-74191-B1i201005-201301
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT,TRIM1#
main71100-74201-K0supersedes 71100-74191-K0i201005-201008
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),N STD BLACK SEAT AM,TRIM9#
main71100-74202-B0supersedes 71100-74192-B0i201302-201405
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),NSTD BLACK SEAT,TRIM1#
main71100-74210-E0i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74210-E1i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44
main71100-74210-F0i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74210-F1i201001-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74210-H0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM70,72,74
main71100-74210-H2i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM71,73
main71100-74211-E0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74211-E1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44
main71100-74211-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74211-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GERGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GERGE X PLUM,TRIM44
main71100-74211-F0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74211-F1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74211-F2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74211-F3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74211-H0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72
main71100-74211-H1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74211-H2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER1 RED/BLACK 360,TRIM72
main71100-74211-H3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74211-H4i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74212-H0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74240-E0i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40
main71100-74240-E1i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41
main71100-74240-F0i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74240-F1i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74250-E0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40
main71100-74250-E1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41
main71100-74250-F0supersedes 71100-74130-F0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74250-F1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74251-B1i201005-201301
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#
main71100-74251-K0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#
main71100-74251-K1i201205-201301
SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT AM,TRIM9#
main71100-74252-K0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#; SEAT COVER MATERIAL-FABRIC,N STD BLACK SEAT AM,TRIM9#
main71100-74260-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74260-E1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44
main71100-74260-F0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74260-F1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74260-H0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM70,72,74; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72,74
main71100-74260-H2i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM71,73; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74261-E0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43
main71100-74261-E1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44
main71100-74261-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43
main71100-74261-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44
main71100-74261-F0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74261-F1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74261-F2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74261-F3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74261-H0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72
main71100-74261-H1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74261-H2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72
main71100-74261-H3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74261-H4i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER,LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74261-K0i201009-201105
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK AM,TRIM9#
main71100-74261-K1i201105-201205
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK AM,TRIM9#
main71100-74262-H4i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER,LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74270-E0i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT,TRIM40
main71100-74270-E1i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT,TRIM41
main71100-74270-F0i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74270-F1i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74280-E0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT,TRIM40
main71100-74280-E1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT,TRIM41
main71100-74280-F0supersedes 71100-74160-F0i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD BLACK SEAT DECO BROWN,TRIM50,55
main71100-74280-F1supersedes 71100-74160-F1i201001-201004
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),STD LIGHT SEAT DECO BROWN,TRIM51
main71100-74281-B1i201005-201301
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#; REAR SEAT-WITHOUT&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT,TRIM1#
main71100-74281-K0supersedes 71100-74162-K0i201005-201008
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#; REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),N STD BLACK SEAT AM,TRIM9#
main71100-74290-E0i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER2 BLACK X PLUM,TRIM43
main71100-74290-E1i201001-201005
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),LEATHER3 GREGE X PLUM,TRIM44
main71100-74290-F0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74290-F1i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74290-H0i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM70,72,74; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM70,72,74
main71100-74290-H2i201005-201008
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM71,73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM71,73
main71100-74291-E0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43
main71100-74291-E1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44
main71100-74291-E2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK X PLUM,TRIM43
main71100-74291-E3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE X PLUM,TRIM44
main71100-74291-F0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74291-F1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74291-F2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER2 BLACK/PLUM DE BR,TRIM53,57
main71100-74291-F3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER3 GREGE/PLUM DE BR,TRIM54,58
main71100-74291-H0i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72
main71100-74291-H1i201009-201105
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74291-H2i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER1 RED/BLACK 360,TRIM72
main71100-74291-H3i201105-201205
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM73
main71100-74291-H4i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74292-H0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#; SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),LEATHER4 GRAY/BLACK 360,TRIM7#
main71100-74420-H1i201205-201301
DK.GRAY FAB/ODIAS,TRIM7#; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74421-H0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74430-H1i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAYFAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY FAB/ODIAS,TRIM7#; SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74431-H0supersedes 71100-74421-H0i201302-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY FAB/ODIAS,TRIM7#; SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74440-H1i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAYFAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74441-H0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAYFAB/ODIAS,TRIM7#
main71100-74450-H1i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74451-H0i201302-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74460-H1i201205-201301
DK.GRAY FAB/ODIAS,TRIM7#; REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74470-H1i201205-201301
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
main71100-74471-H0i201302-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONTSEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY FAB/ODIAS,TRIM7#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-74060i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)); SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71511-74070i201205-201405
main71511-74010i200811-201005
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-74010i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)); SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71551-74020i201205-201405
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-74011i201205-201405
main71610-74010i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-74010i200811-200812
main71630-74020i200811-200812
main71630-74021i200812-201405
main71630-74030supersedes 71630-74011i201205-201405
main71630-74012i201205-201305
SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)
71811DSHIELD, FRONT SEAT CUSHION, RH
main71805-74010-C0supersedes 71811-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
main71811-74010-C0i200811-201001
BLACK,TRIM1#,4#,5#,7#
71821ACLIP (FOR FRONT SEAT SIDE SHIELD)
main90467-09087-22×2i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#; SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#,5#,7#,9#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71806-74010-C0supersedes 71861-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
main71861-74010-C0i201001-201305
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,9#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-74020-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-74020i200811-201405
main72010-74032supersedes 72010-74010i201205-201405
main72010-74010i201205-201305
SEAT COVER MATERIAL-FABRIC&FRONT SEAT SLIDE-WITHOUT(SEAT LIFTER)
main72010-74031i200911-201001
REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))
72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-74010×2i200811-201405
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-74010i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)); SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER)
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
72525BHANDLE, RECLINING ADJUSTER RELEASE, RH
main72507-74010-C0i200811-201001
BLACK,TRIM1#,4#,5#,7#
main72525-47010-C0supersedes 72507-74010-C0i201205-201405
BLACK,TRIM1#,4#,5#,7#,9#; BLACK,TRIM1#,7#,9#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-74030supersedes 73910-74051i200811-201301
main73910-74031i201302-201405
main73910-74051supersedes 73910-74031i201305-201405
main73910-74050i201001-201005
FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER); REAR SEAT-WITH PERFORMANCE ROD&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER); REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER)
79977AFELT, SEATBACK
main79977-74010×2i200811-200812
main79977-74011×2i200812-201010
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-74020i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT HEATER-WITH(DRIVER & PASSENGER)
main87510-74040i201005-201305
REAR SEAT-WITH PERFORMANCE ROD&SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)); SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-74020i201205-201405
SEAT COVER MATERIAL-FABRIC(HEADREST-W(HOLE))&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER); SEAT HEATER-WITH(DRIVER & PASSENGER)
main87530-74040i201305-201405
SEAT COVER MATERIAL-LEATHER
7247674010SCREW, HORIZONTAL JACK, INNER
main72476-74010
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9161261055
main91612-61055
9326955010
main93269-55010
9417060600
main94170-60600
9418560600
main94185-60600

31 parts on this diagram · 9 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
