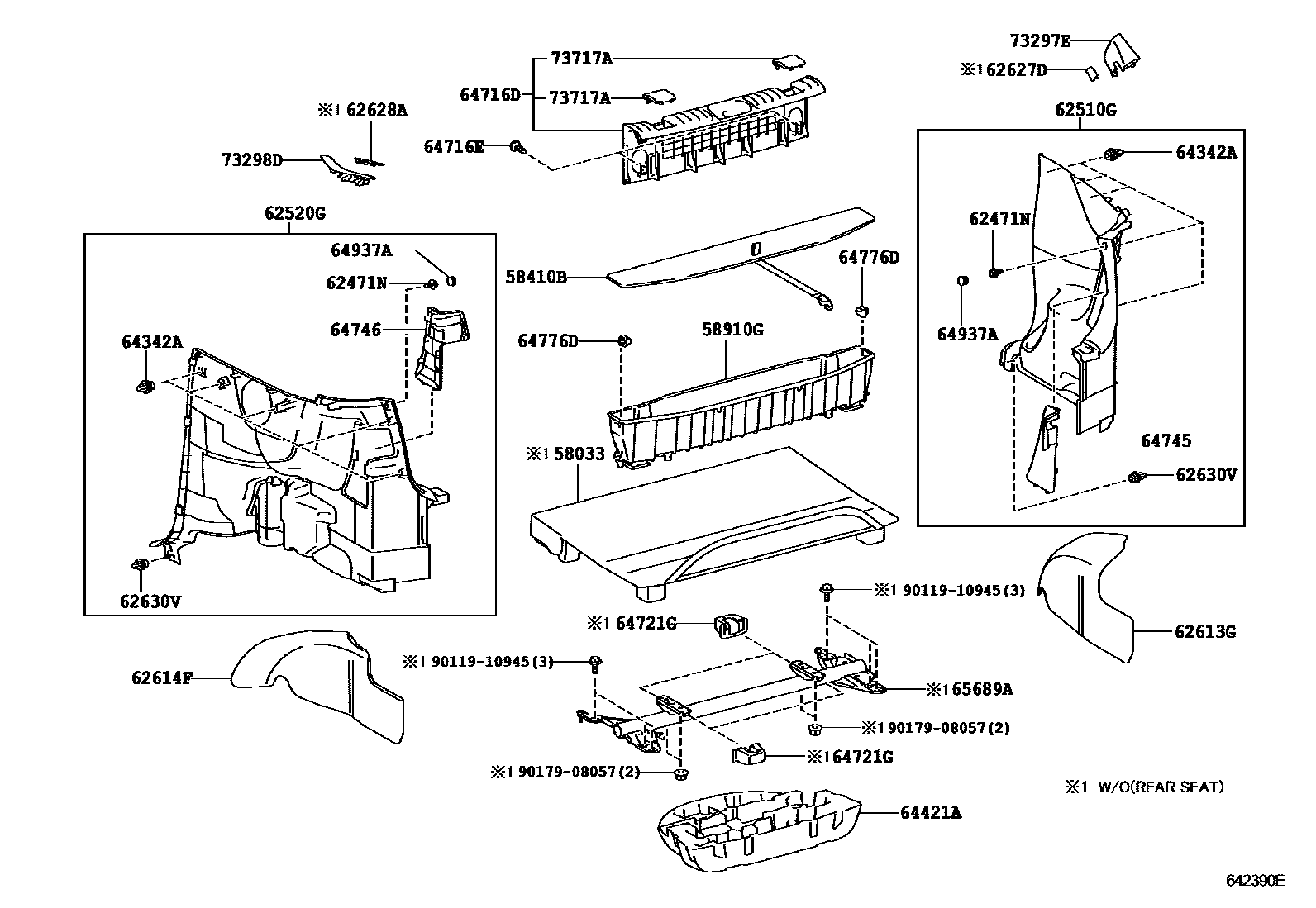

DECK BOARD & DECK TRIM COVER

58033BOARD SUB-ASSY, REAR FLOOR

main73505-74010

58410BBOARD ASSY, DECK

main58410-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main58410-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main58410-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

58910GBOX ASSY

main64070-74010iKGJ10,NGJ10,NUJ10200811-201211

main64070-74020iKGJ10,NGJ10201212-201405

62471NFASTENER(FOR REAR PILLAR GARNISH)

main64949-74020iKGJ10,NGJ10,NUJ10200811-201405

62510GTRIM ASSY, SIDE NO.1, RH

main62510-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main62510-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main62510-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

62520GTRIM ASSY, SIDE NO.1, LH

main62520-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main62520-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main62520-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

62613GCOVER ASSY, QUARTER WHEEL HOUSE, RH

main62610-74010iKGJ10,NGJ10,NUJ10200811-201102

sub62610-74020

main62610-74020iKGJ10,NGJ10,NUJ10201102-201405

62614FCOVER ASSY, QUARTER WHEEL HOUSE, LH

main62620-74010iKGJ10,NGJ10,NUJ10200811-201102

sub62620-74020

main62620-74020iKGJ10,NGJ10,NUJ10201102-201405

62627DCOVER, SIDE TRIM, RH

62628ACOVER, SIDE TRIM, LH

62630VCLIP (FOR QUARTER REAR TRIM)

main90467-09224iKGJ10,NGJ10,NUJ10200811-201405

64342ACLIP

main90467-10161iKGJ10,NGJ10,NUJ10200811-201405

64421ATRAY, LUGGAGE COMPARTMENT

main64421-74011iKGJ10,NUJ10200811-200904

main64421-74012iKGJ10,NGJ10,NUJ10200904-201005

sub64421-74013

main64421-74013iKGJ10,NGJ10,NUJ10201005-201405

64716DCOVER, DECK TRIM, REAR

main64716-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

sub64716-74010

main64716-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

sub64716-74010

main64716-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

sub64716-74010

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08186-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

sub90467-08186

main90467-08186-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

sub90467-08186

main90467-08186-E5iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

sub90467-08186

64721GCOVER, DECK TRIM, NO.1

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main64745-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main64745-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main64746-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main64746-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

64776DKNOB, SPARE WHEEL COVER

main64776-52020iKGJ10,NGJ10,NUJ10200811-201405

64937ACAP, TONNEAU COVER HOLDER, NO.1

main64937-74010iKGJ10,NGJ10,NUJ10200811-201405

65689ABRACKET

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main73297-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main73297-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main73298-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

main73298-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#,RH

sub73717-74010

main73717-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#,RH

sub73717-74010

main73717-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#,RH

sub73717-74010

main73717-74020-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#,LH

sub73717-74020

main73717-74020-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#,LH

sub73717-74020

main73717-74020-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#,LH

sub73717-74020

9011910945

main90119-10945

9017908057

main90179-08057

26 parts on this diagram · 1 diagram in section
