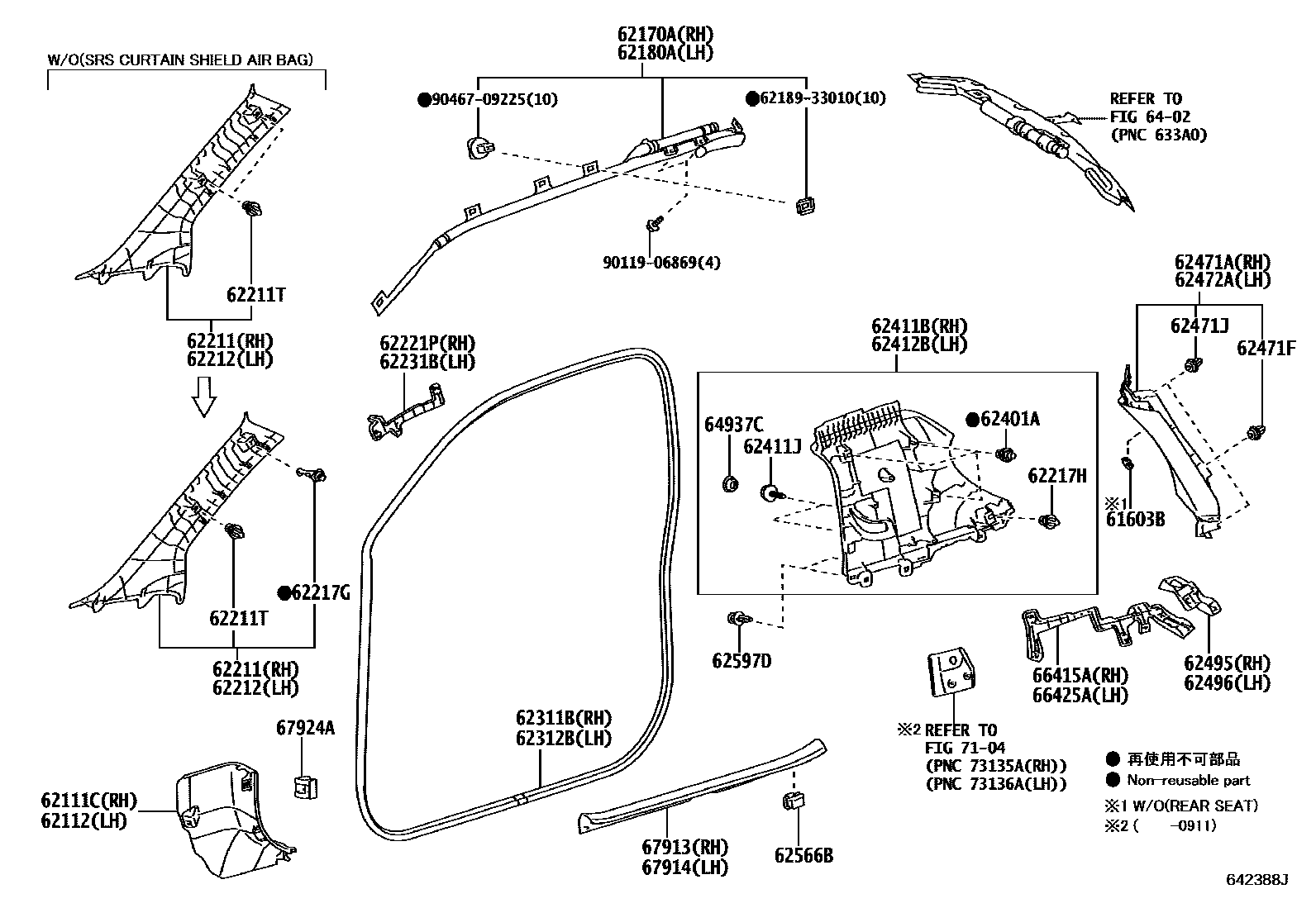

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61603BGROMMET, SEAT BELT ANCHOR

62111CBOARD, COWL SIDE TRIM, RH

main62111-74010-C0iKGJ10..RHD;NGJ10..RHD..N201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

sub62111-74011

main62111-74010-C0iNGJ10..RHD..R201205-201405

BLACK,TRIM1#,7#,9#

sub62111-74011

main62111-74010-E0iKGJ10,NGJ10,NUJ10..RHD200811-201005

PLUM,TRIM4#,5#

sub62111-74011

main62111-74020-C0iNGJ10..LHD..R201205-201405

BLACK,TRIM1#,7#,9#

main62111-74020-C0iNGJ10..LHD..N;KGJ10,NUJ10..LHD201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main62111-74020-E0iKGJ10,NGJ10,NUJ10..LHD200811-201005

PLUM,TRIM4#,5#

62112BOARD, COWL SIDE TRIM, LH

main62112-74020-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main62112-74020-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main62112-74020-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-74020iKGJ10,NGJ10,NUJ10200811-201301

sub62170-74021

main62170-74021iKGJ10,NGJ10201302-201401

sub62170-74051

main62170-74051iKGJ10,NGJ10..5F,CVFC201401-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

main62170-74051iKGJ10,NGJ10201401-201405

REAR SEAT-WITHOUT

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-74020iKGJ10,NGJ10,NUJ10200811-201301

sub62180-74021

main62180-74021iKGJ10,NGJ10201302-201401

sub62180-74050

main62180-74051iKGJ10,NGJ10201401-201405

REAR SEAT-WITHOUT

main62180-74051iKGJ10,NGJ10201401-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

62211GARNISH, FRONT PILLAR, RH

main62211-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62211-74010-B0iNUJ10..RHD200811-201003

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7#

main62211-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main62211-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7#,9#

main62211-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iKGJ10200811-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

main90467-10161iKGJ10,NGJ10,NUJ10200811-201405

REAR SEAT-WITHOUT

62212GARNISH, FRONT PILLAR, LH

main62212-74010-B0iNUJ10..RHD200811-201003

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7#

main62212-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62212-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main62212-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7#,9#

main62212-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52050iKGJ10,NGJ10,NUJ10200811-201405

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

62217HCLIP, CENTER PILLER GARNISH

main90467-10161iKGJ10,NGJ10,NUJ10200912-201405

main90467-10188iKGJ10,NGJ10,NUJ10200811-200912

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-74010iKGJ10,NGJ10,NUJ10200811-201405

62231BSPACER, FRONT PILLAR, NO.1 LH

main62231-74010iKGJ10,NGJ10,NUJ10200811-201405

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-74010iKGJ10,NGJ10,NUJ10200811-201405

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-74010iKGJ10,NGJ10,NUJ10200811-201405

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main63395-12150iKGJ10,NGJ10,NUJ10200811-201405

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62411-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main62411-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

62411JFASTENER(FOR CENTER PILLAR GARNISH)

main64949-74010iKGJ10,NGJ10,NUJ10200811-201405

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

main62412-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62412-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62471-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main62471-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161iKGJ10,NGJ10,NUJ10200811-201405

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167iKGJ10,NGJ10,NUJ10200811-201405

62472AGARNISH, ROOF SIDE, INNER LH

main62472-74010-B0iNUJ10..RHD200811-201003

GRAY,TRIM1#,4#,5#,7#

main62472-74010-B0iKGJ10;NGJ10..N;NUJ10..LHD200811-201405

GRAY,TRIM1#,4#,5#,7#,9#

main62472-74010-B0iNGJ10..R201205-201405

GRAY,TRIM1#,7#,9#

62495SPACER, ROOF SIDE INNER GARNISH, RH

main62495-74010iKGJ10,NGJ10,NUJ10200811-201011

main62495-74020iKGJ10,NGJ10,NUJ10201011-201405

62496SPACER, ROOF SIDE INNER GARNISH, LH

main62496-74010iKGJ10,NGJ10,NUJ10200811-201011

main62496-74020iKGJ10,NGJ10,NUJ10201011-201405

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iKGJ10,NGJ10,NUJ10200811-201405

62597DCLIP

main65487-74010iKGJ10,NGJ10,NUJ10200811-201405

6402

64937CCAP, TONNEAU COVER HOLDER, NO.1

main64937-74010iKGJ10,NGJ10,NUJ10200811-201405

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-74010iKGJ10,NGJ10,NUJ10200811-201405

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-74010iKGJ10,NGJ10,NUJ10200811-201405

67913PLATE, FRONT DOOR SCUFF, RH

main67913-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main67913-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main67913-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

main67914-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main67914-74010-E0iKGJ10,NGJ10,NUJ10200811-201005

PLUM,TRIM4#,5#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iKGJ10,NGJ10,NUJ10200811-201405

7104

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

9011906869

main90119-06869

9046709225

main90467-09225

37 parts on this diagram · 1 diagram in section
